Details

grinding length:

2500 mm

grinding width:

800 mm

workpiece height:

800 mm

Table movement horizontal:

Längshub: 2700 mm

Table movement horizontal:

Querhub: 800 mm

table speed:

längs: 1 - 35 / quer: 0 - 3 m/min

feed:

vertical: 0,001 / quer: 0,0025 mm/Hub

magnetic plate size:

2500 x 800 mm

Automatic grinding wheel feed:

0,001 mm

distance table - spindle center:

900 mm

grinding spindle speed:

k.A. U/min

dimensions of grinding wheel:

400 x 76 x 127 mm

total power requirement:

36 kW

weight of the machine ca.:

13,5 t

dimension machine approx.LxWxH:

7,5 x 2,8 x 2,7 m

dimension coolant device LxWxH:

1,8 x 1,0 x 0,92 m

dimensions of hydaulic:

1900 x 800 x 1500 mm

transport measurements machine:

L: 8,0 x B: 2,4 x H: 2,85 m

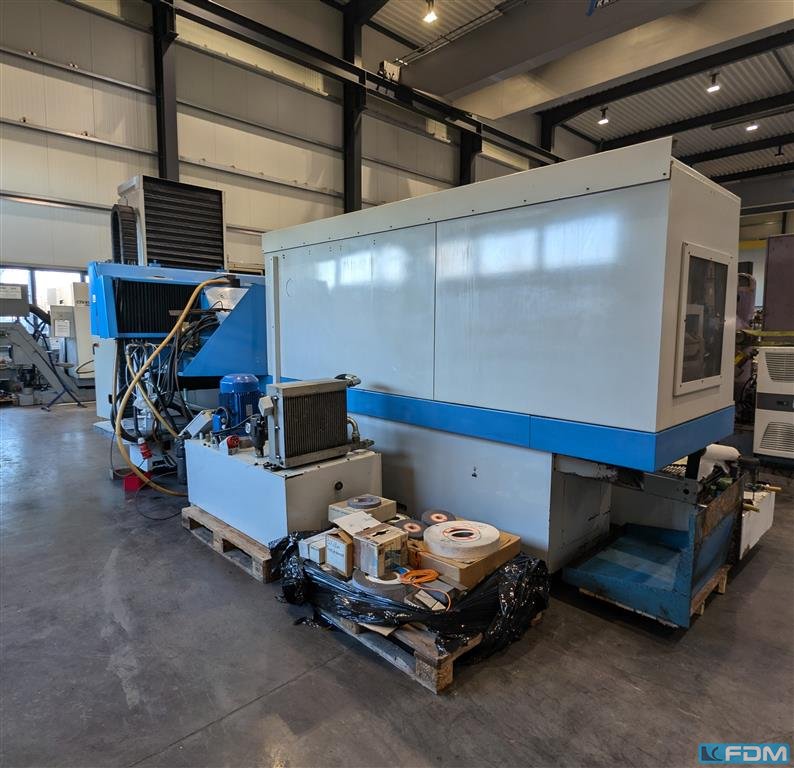

Description

The machine is currently in the technical department.
technical features:
-Hydraulic unit
-dressing device
