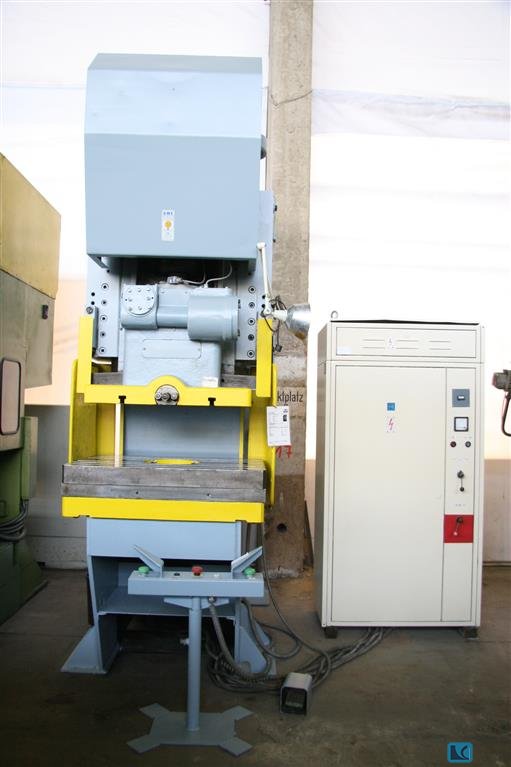

Eccentric Press - Single Column
WMW BLEMA-GOTHA PEE II 160
- Stock number:
- 1087-0700176
- Year / Condition:
- 1974 UVV / Used
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- Pressure:
- 160 t
- slide stroke:
- 32...140 mm
- no. of strokes:
- 50 Hub/min
- throat:
- 400 mm
- dayligth:
- 400 mm
- adjustment of ram slide:
- 100 mm
- table-size:
- 1000x750 mm
- ram surface area:
- 850x630 mm
- tool shank hole:
- 400x360 mm
- total power requirement:
- 15,5 kW
- weight of the machine ca.:
- ca. 10,5 t
- dimensions of machine:
- L:2,9xB:1,25xH:3,3 mm
- dimension L-W-H:

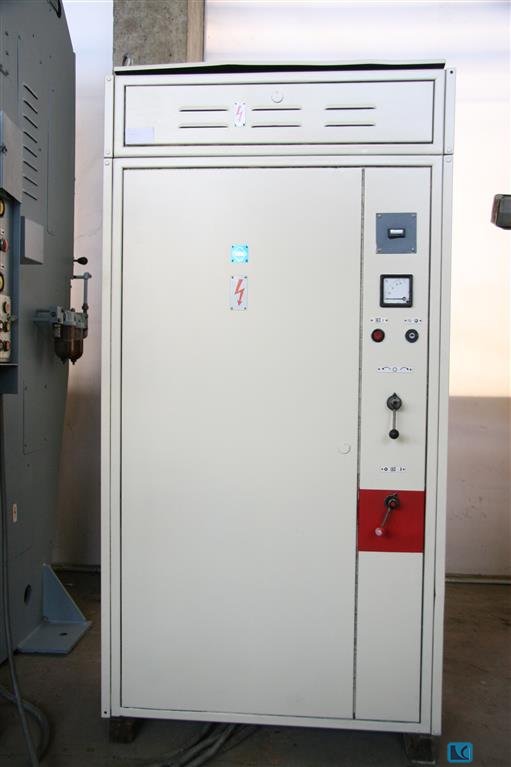

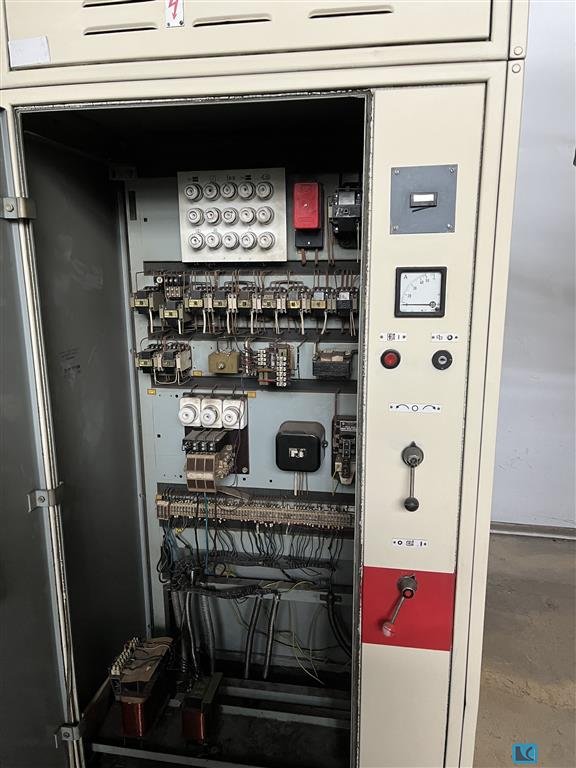

- E-Schrank 1,06x0,6x2,0 mm
Description
- single and /or continuous stroke possible
- 80A; Air pressure 6kp/cm²; Oil filling approx.30 Liter
- 2 clamping plates (1200x760x90mm and 1200x760x70mm faucet hole dia=300mm)
- foot control or manual via hand possible
- last check record was 2006
can be demonstrated under power!
i.D.
