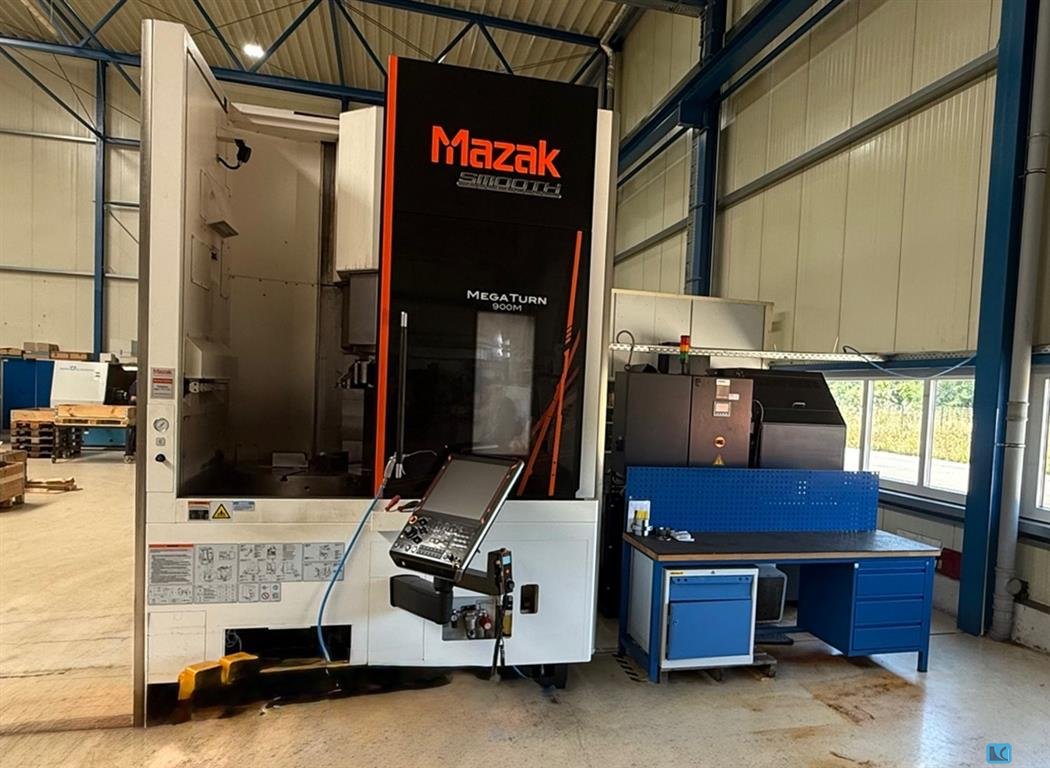

CNC Turning- and Milling Center
MAZAK Megaturn 900M
- Stock number:
- 1087-0300727
- Year / Condition:
- neuwertig / Used
- Control unit:
- CNC (Mazatrol Smoothg)
- Country of origin:
- Japan
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- DVW
- Delivery time:
- by agreement
Picture / documents / videos
Technical specs
Details

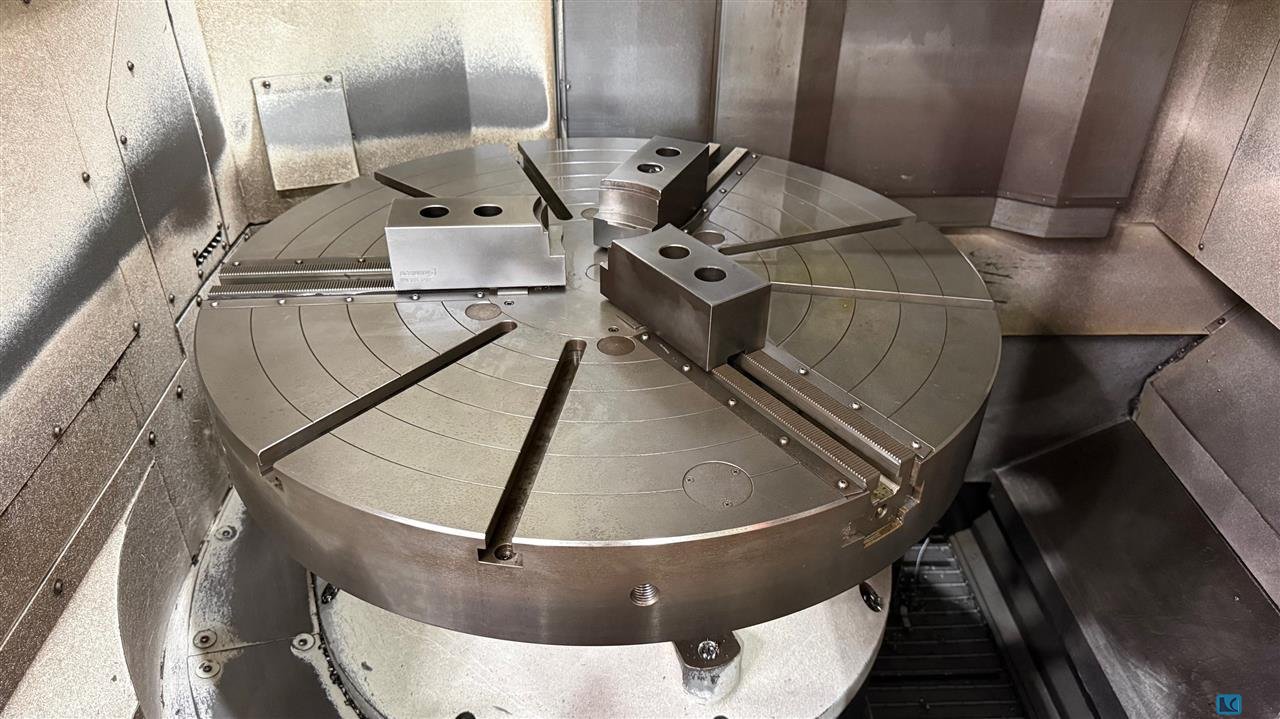

- table diameter:
- 920 mm
- swing diameter:
- 1000 mm
- turning diameter:
- 900 mm
- workpiece height max.:
- 800 mm
- operating hours:
- 2151 h
- milling spindle operating time:
- 2 h
- turning spindle switch on :
- 709 h
- control:

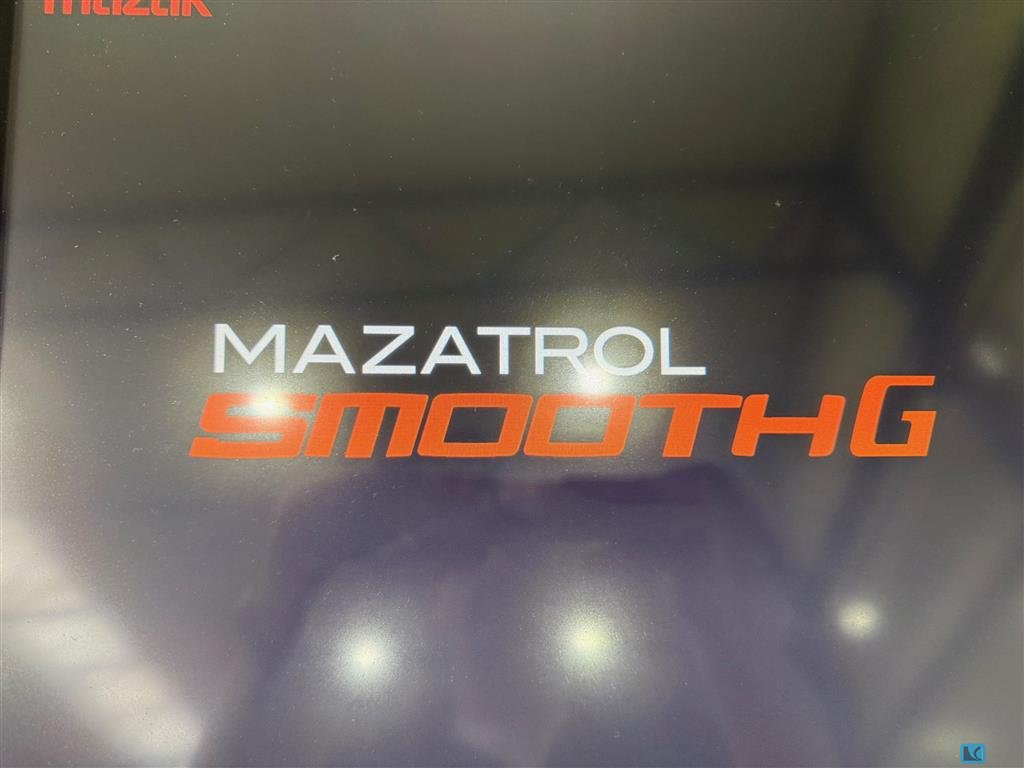

- Mazatrol Smoothg
- x-axis:
- 470 mm
- z-axis:
- 876 mm
- c-axis:
- 20 m/min
- tool holder / places:
- 12
- revolution per minute:
- Revolver 4000 U/min
- workpiece weight:
- 3000 kg
- rapid power traverse in X-and Z direction:
- 24 m/min
- weight of the machine ca.:
- 14 t
- dimension machine approx.LxWxH:
- 3989 x 2375 x 3400 mm
Description
rarely used as good as new
·Removable handwheel (cable version)
·Overload monitoring system
·Additional flushing system for the enclosure
·Europe interface 70 bar

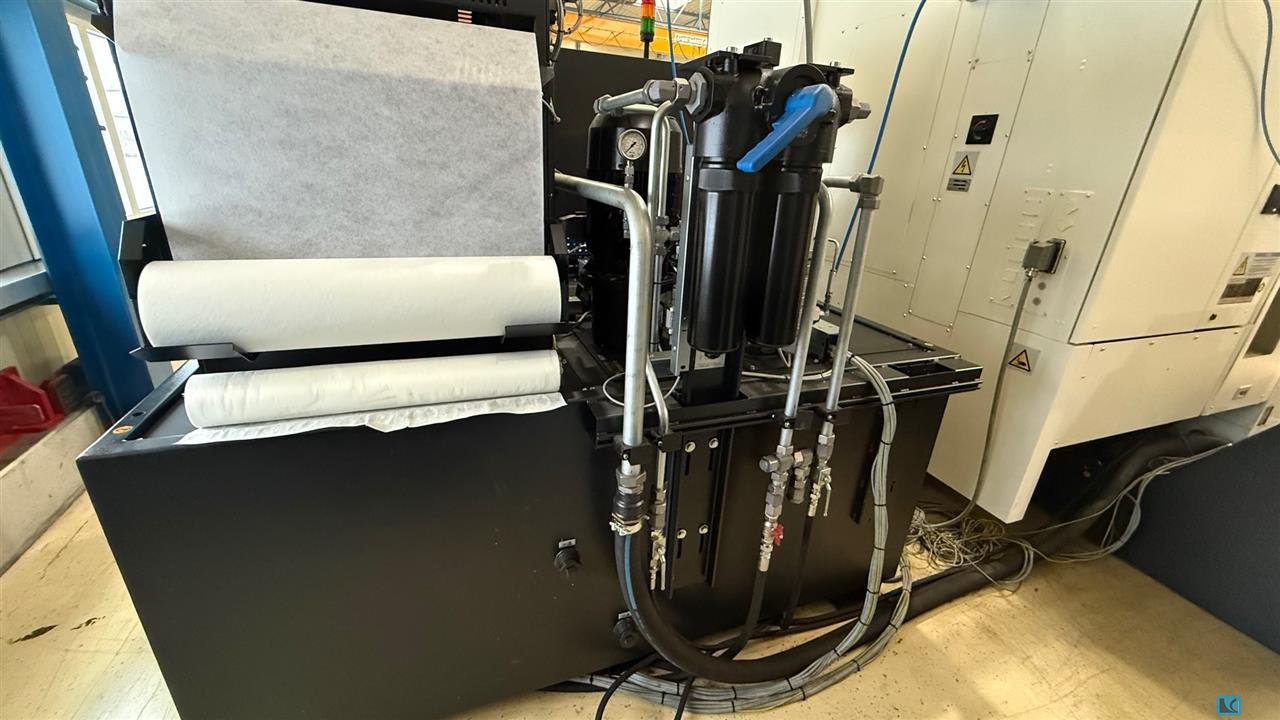

·Knoll compact filtration system KF 400, 70 bar with 7 pressure stages and hinge belt conveyor, incl. installation
·Preparation for oil mist extraction, mechanical, flange 123 mm
·36" 3-jaw chuck Kitagawa NV36C15
·Renishaw touch probe RLP 40Q incl. preparation

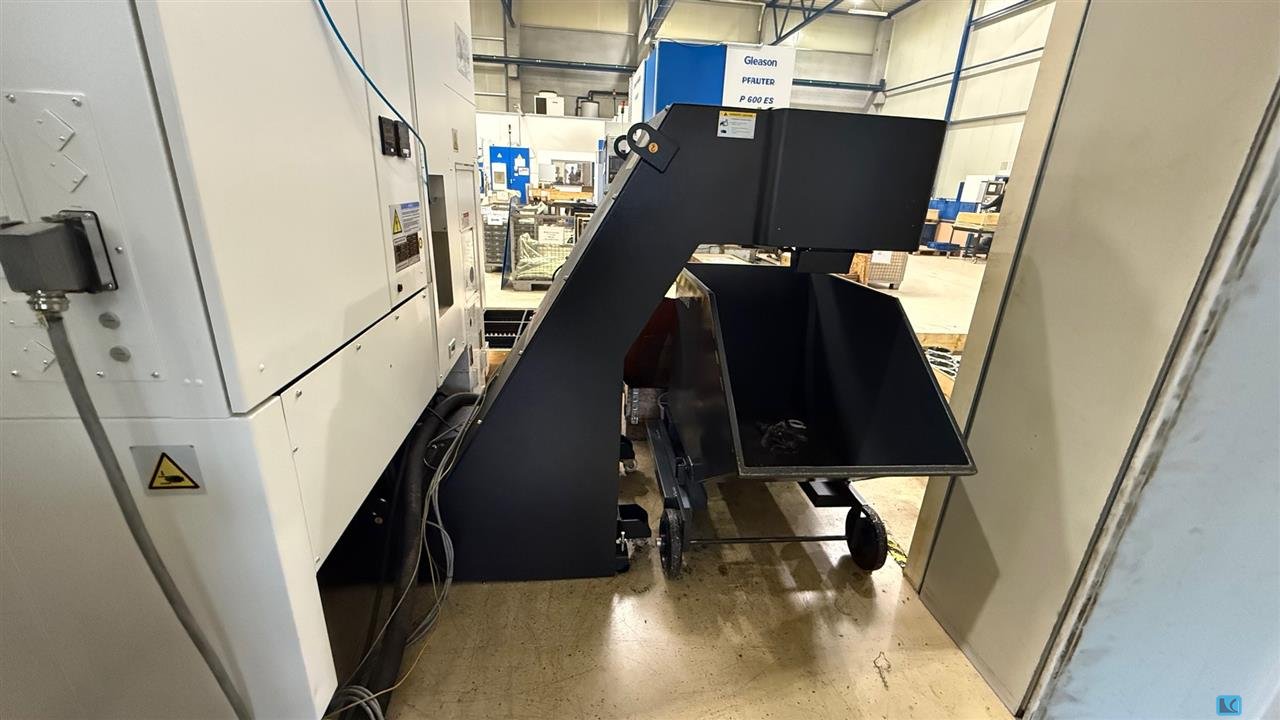

·Preparation for chip conveyor (hinge belt, rear)
·Mazak API
·MT Connect adapter
·Drilling cycle with torque-dependent chip breaking
·Engraving function
·Thread re-cutting function
