Details

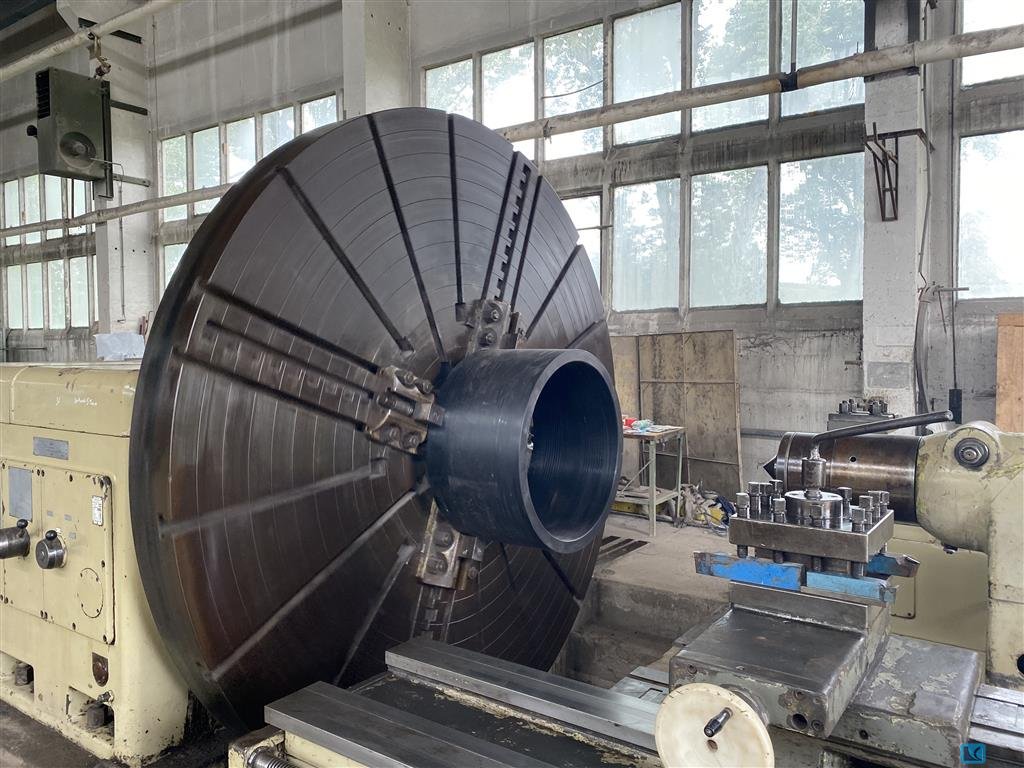

faceplate diameter:

3150 mm

working area:

Ø 4000 mm

centre distance:

8000 mm

center height:

2240 mm

spindle bore:

100 mm

revolution per minute:

1,4 ... 71 U/min

max. torque on the spindle:

6300 kpm / ca. 61.781 Nm kpm / Nm

feed range:

plan+längs: 0,355 ... 31,5 / 14 step / R20/3 mm/min

rapid traverse speed:

2,0 m/min

tailstock quill taper MT:

Größe 100

tailstock travel:

400 mm

max. workpiece weight between centres:

20.000 kg

max. workpiece weight -without tailstock:

8.000 kg

main drive motor:

34 kW

weight of the machine ca.:

44,1 t

space requirements approx. LxWxH:

8,0 x 4,7 x 2,72 m

Description

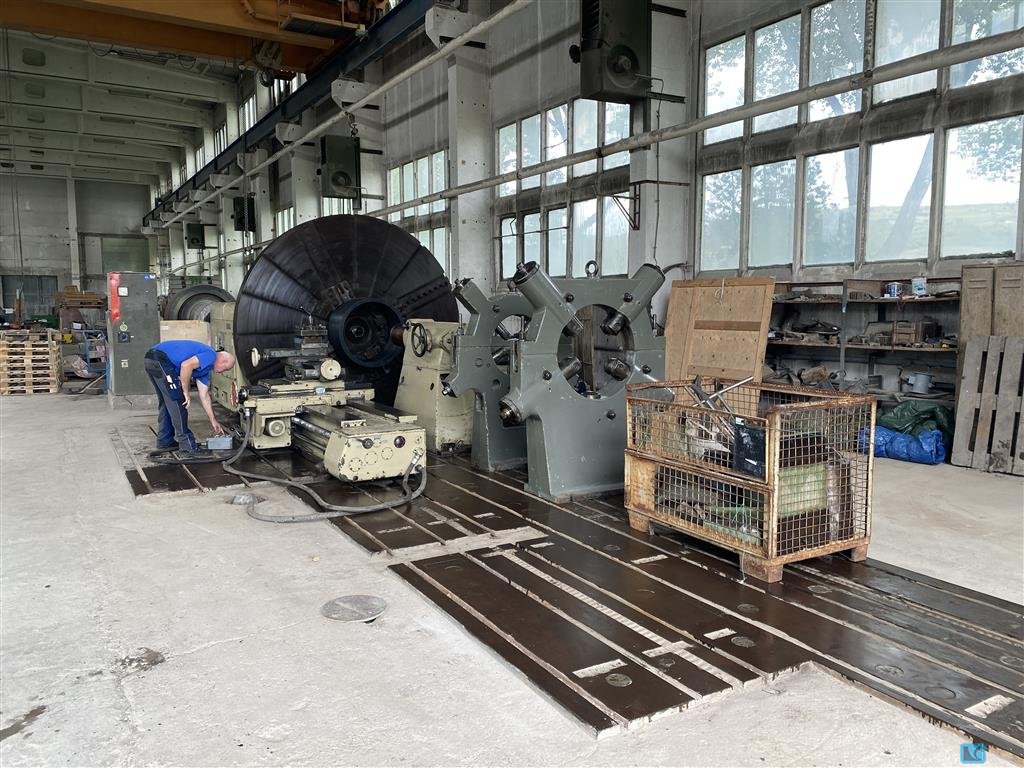

Delivery consists of the following components:

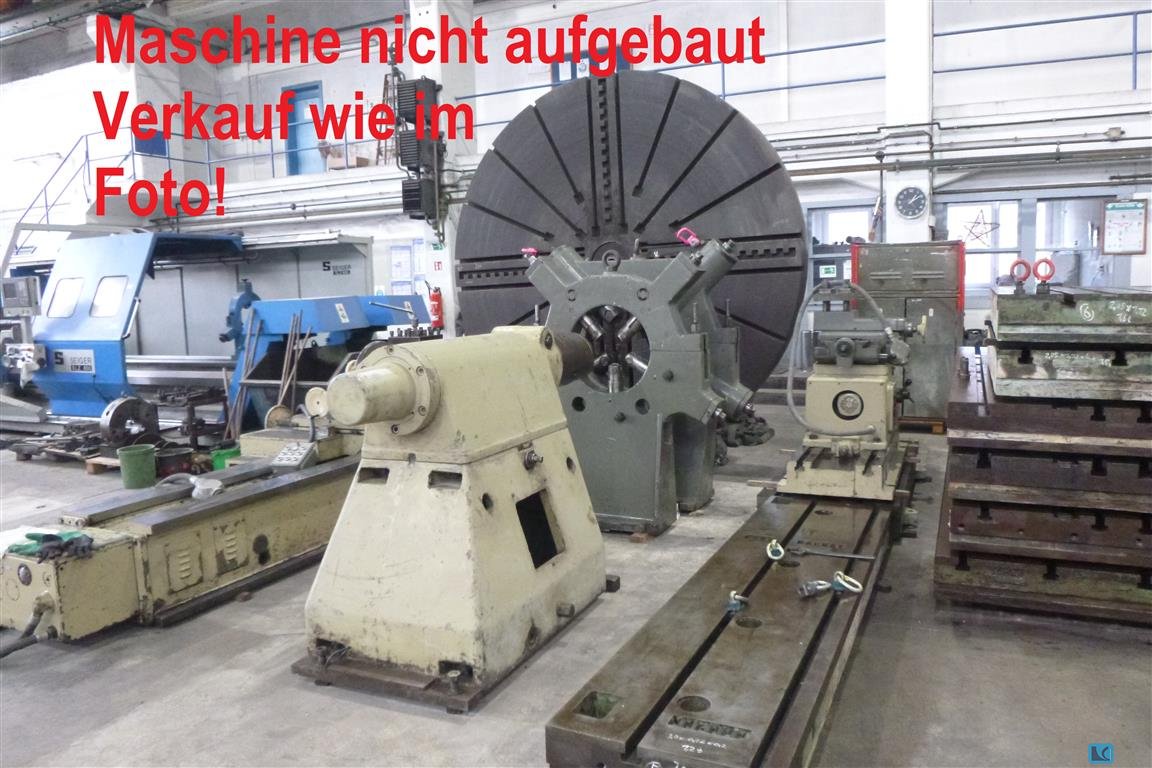

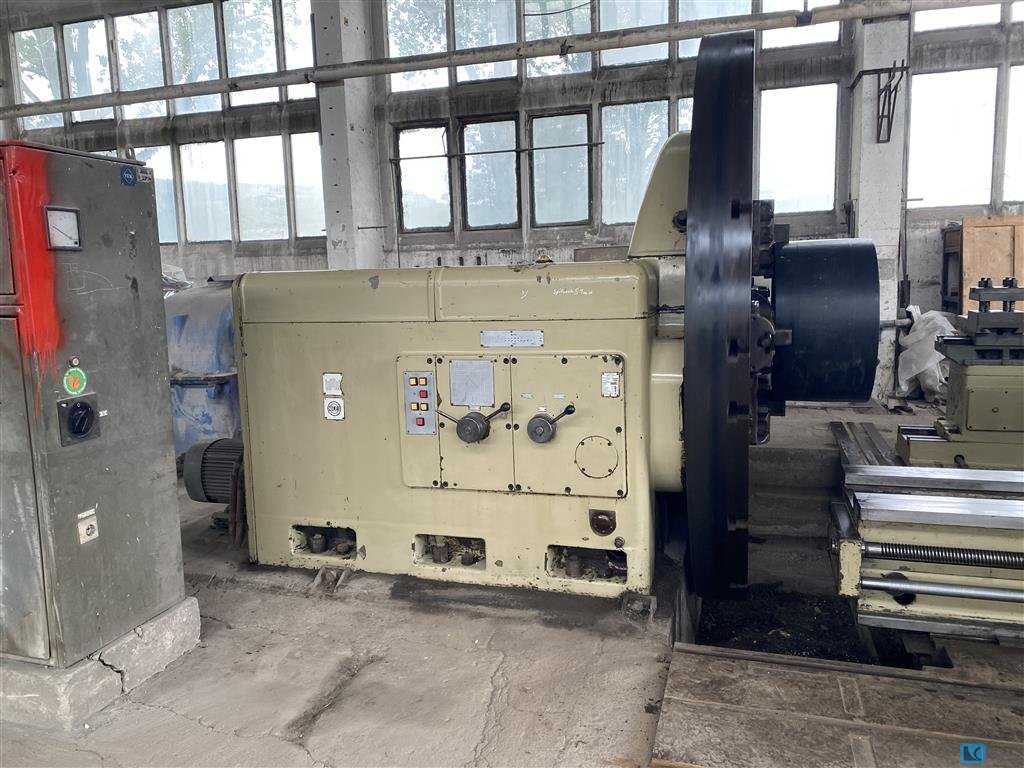

Headstock with faceplate and main drive
2x support

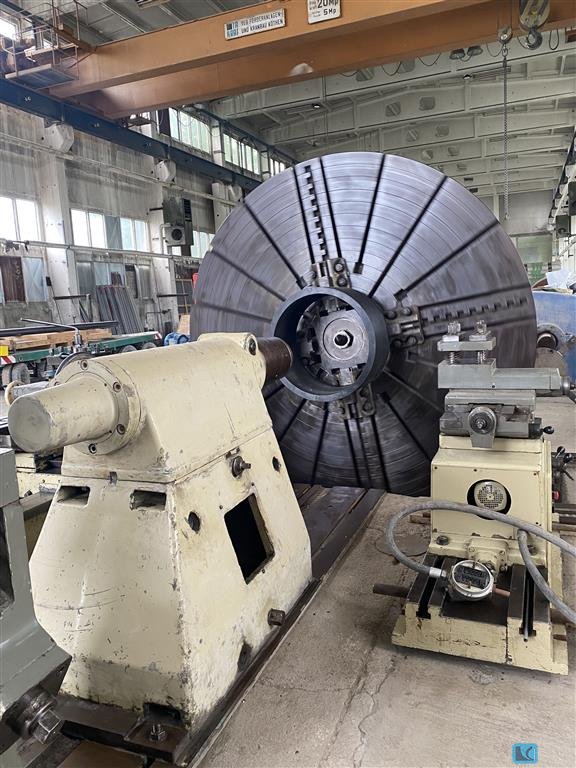

Tailstock
Plate fields (3x3.0 meters in a row and 4 additional plate fields)
1x steady rest Ø approx. 350mm
1x steady rest Ø approx. 650mm
Support travel (large) X=550mm and X0=220mm / Z=2600mm and Z0=400mm
Support travel (small) X=170mm and Z=340mm
i.D.
