Details

bore capacity in steel (diameter):

32 mm

throat:

293 mm

bore stroke:

120 mm

bore capacity in cast iron:

Ø 38 mm

spindle taper MT:

MK 3

spindle throat:

293 mm

spindle speed::

160 - 2250 / seples U/min

feed:

0,10 - 0,20 / manuell+automatisch mm/U

Distance spindle/table max.:

55 - 642 mm

table clamping surface::

300 x 300 mm

drill table adjustment:

ja mm

column diameter:

115 mm

distance spindle center to floor plate::

1207 mm

total power requirement:

1,9 kW

weight of the machine ca.:

280 kg

dimension machine approx.LxWxH:

0,7 x 1,0 x 1,9 m

Description

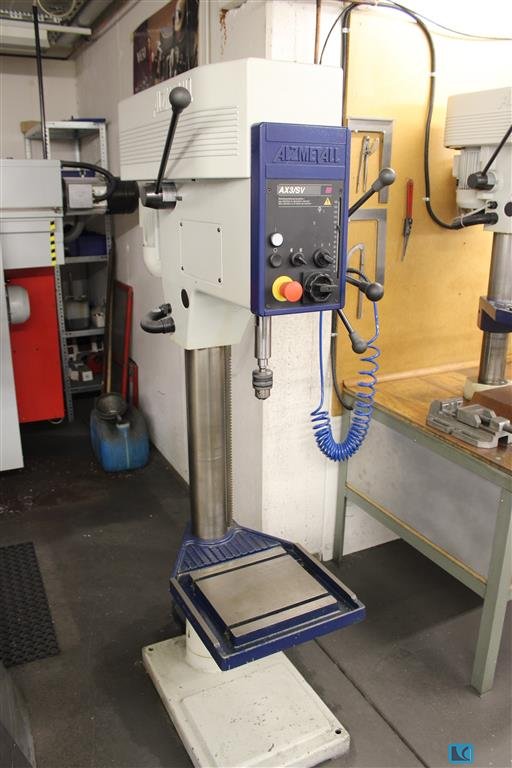

Column drilling machine with infinitely variable speed adjustment and automatic feed.
Tapping with changeover switchEquipment: RÖHM 3 - 16 mm chuck, operation by foot switch left/right
