Details

x-Travel:

600 mm

table cross travel (Y-axis):

500 mm

w-axis:

250 mm

x-travel:

600 mm

y-travel:

500 mm

z-travel:

350 mm

drilling depth in one stroke:

600 mm

number of spindle speeds:

300 - 6000 /100 - 1600 U/min

drill capacity in steel:

3 - 25 mm

table surface area:

900 x 500 mm

table load:

2000 kg

connected load:

10 kVA

weight of the machine ca.:

4 t

dimension machine approx.LxWxH:

2,0 x 2,8 x 1,9 m

Description

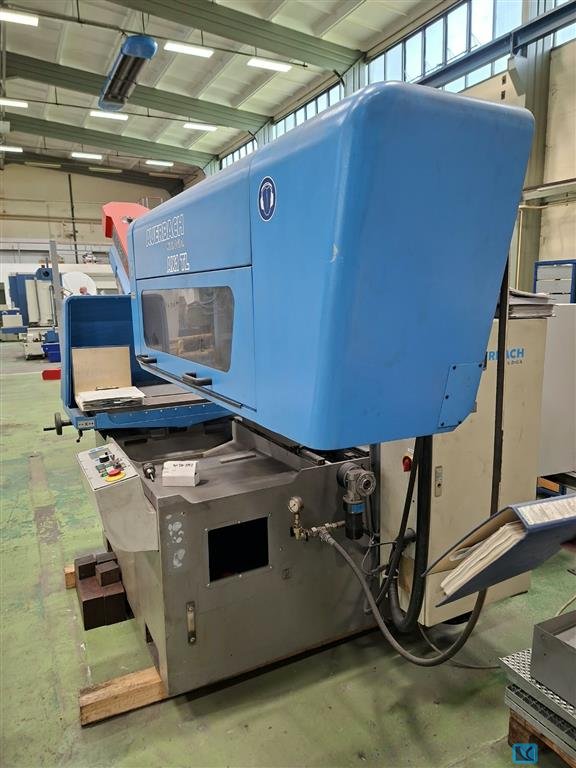

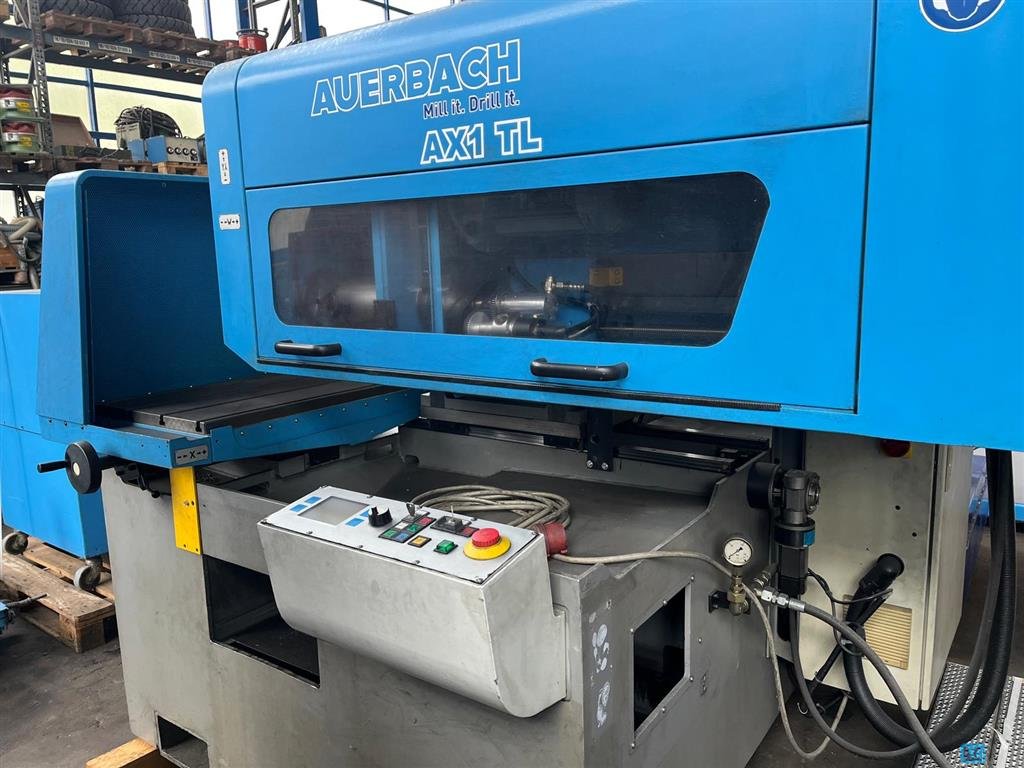

The AUERBACH IXION AX1-TL is an industrial CNC deep-hole drilling machine designed for the precise machining of workpieces, particularly for producing deep holes with small to medium diameters.
The machine is equipped with a powerful high-pressure coolant system and is designed for deep-hole drilling with single-lip carbide drills from Ø 3 to 25 mm. The coolant system has a tank capacity of 600 litres, a maximum coolant pressure of 90 bar and a maximum flow rate of 40 l/min. This ensures reliable cooling and efficient chip removal even during deep-hole drilling operations.
The worktable measures 900 × 500 mm and is designed for a maximum table load of 2,000 kg. Four longitudinal T-slots provide flexible and secure workpiece clamping.

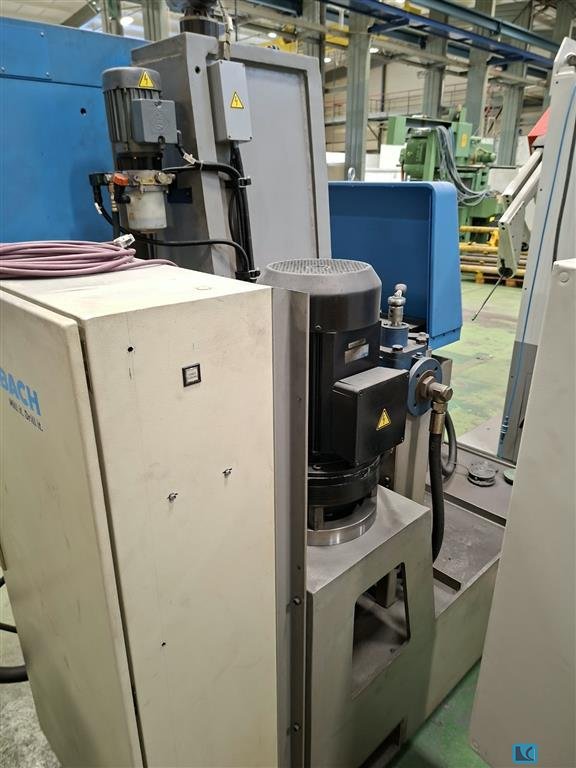

The main spindle is driven by a 4.0 kW AC motor. Two belt-driven speed ranges provide programmable spindle speeds of 300–6,000 rpm and 100–1,600 rpm, allowing the machine to be adapted to different tool diameters and machining requirements.
