Boring mills / Machining Centers / Drilling machines - Machining Center - Vertical - DMG DMC 103 V / TNC 430 (4 Achsen)Sold

Machining Center - Vertical

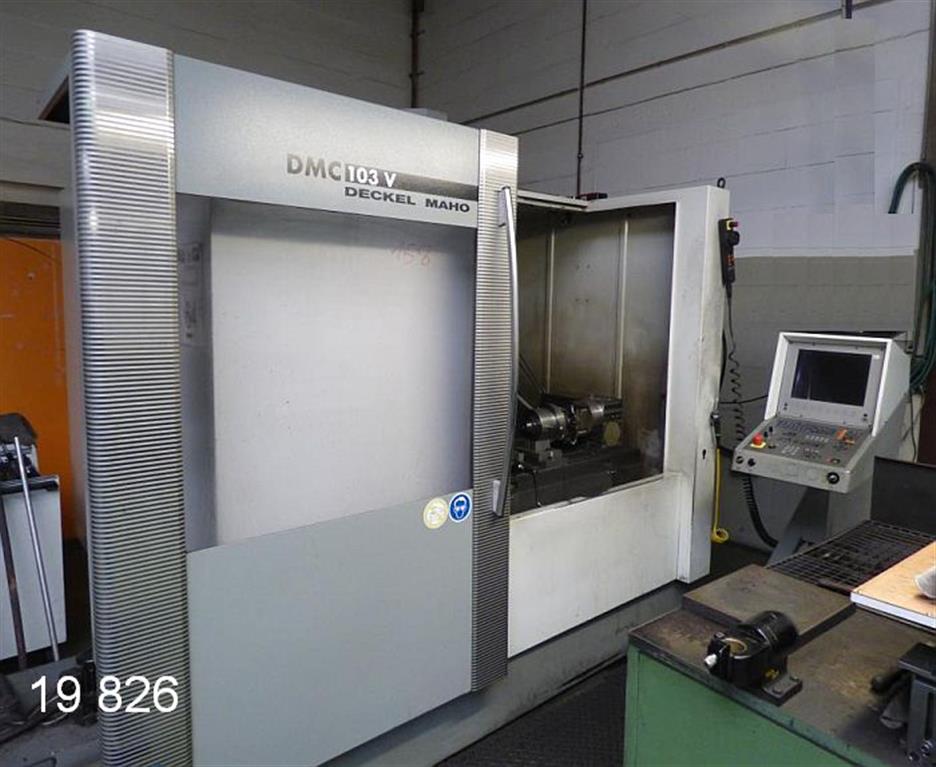

DMG DMC 103 V / TNC 430 (4 Achsen)

Stock number:
1072-19826
Year:
2002
Control unit:
CNC
Country of origin:
Deutschland

Technical specs

Details

x-travel
1000 mm
y-travel
600 mm
z-travel
600 mm
CNC-control
Heidenhain TNC 430
table-size
1200 x 600 mm
max. table load
800 kg
spindle taper ISO
40
spindle turning speed range
0 - 10.000 U/min
feed stepless
30.000 mm/min
rapid traverse
30 m/min
drive capacity - spindle motor
13 / 9 kW
tool change unit
24 Pos.
coolant

voltage
380 V
total power requirement
35 kVA
weight of the machine ca.
6,5 t
dimensions of the machine ca.
3,40 x 2,80 x 2,40 m
chip conveyor
3,65 x 1,10 x 1,20 m
Control unit
CNC
