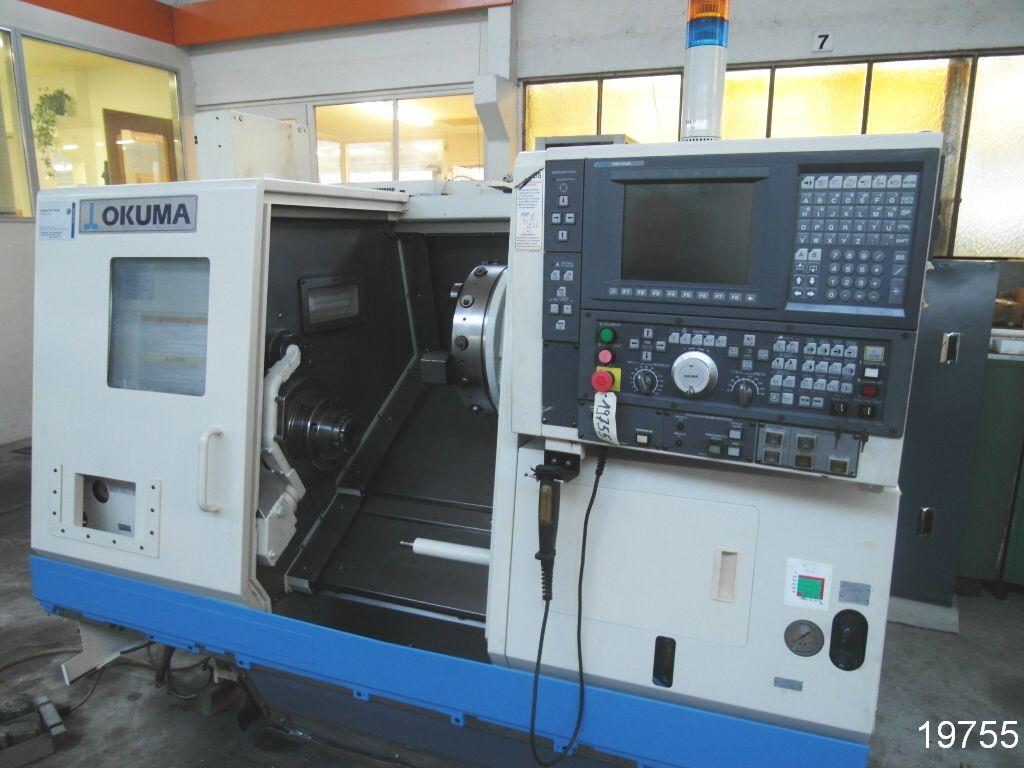

Details

turning diameter

300 mm

turning length

500 mm

control

OSP-U 100L

swing diameter

530 mm

68 mm

travel -x axis

260 mm

travel -z axis

520 mm

spindle nose

JIS A2-6

spindle speed:

45 - 4500 1/min

rapid traverse X-axis

20 m/min

rapid traverse Z-axis

25 m/min

C-Axis

360° (0,001°)

turret head

12 Pos.

tool taper

VDI 40

taper in tailstock-quill

MK 5

quill stroke

120 mm

drive capacity - spindle motor

15/11 kW

voltage

400 V

total power requirement

28,2 kVA kW

weight of the machine ca.

4,2 + 1,3 = 5,5 t

dimensions of the machine ca.

2,20 x 1,70 x 1,75  m

chip conveyor

2,60 x 0,65 x 1,40 m

Control unit

CNC

26.129 h

Accerories

bar feeder

4,60 x 0,70 x 1,40 m
