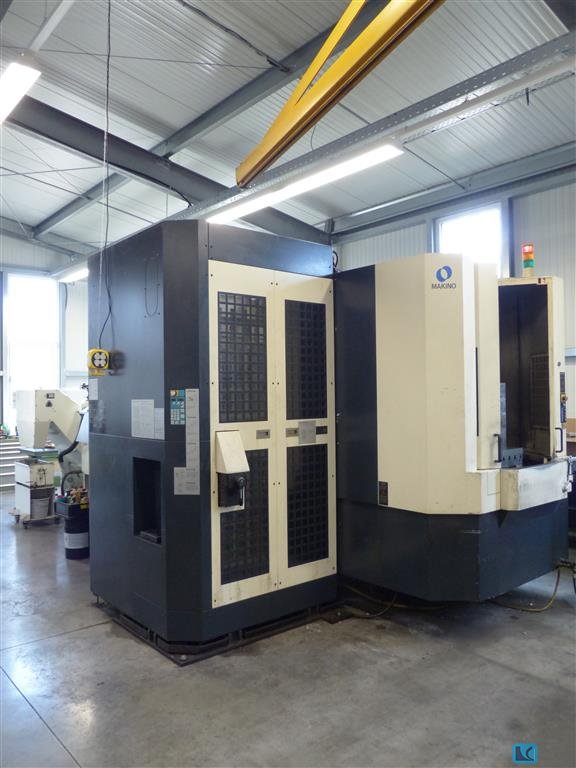

Machining Center - Horizontal
MAKINO A 61
- Stock number:
- 1070-300297
- Year / Condition:
- 2005
- Control unit:
- CNC (Fanuc 18 iM Professional 3)
- Country of origin:
- Japan
- Freight basis:
- EXW (Incoterms 2010) free loaded on truck
- Item location:
- Austria
- Delivery time:
- Immediately
Picture / documents / videos
Technical specs
Details
- x-travel:
- 730 mm
- y-travel:
- 650 mm
- z-travel:
- 730 mm
- control:
- Professional 3 (Fanuc 18i)
- turning speeds:
- 12000 1/min
- spindle drive:
- 22 kW
- Torque:
- 166 Nm
- Number of tool station:
- 132 HSK-A 63
- max. tool length:
- 360 mm
- max. tool diameter:
- 70 mm
- max. tool-dia with free toolbox:
- 140 mm
- max. tool weight:
- 12 kg
- tool changing time:
- 0,9 / 2,5 sec
- numbers of pallets:
- 2
- Pallet dimension:
- 500x500 mm
- working diameter:
- 800 mm
- table load:
- 0,7 t
- distance spindle center to table:
- 80 - 730 mm
- Distance spindle nose - pallet centre:
- 70 - 800 mm
- rapid travel x/y/z:
- 50 m/min
- Feed x/y/z:
- 50 m/min
- total power requirement:
- 65 kVA
- Dimensions (L/W/H):
- 7 x 2,5 x 3,4 mm
- weight of the machine ca.:
- 9,5 t
- Custom Macro, Number of Variables:
- 600
- program memory:
- 500 kB = 1280 m
Accerories
- Chip conveyor
- Signal lamp 3 colors
- Coolant through spindle 30 bar:
- 30 l/min
- Rotoclear window
- Tool breakage control in magazine
- High speed countour control
- No. of tool offset pairs:
- 99
Description
This very solid Makino A 61 has a full B-axis, coolant through spindle 30 bar.
