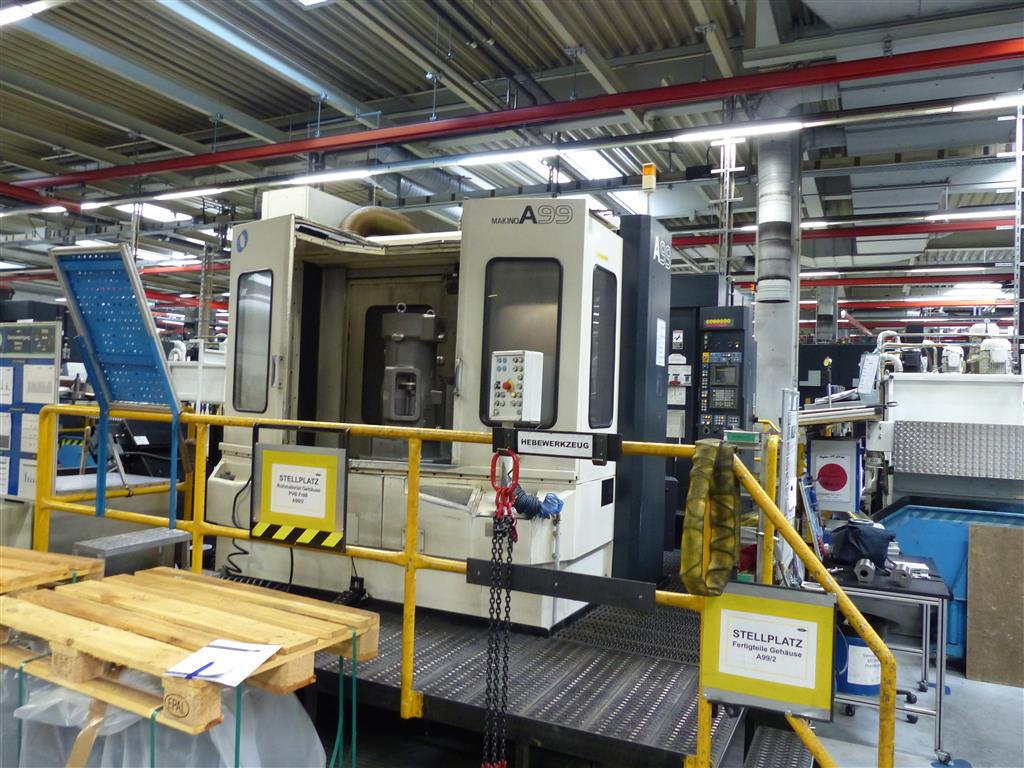

Details

x-travel

1000 mm

y-travel

1000 mm

z-travel

950 mm

control

Fanuc 16 iM

rapid travel x/y/z

50000 mm/min

feeds x/y/z -stepless

50000 mm/min

spindle drive

30 kW

spindle speed:

20 - 12000 1/min

max. torque on the spindle

390 Nm

size of pallet

800x800 mm

numbers of pallets

2

table load

1800 kg

working diameter

1000 mm

workpiece - installed height

1200 mm

table - indexing

360x1 °

change time of pallets

14 sec

distance spindle center to table

100 -1100 mm

Distance spindle nose - pallet centre

70-1020 mm

tool magazin:

132 x HSK-A 100

tool changing time

1 (4) sec

max. tool weight

20 kg

max. tool diameter

100-300 mm

tool length - max.

475 mm

total power requirement

74 kW

weight of the machine ca.

23 t

dimensions of the machine ca.

4,5 x 6 m

Control unit

CNC

Maker of control unit

Fanuc 16iM

90t/60t/32t

Accerories

Chip conveyor scraper type



Coolant through sp. 30/40/50/60/70 bar with filter

Knoll VRF 450/2300

Tool life management



High speed contour control



Tool breakage control in magazine



Coolant gun



Coolant fridge



Hydaulics for Jigs



Air Filter



Linear scale x/y/z-axis
