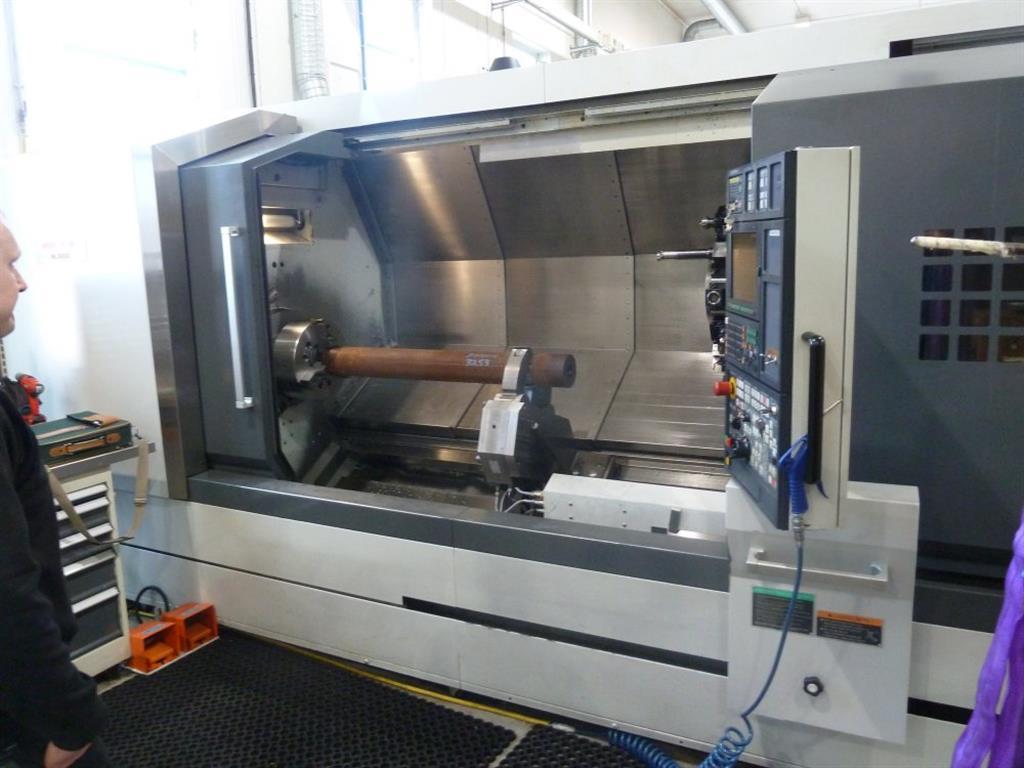

Details

turning diameter

302 mm

turning length

3123 mm

control

MSX 850 Mapps III

max. turning diameter

430 mm

bar material dia.

90 mm

swing over bed

825 mm

travel -x axis

280 mm

travel -y axis

120 (± 60) mm

travel -z axis

3170 mm

spindle drive

30/25 kW

Spindle RPM

3000 1/min

Spindle Torque

1025 Nm

turret stations / rotary tool stations

12/12

Power rotary tools

5,5 / 3,7 kW

Rotary tools RPM

6000 1/min

Programmable Tailstock



Tailstock Travel

3164 mm

tailstock quill diameter

150 mm

tailstock quill stroke

150 mm

tailstock quill taper MT

5

programmable steady

Atling LZ 100-310 mm

rapid traverse x + z axis

30 m/min

rapid traverse Y-axis

10

total power requirement

39,2 kVA

weight of the machine ca.

14 t

dimensions of the machine ca.

8,5 x 2,6 x 2,4 m

Registrered programs

400

program memory

600 MB

Control unit

CNC

Maker of control unit

MSX 850 Mapps III

Accerories

Main spindle C-axis



Power Chuck

Kitagawa B215 (380 MM)

Chip conveyor



High pressure coolant 5 bar



Interface for high pressure coolant up to

70 bar

manual tool eye



Parts and total counter



Thread re-cutting function



Circular Threading



Direct threading
