Details

turning length:

2000 mm

control:

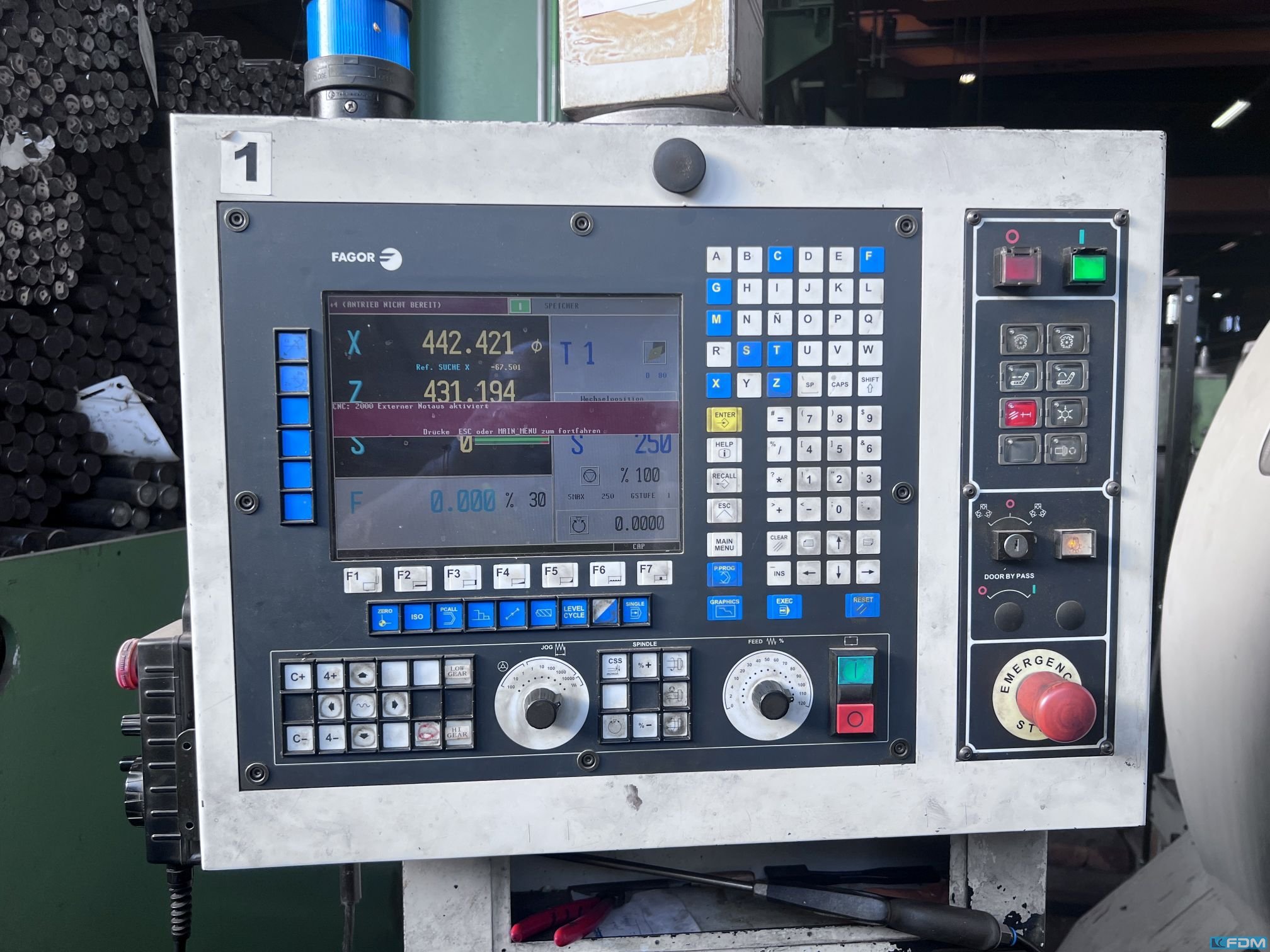

FAGOR 8055

BASIC FUNCTIONS:

.

- design principle : flatbed :

.

- number of spindles:

1

- number of x/z slides:

1

- number of turrets:

1

WORKING RANGE TURNING:

.

- lathe chuck diameter:

500 mm

- Turning diameter over bed max.:

760 mm

- Turning diameter over compound slide max.:

420 mm

- workpiece length (max):

2000 mm

- workpiece weight max.:

3000 kg

MAIN SPINDLE:

.

- spindle bore diameter:

240 mm

- spindle revolutions (min):

10 /min

- spindle revolutions (max):

1000 /min

- drive power (max):

22 kW

X/Z SLIDE:

.

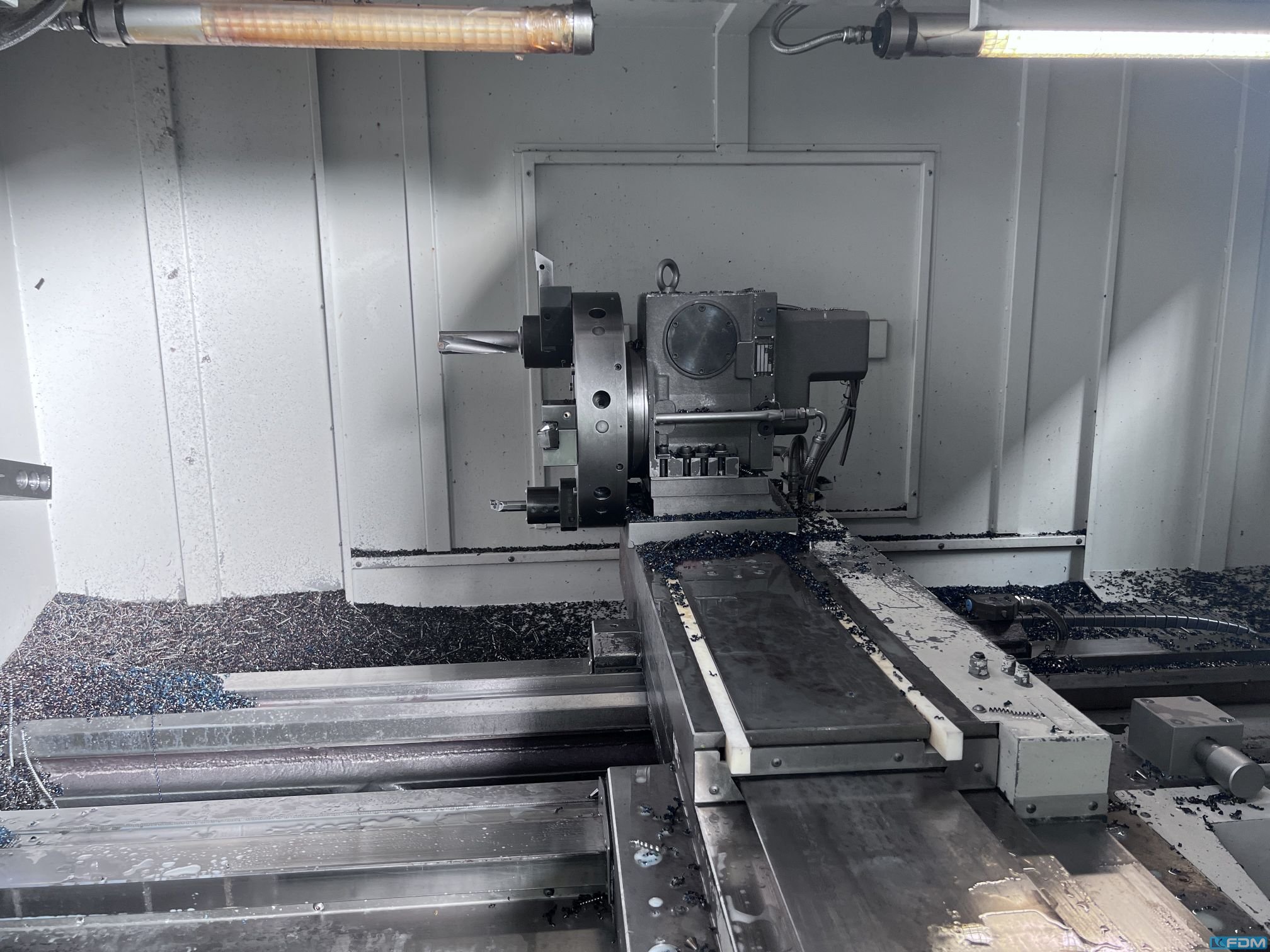

- tool fixture : Turret :

.

- number of tool positions (total):

8

X SLIDE:

.

- x-axis traverse:

455 mm

- traverse velocity x (max):

10000 mm/min

TAILSTOCK:

.

- sleeve stroke:

230 mm

- sleeve diameter:

125 mm

- taper : MK 6 :

.

ELECTRICAL SPECIFICATIONS:

.

- mains power supply:

50 kVA

- mains voltage:

400 V

- mains frequency:

50 Hz

DIMENSIONS / WEIGHTS:

.

- total weight approx.:

10000 kg

Description

Technical description :

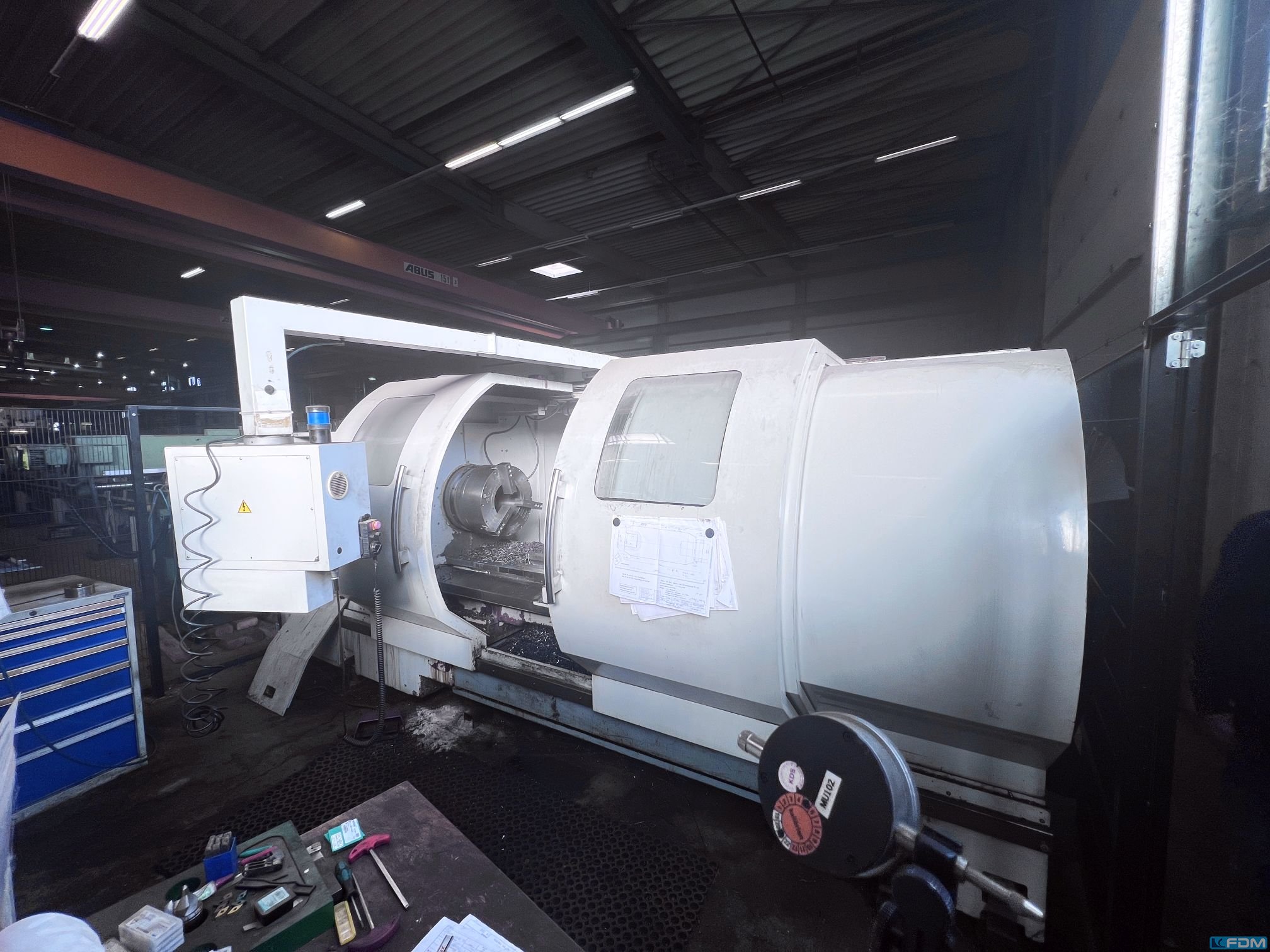

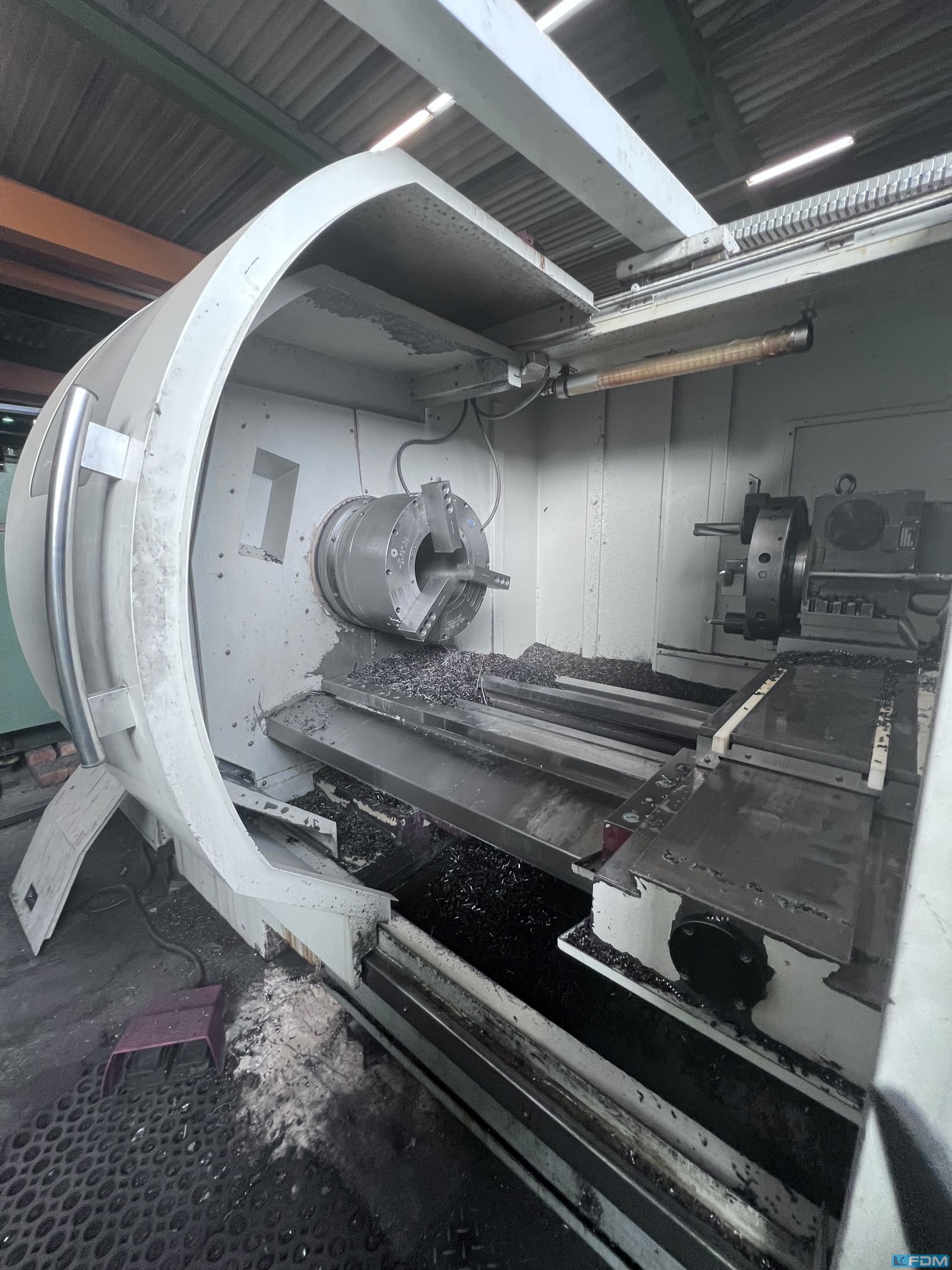

CNC Pipe-thread-lathe with big spindle bore diameter.

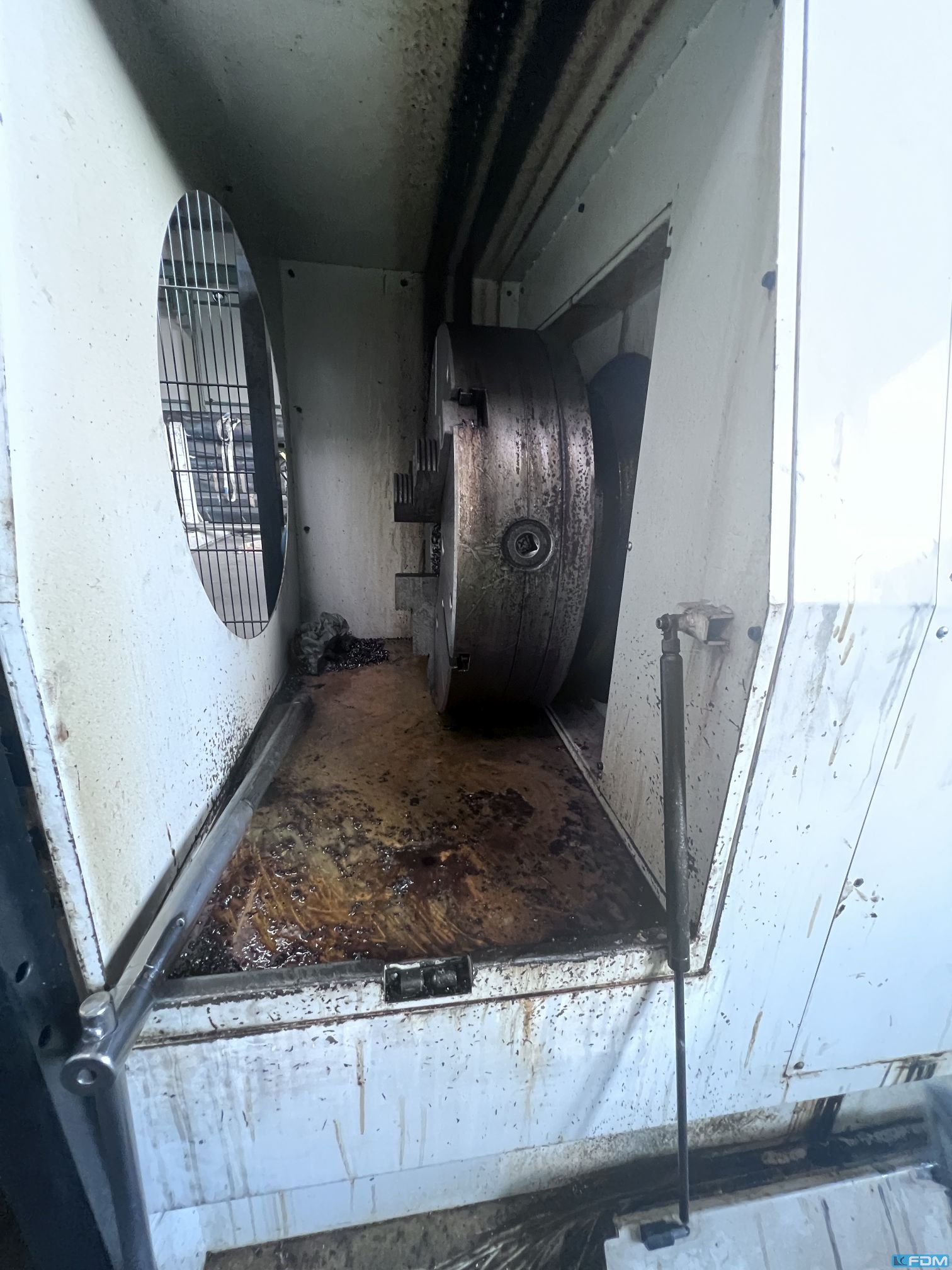

Two chucks on each side ( left and right ) of spindle box.

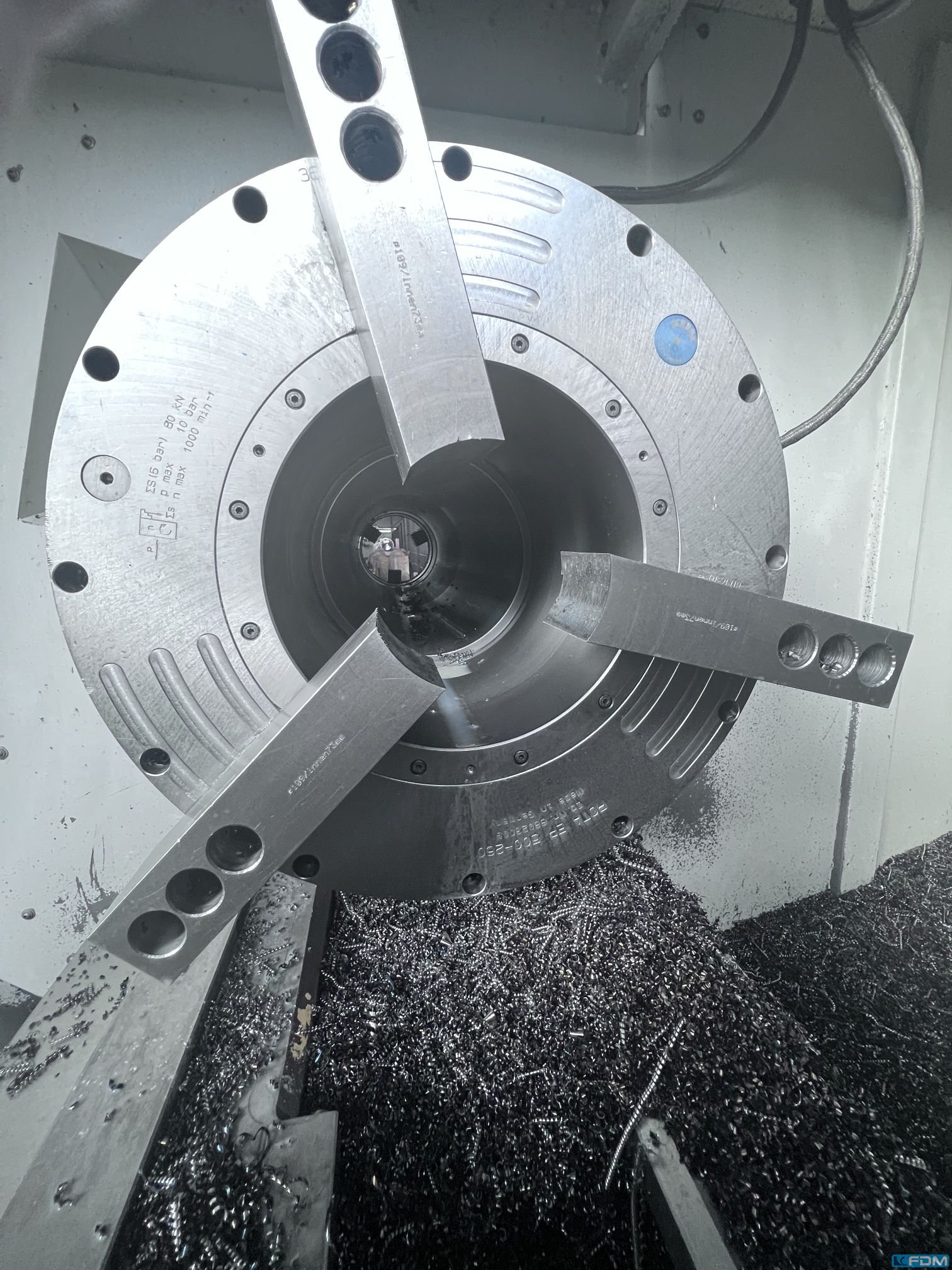

Main chuck: SCHUNK ROTA EP 500-260, 3-jaw hydraulic chuck, and second chuck manually operated.
Turning diameter above bed = 760 mm.
Turning diameter above cross slide = 420 mm.

Working hours = 16936 h, mid November 2022
