Details

x-travel:

4000 mm

y-travel:

3500 mm

z-travel:

1500 mm

Controls:

SIEMENS 840 D

WORKING RANGE -MILLING-:

.

- x-axis traverse:

4000 mm

- y-axis traverse:

3500 mm

- z-axis traverse:

1500 mm

- w-axis traverse:

1500 mm

PORTAL / BRIDGE:

.

- distance between columns:

2500 mm

TABLE:

.

- clamping surface (left-right):

3000 mm

- clamping surface (front-back):

2000 mm

- workpiece load (max):

10000 kg

WORKING SPINDLE / HEAD:

.

- spindle type : vertical :

.

- spindle revolutions (min):

5 /min

- spindle revolutions (max):

6000 /min

- number of gears:

2

- drive power (max):

45 kW

- torque (max.):

1250 Nm

- max. distance spindle ... clamping surface:

3500 mm

TOOL MAGAZINE:

.

- number of positions:

200

- tool diameter max.:

135 mm

- - with free neighbour positions:

250 mm

- tool length max.:

400 mm

- tool weight max.:

50 kg

DIMENSIONS / WEIGHTS:

.

- space requirements length:

13000 mm

- space requirements width:

11300 mm

- height above floor level:

7350 mm

- height under floor level:

1500 mm

ATTACHMENTS:

.

- angular milling head : yes :

.

- autom. tool clamping : yes :

.

- ball spindles : yes :

.

- guideway covers : yes :

.

- coolant unit : yes :

.

- high pressure cooling syst. (through spindle) : yes :

.

- closed cabin : yes :

.

Description

Technical description :

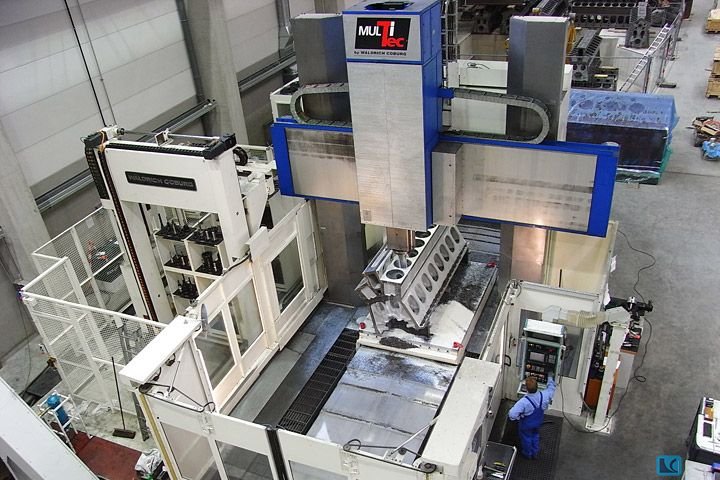

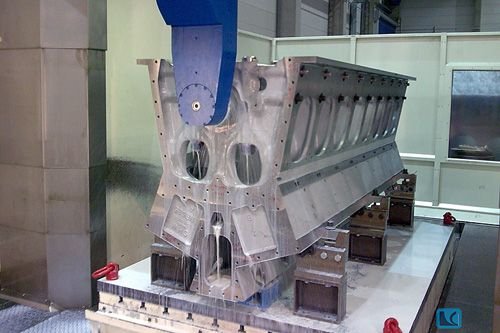

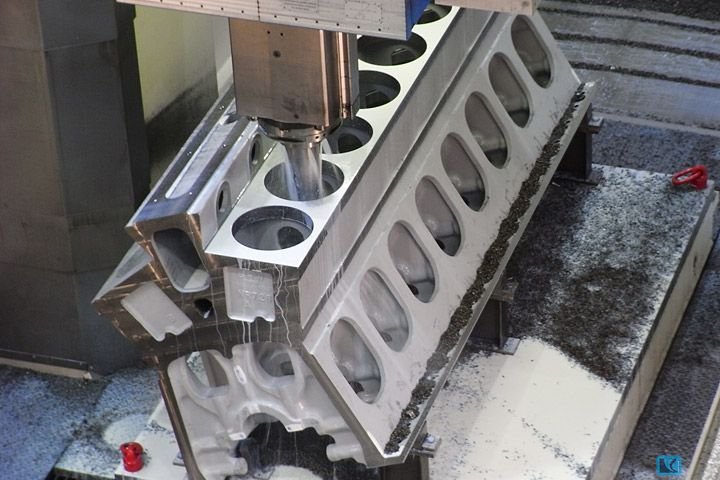

Planer Type Milling Center with tool changing system and one second table plate.
