Details

turning diameter:

445 mm

turning length:

2000 mm

total power requirement:

34 kW

weight of the machine ca.:

7,5 t

dimensions of the machine ca.:

6 x 2,5 x 2,2 m

turning diameter over bed slide:

660

spindle bore:

65 mm

spindle speeds::

16 - 3150 U/min.

rapid motion - x-axis:

10 mm/min

rapid traverse Z-axis:

15 m/min

Description

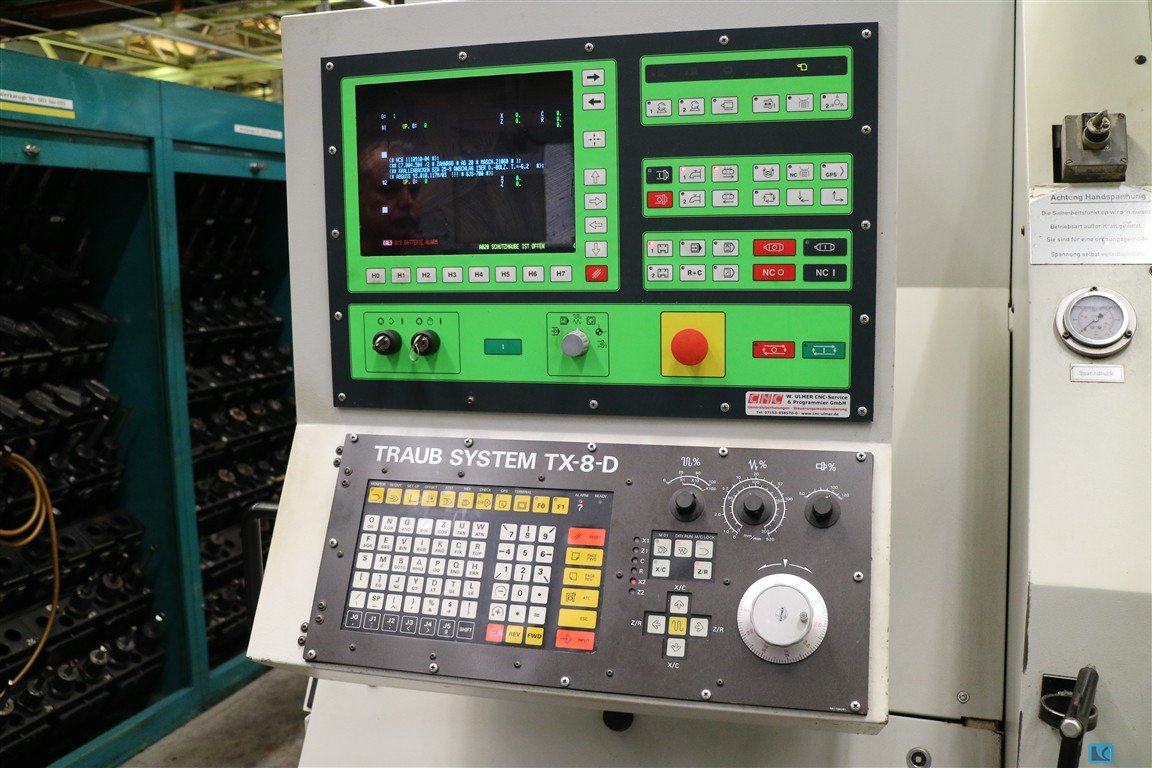

with CNC Control TX 8 D
C-axis driven tooling

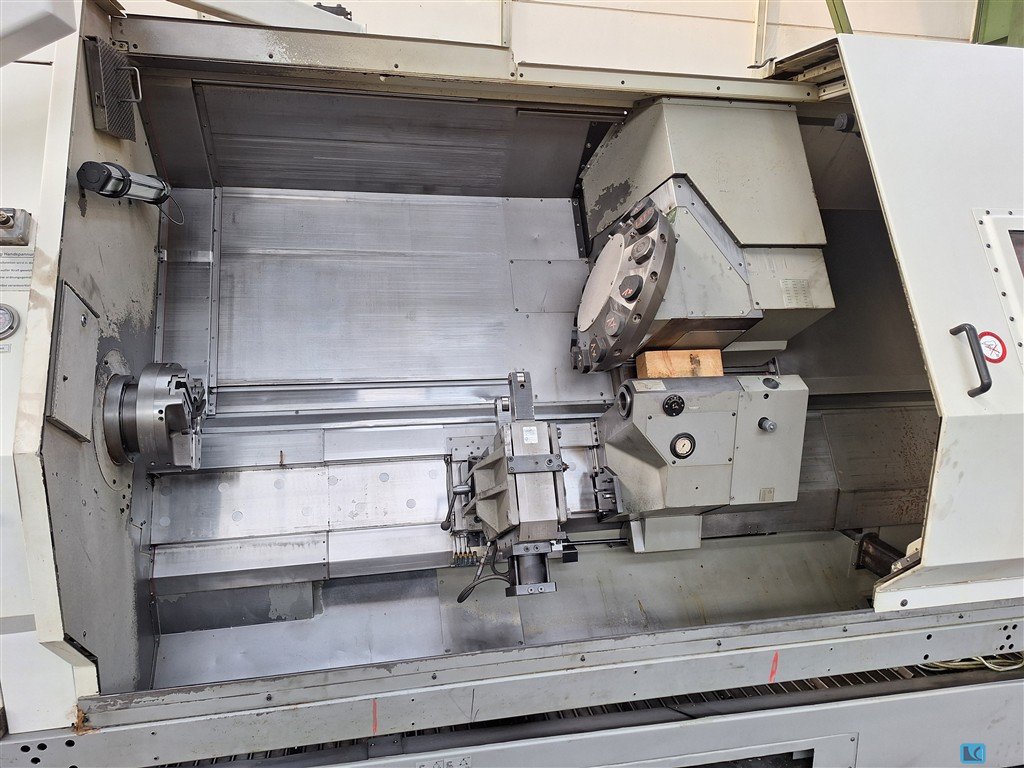

14 station turret head

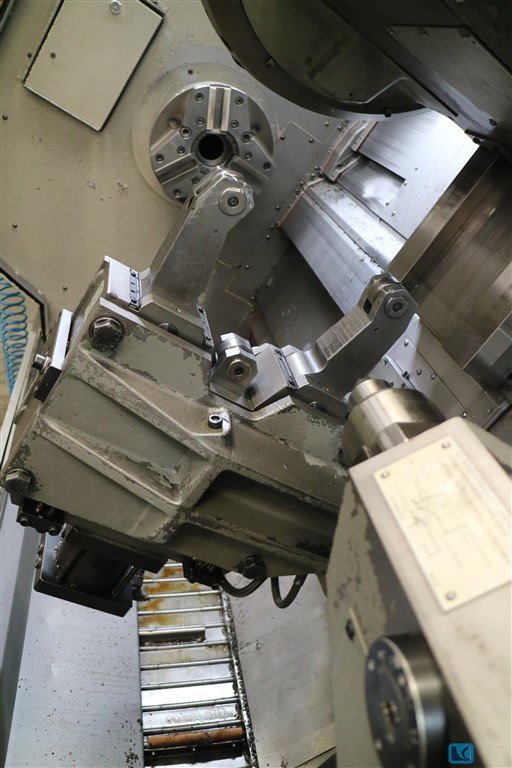

tailstock, steady as NC-axis
chip conveyor and coolant attachment
