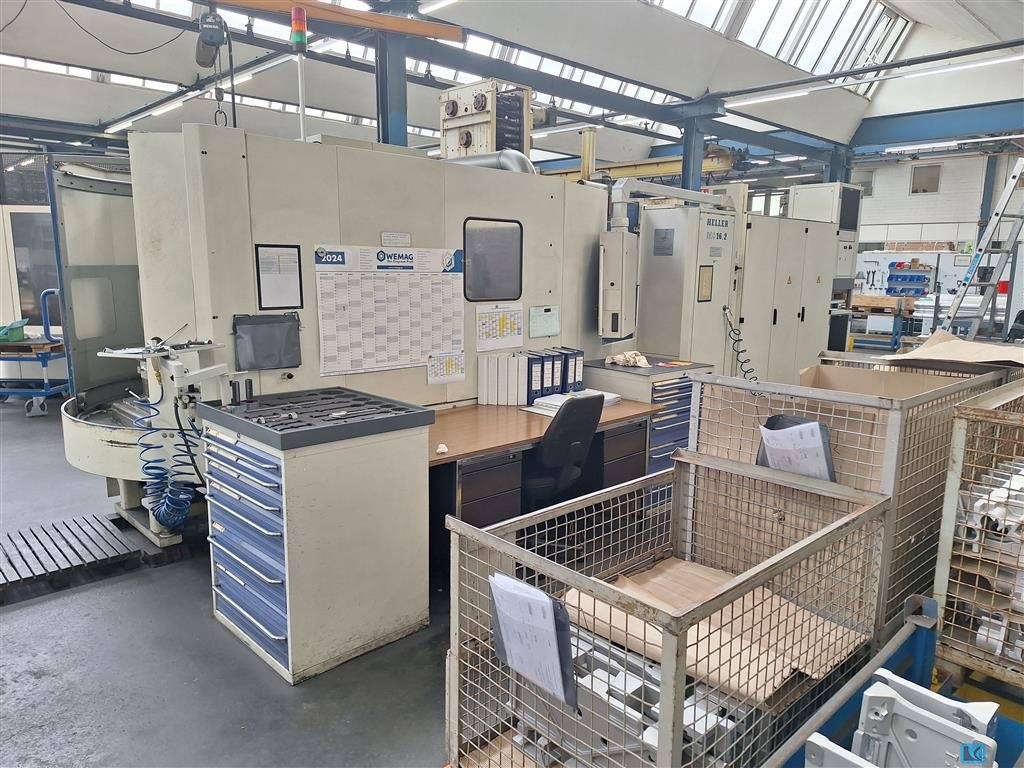

Machining Center - Horizontal - Schiess Moweg GmbH

Picture / documents / videos

Technical specs

Details

x-travel:: 630 mm
y-travel:: 630 mm
z-travel:: 630 mm
pallet size::: 400 x 500 mm
spindle taper::: HSK 63
spindle turning speed - stepless:: 10 - 16000 U/min
total power requirement:: 55 kW
weight of the machine ca.:: 11 t

Description

Machine with SIEMENS 840 D control for 4 axis
- digital drives
- palette changer 4-fold
- tool changer 160-fold
- coolant device with coolant through spindle
- full B-axis
- chip conveyor
- hydr. workpiece clamping
