Details

x-travel:

8500 mm

y-travel:

2000 mm

z-travel:

1500 mm

rapid travel x/y/z:

25 m/min

table-size:

10.000 x 1.350 mm

table load:

max. 5 t/qm

universal head:

orthogonal 1° x 1°

tool taper:

SK 50

milling head speed:

4.000 1/min

power capacity:

37 kW

max. torque on the spindle:

900 Nm

internal coolant system feed:

15 bar

control:

HEIDENHAIN iTNC 530

Tool changer:

60 Pos.

total power requirement:

75 KW

dimensions of the machine ca.:

12,7 x 5,2 x 4,6 m

weight of the machine ca.:

35 t

Description

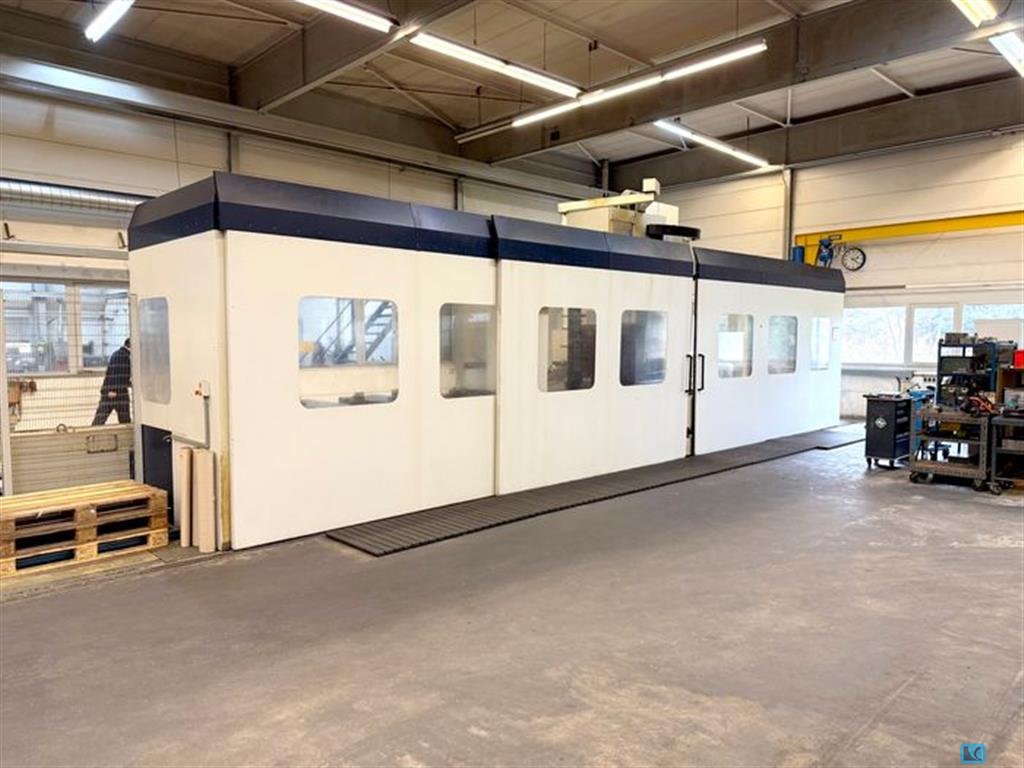

universal travelling column - universal machining center,
orthogonal milling head, water-cooled, with 1° indexing in 2 axis (360 pos. in rear layer, 270 pos. in front layer)
3D touch probe M&H 20.41,
dividing wall for 2 table machining,
internal air blast,
15bar high pressure pump,
prepared for HSC milling heads incl. torque support,
moveable operator-cabin/panel,
chipconveyor,
handwheel HR 410,
controlled security fence,

miscellaneous accessories (angle milling heads, vices...) on request

approx. 39.000h "machine on", approx. 16.000h "spindle on"
still under power in closed factory
