Details

turning diameter:

350 mm

turning length:

650 mm

spindle bore:

67 mm

swing over bed:

385 mm

centre distance:

805 mm

travel x / y:

255 mm

z-travel:

800 mm

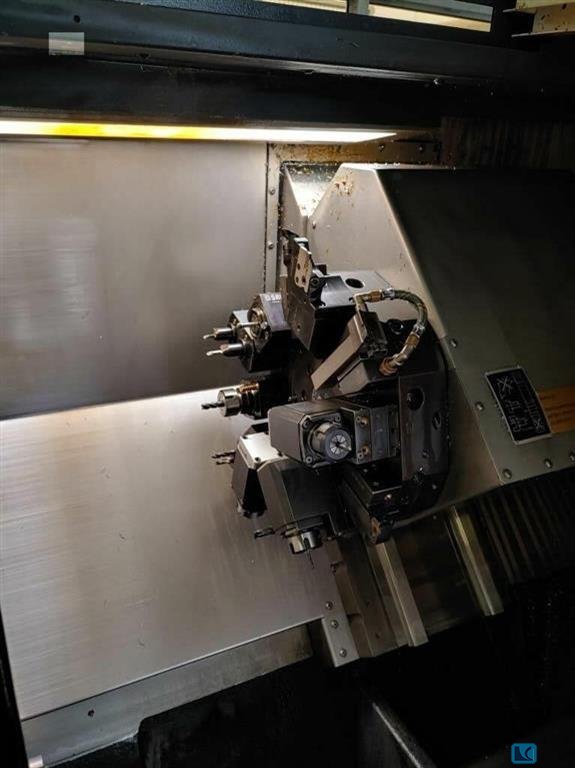

with 12-station turret head:

VDI 30

power capacity:

11,5 / 8 kW

bar material dia.:

65 mm

chucking diameter:

200/250 mm

spindle turning speed range:

4500 1/min

rapid power traverse in X-and Z direction:

30 m/min

total power requirement:

21 kVA

weight of the machine ca.:

3,3 t

dimensions:

ca.2,50x2,20x1,80 m

Description

CNC lathe with tailstock,
live tools (6 positions),
chip conveyor,
power pack for clamping device,
3 jaw-chuck, hydaulic, SCHUNK NCK dia. 210mm/52,
package "bar machining",
differential pressure device for clamping unit,
reinforced coolant pump 12bar, 23 l/min,
package for unstable power supply system,
flush gun,
DMG netservice,
DXF Import,

approx. 25.000h "machine on", approx. 18.000h "spindle on"
