Details

bar material dia.:

65 mm

turning length:

644 mm

turning dia. over bed:

600 mm

turning diameter over slide:

430 mm

y-axis:

100 (+-50) mm

turning speeds:

2x 5.000 1/min

positive location each:

2x C-Achse, 0,001° Grad

Sub spindle:

ja/yes

turret (x-stations):

2x 12 VDI 30 Pos.

driven tools:

2x 12 Pos.

turning speeds:

2x 4.000 1/min

control:

FANUC 18 iTB

total power requirement:

30 kVA

weight of the machine ca.:

8 t

dimensions of the machine ca.:

3,5 x 2,5 x 2,3 m

Description

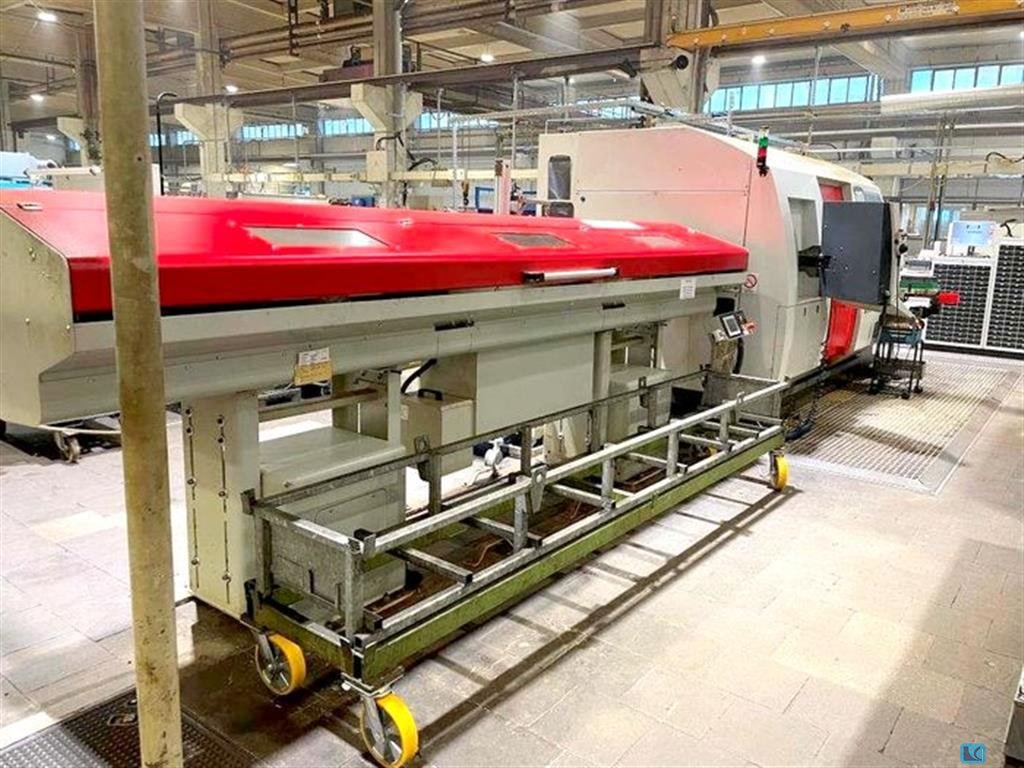

turning- milling center with Y-axis,
collet device on main and subspindle,
high pressure pumps 2x 14bar,
parts catcher/conveyor,
barloader ENTL 10-65,
chip conveyor,
lot of accessories

approx. 54.500 hours "machine on", 30.500 h "automatic", 14.000 h "feeding"
