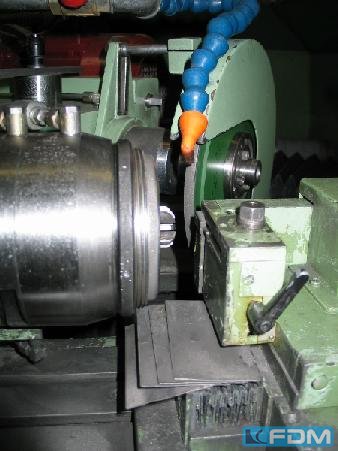

Tool Grinder - Universal
SAACKE UW II A CNC
- Stock number:
- 1009-1056
- Year / Condition:
- 1995
- Control unit:
- CNC
- Country of origin:
- Germany
- Freight basis:
- ex Warehouse
- Item location:
- D-Eislingen
- Delivery time:
- to be agreed
Picture / documents / videos
Technical specs
Details
- max. grinding diameter:
- 300 mm
- grinding length:
- 400 mm
- workpiece length:
- 520 mm
- centre height:
- 150 mm
- 550 mm
- table speed -stepless-:
- 0,005 - 5,0 m/min
- centre distance:
- 350 mm
- 250/3750/5000/7500 U/min
- max. dia. of grinding wheel:
- 250 mm
- grinding spindle head - swivable:
- 11-60 °
- drive capacity - spindle motor:
- max 3,0 kW
- total power requirement:
- 7,7 kW
Description
with SIEMENS 810 G3 CNC control, electric hand wheel and spindle pitch-correction unit,
FORKART OVERZ-BR hydraulic collet chuck, coolant device, automatic central lubrication,
encasement with movable observation window at operator's station, separate electrical cabinet, machine light, SIEMENS servo drives, very good condition
