Description

- new model series 2017 -

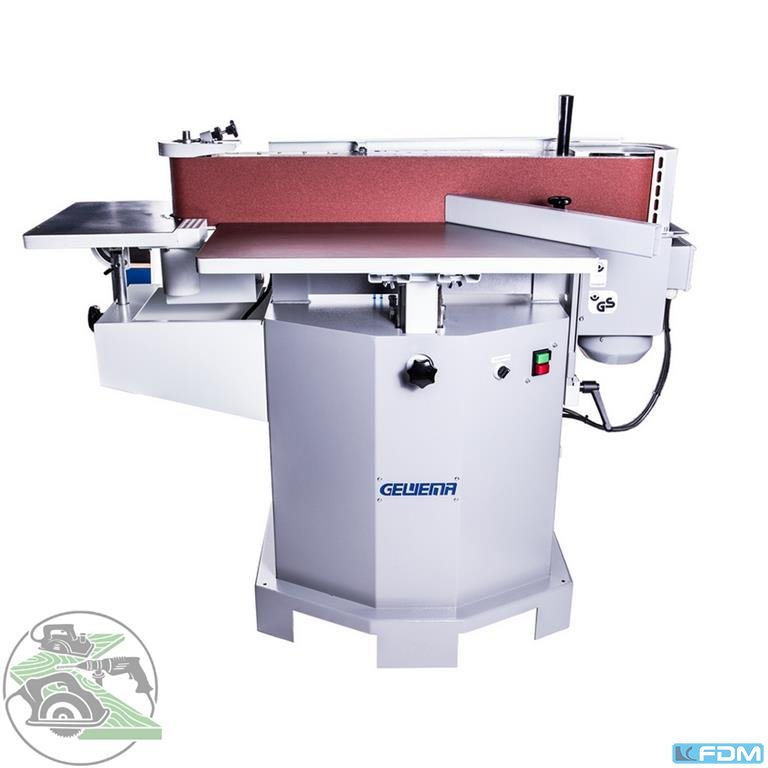

The shell in heavy cast iron construction with
built-phase AC motor 380 V, 2.2 kW,
2850 U / min;
the machine is equipped with a built
Switch-plug combination;
Motor protection switch and main switch to VDE;
Dimensions of abrasive belt back wall: 850 x 150 mm;
Steel table adjustable in height by spring pressure;
Tape measure: 150 x 2280 mm;
the abrasive belt back wall is covered with a graphite sliding coating;
the machine is supplied with an assortment abrasive belts;
also included is an angle and
Miter.
The machine is in a connection to a
central extraction with an air velocity
of min. 20 m / s dust tested (GS) wood-BG-Stuttgart.

Technical specifications:
Motor power: 2.2 kW
Abrasive tape measure: 150 x 2280 mm
Abrasive Belt speed: 22 m / sec.
Table size: 750 x 350 mm
Space: 1000 x 800 mm
Weight: from 180 kg
Suction D .: 100mm
Item No. 1050-500000

inclusive:
- Swiveling 90-180 ° Item 1050-590010
- Belt oscillation Art 1050-590020
- Supporting table at pulley Item 1050-590040
- Pneumatic belt tension Item 1050-590155
- Sanding belt EKA1000 150x2280 mm K 80
Item No. 652-000008

Located in 97447 Gerolzhofen
- Free on truck -

- new model series 2017 -

The shell in heavy cast iron construction with
built-phase AC motor 380 V, 2.2 kW,
2850 U / min;
the machine is equipped with a built
Switch-plug combination;
Motor protection switch and main switch to VDE;
Dimensions of abrasive belt back wall: 850 x 150 mm;
Steel table adjustable in height by spring pressure;
Tape measure: 150 x 2280 mm;
the abrasive belt back wall is covered with a graphite sliding coating;
the machine is supplied with an assortment abrasive belts;
also included is an angle and
Miter.
The machine is in a connection to a
central extraction with an air velocity
of min. 20 m / s dust tested (GS) wood-BG-Stuttgart.

Technical specifications:
Motor power: 2.2 kW
Abrasive tape measure: 150 x 2280 mm
Abrasive Belt speed: 22 m / sec.
Table size: 750 x 350 mm
Space: 1000 x 800 mm
Weight: from 180 kg
Suction D .: 100mm
Item No. 1050-500000

inclusive:
- Swiveling 90-180 ° Item 1050-590010
- Belt oscillation Art 1050-590020
- Supporting table at pulley Item 1050-590040
- Pneumatic belt tension Item 1050-590155
- Sanding belt EKA1000 150x2280 mm K 80
Item No. 652-000008

Located in 97447 Gerolzhofen
- Free on truck -
