Description

used, cleaned, function checked,
test run, greased,
feeder chains renewed and newly adjusted,
spindle rotation:
2/100-0/100-1/100-0/100-2/100-1/100 mm

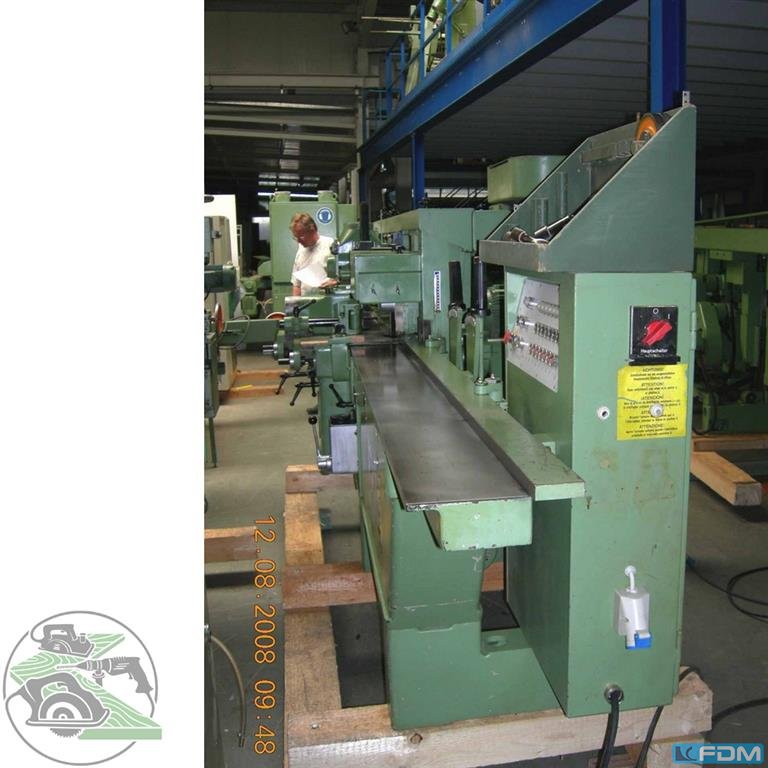

manufactured by Weinig
type U - 16 - K
built in 1975
mach. No. 570/799
number of spindles 6
spindle alignment:
bottom - right - left - top - bottom - right
motors:
4 - 3 - 5.5 - 5.5 - 3.0 - 5.5
planing width ca. 160 mm
planing height ca. 120 mm
table length ca. 2,000 mm
cutter system Terminius -
turncutter
table lubrication
feeder vor der surface planer
feed speed
from 6 to 18 m/min.
profiling
electrical adjustment height
exhaust connection 6 x 120 mm
required space ca. l x w x h mm
4,000 x 1,400 x 1,600
weight ca. 3,000 kg
located in 97447 Gerolzhofen
