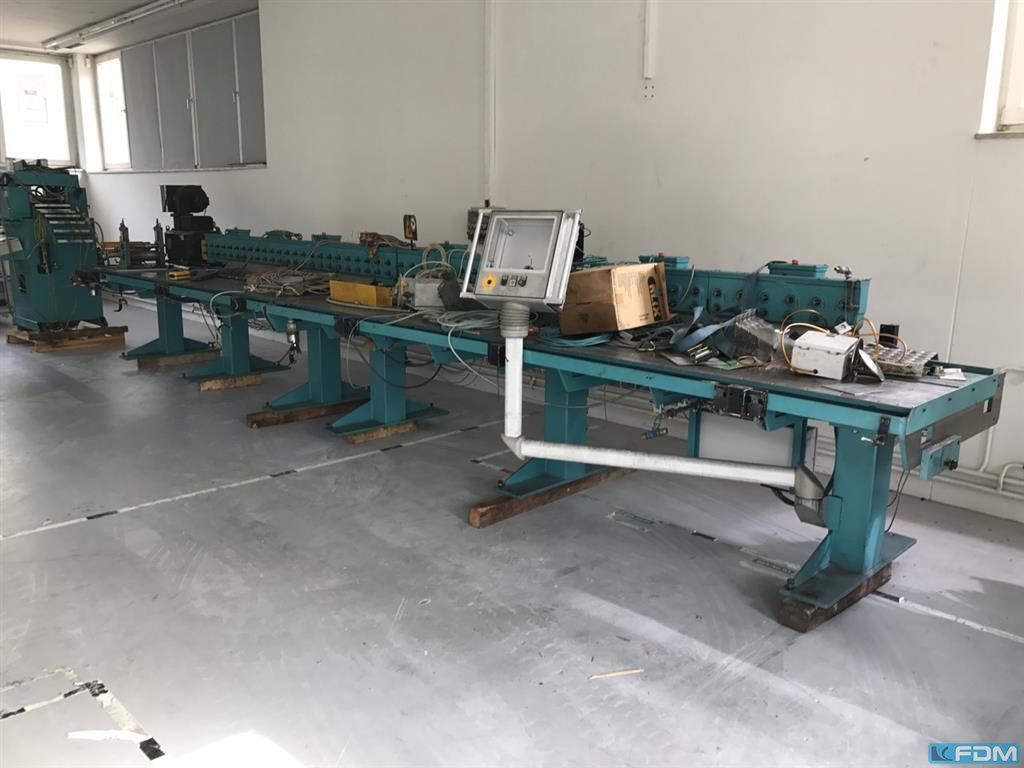

Details

sheet width:

200 (320) mm

plate thickness:

max. 2,0 mm

stations:

48

Description

number of working stations: 48
Vertical center distance (a) [mm] 75
Horizontal center distance [mm] 130
Work shaft diameter (d) [mm] 25
Strip width 200 mm, max. 320 mm depending on the profile
Strip thicknes max. at Rm=200 MPa Alumin. [mm] 2,0
Strip thicknes max. at Rm=400 MPa Steel [mm] 1,5
Work shaft pairs per cassette 1
Axial adjustment of work shaft [mm] ± 2,5
Rollforming speed max. [m/min] 40

inclusive:
- Dreher decolier BHE 30-325-Fqm
- Dreher roll leveler BRMB-17-40-310-L
- welding unit
- cutting unit

Machine comes without tools.

The success story of the P60/80/90 shows that the Dreistern engineers have managed to achieve this combination particularly well. The range of applications for this machine is impressive. It stretches from the manufacture of foam-filled aluminium shutters and blinds to welded glass spacers for double glazing. Like all Dreistern roll forming machines, a very wide range of additional processes, such as foam-filling, punching or welding can be integrated into P60/80/90 roll forming machines. In all these applications this machine type can exploit its versatility.
