Details

weight of the machine ca.:

4,0 t

machine dimensions LxWxH:

1,8 x 1,8 x 0,9 m

Description

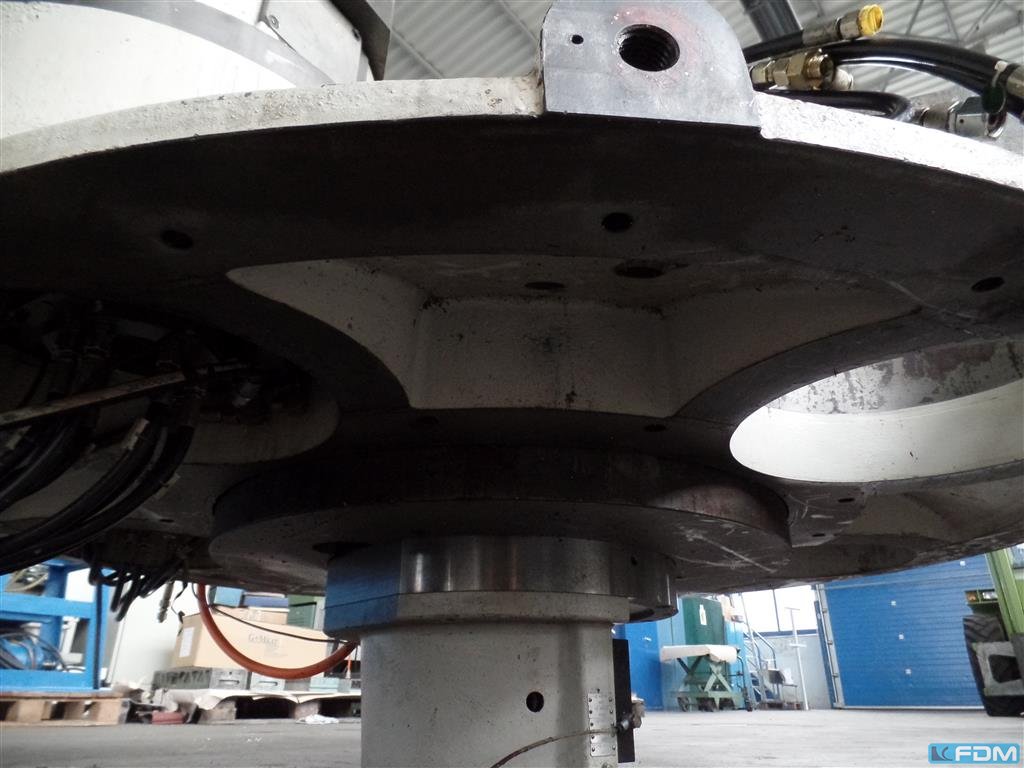

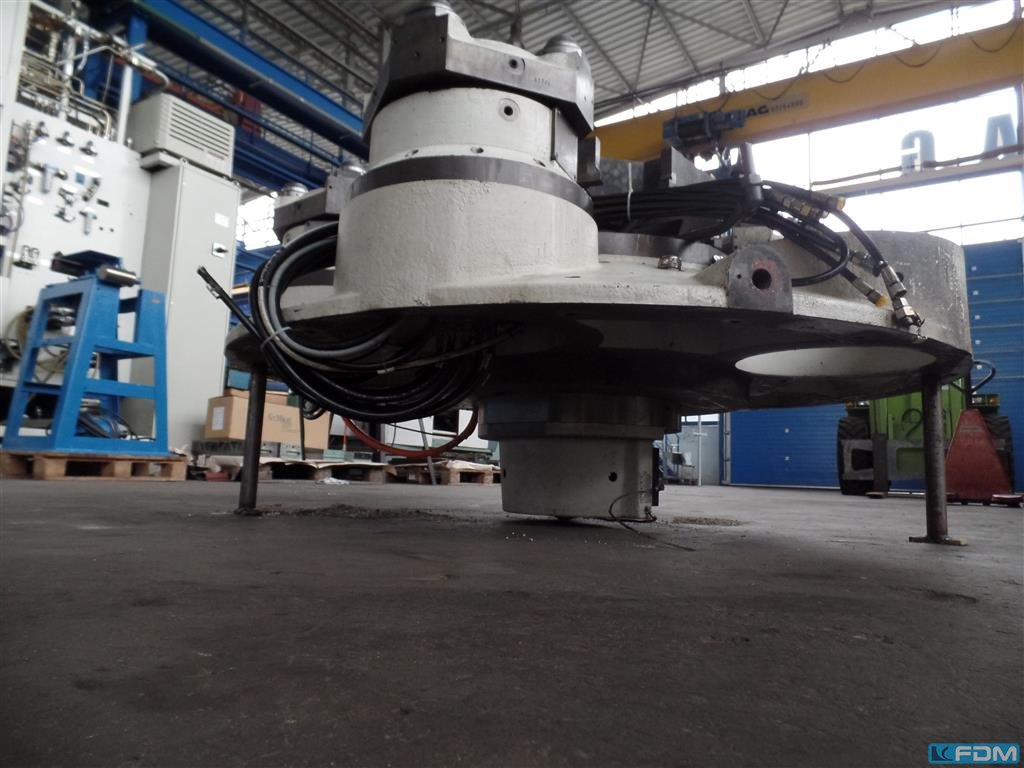

Machine table with 5 indexing tables for multi-side machining

Application: Multi-side machining of workpieces in circular transfer machines in one operation on 5 indexing tables with clamping devices.

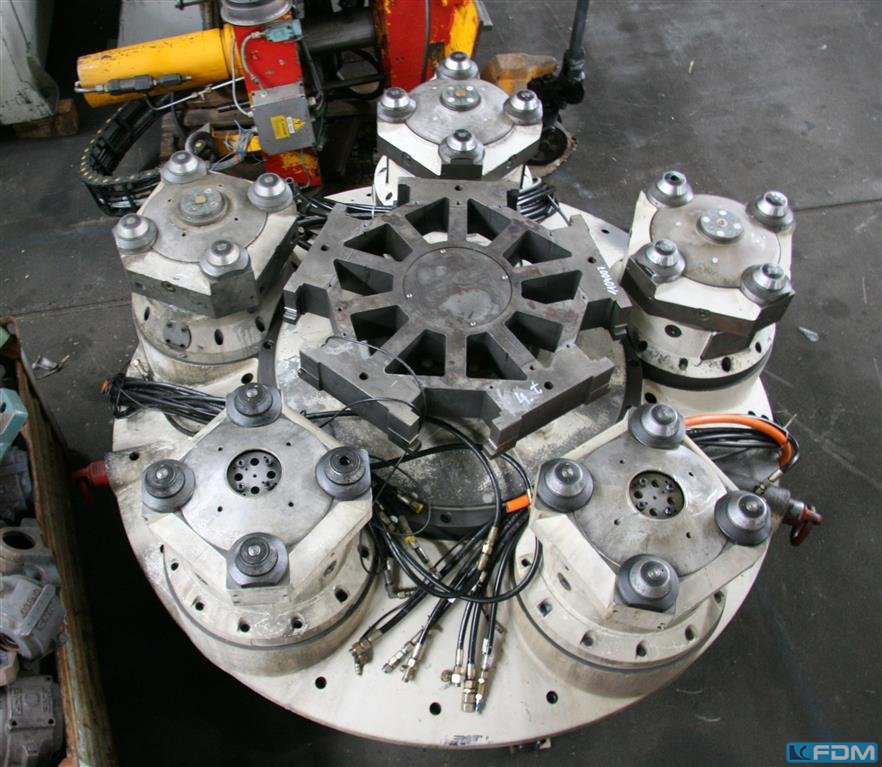

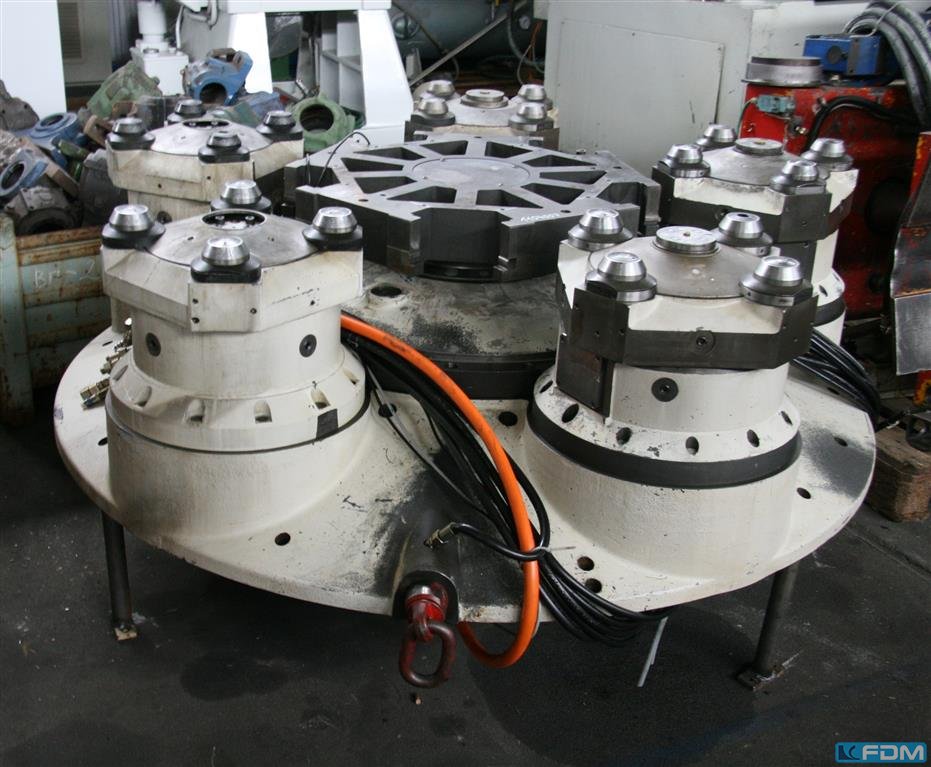

Design: Round, fixed body with 5 round tact tables, which are arranged in the shape of a pentagon, and a centrally mounted turntable.

Description:

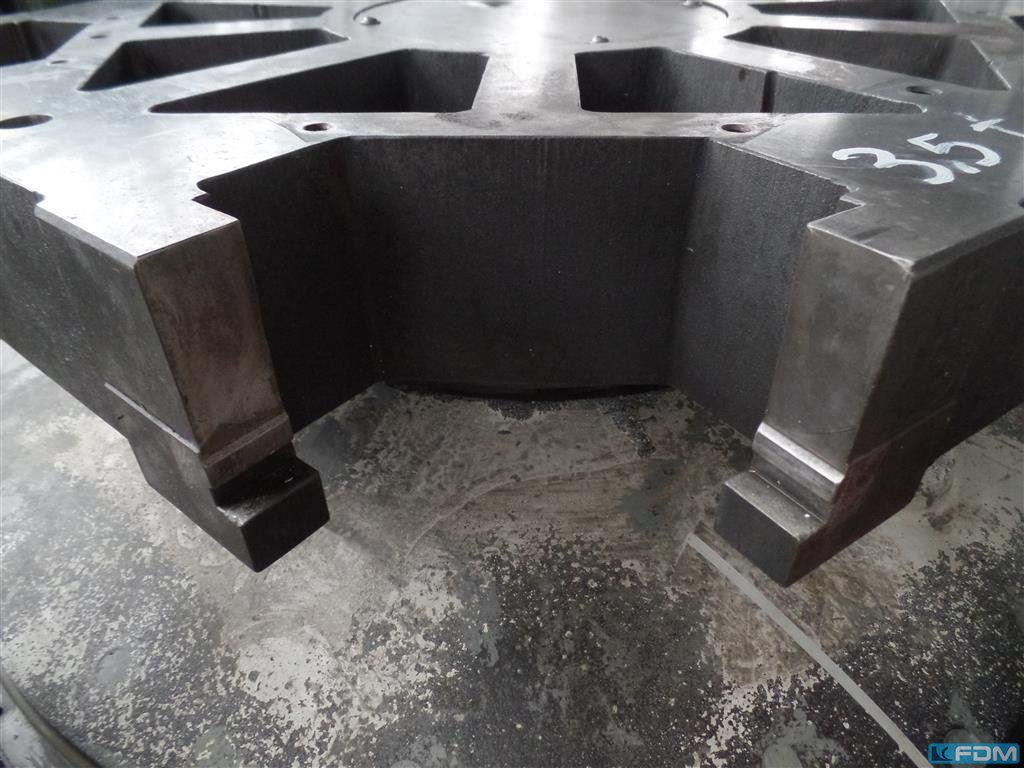

Turntable center = type Pentagon, diagonal 830mm; swing diameter Ø 873mm, side length 513mm

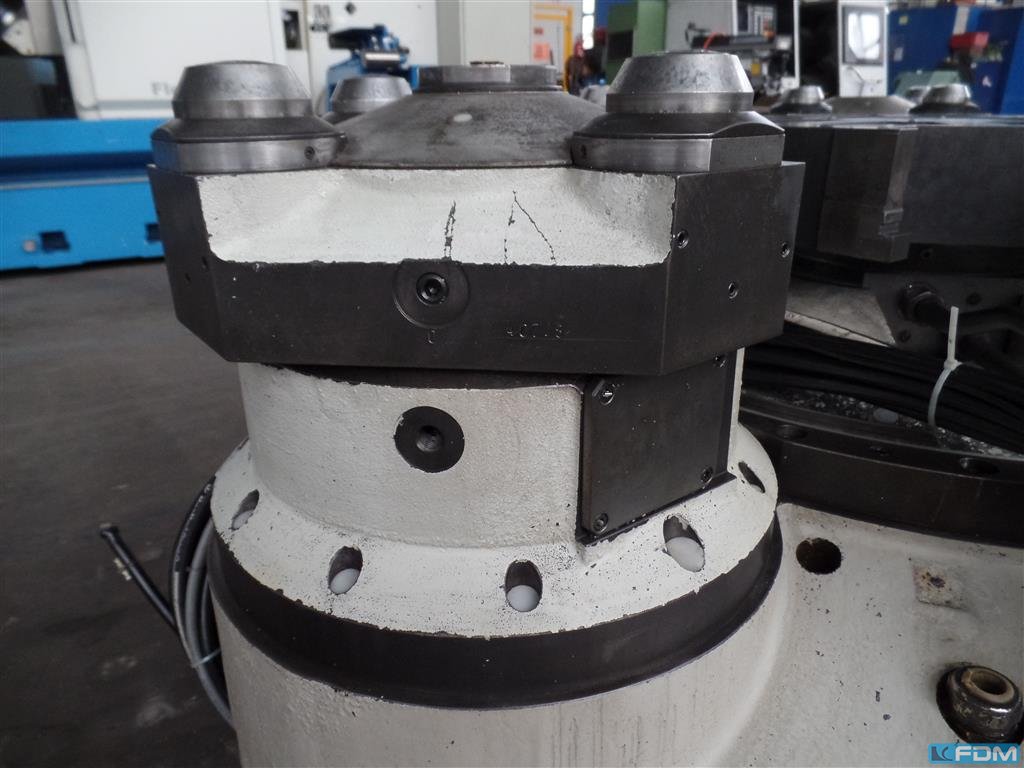

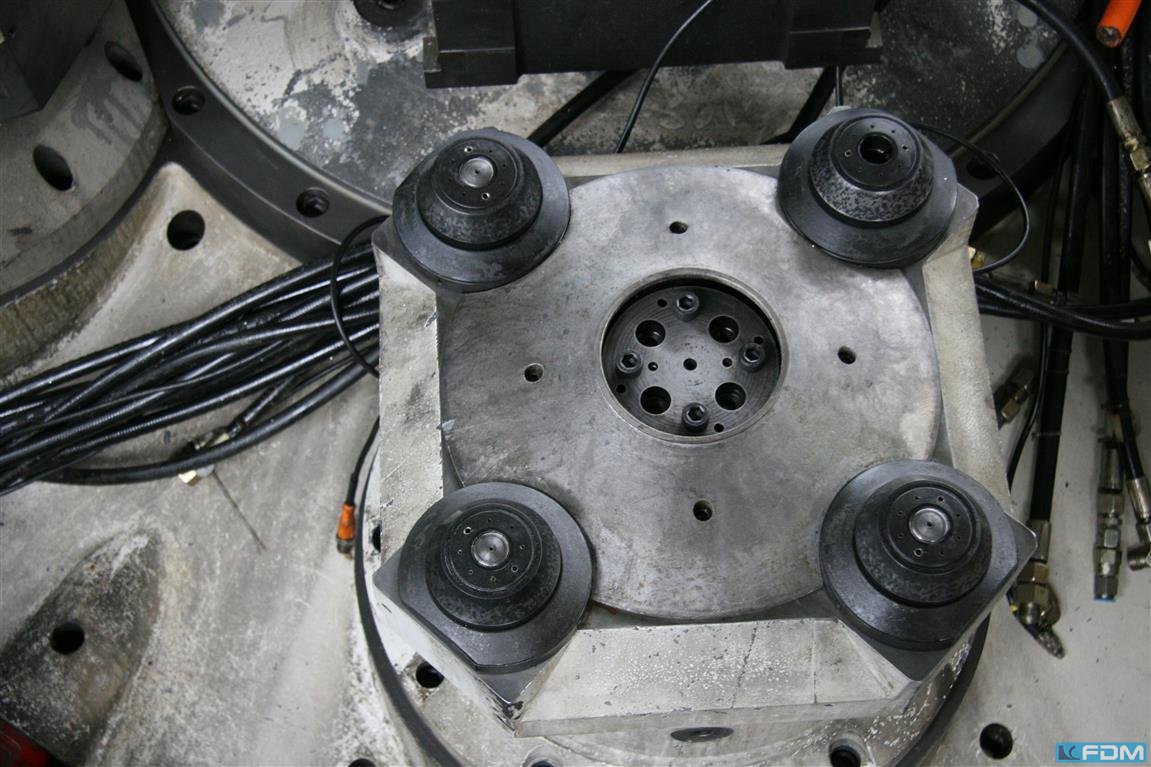

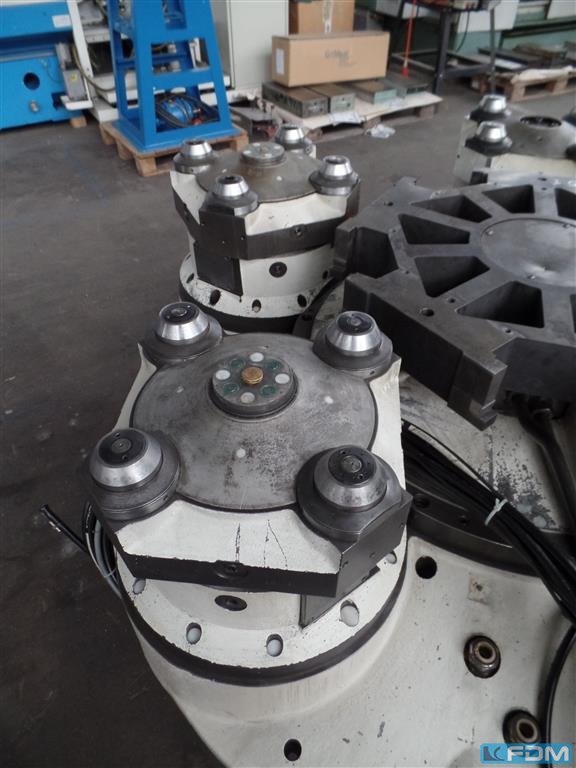

5x rotary indexing table, as a regular pentagon on machine body, center circle Ø = 1280mm, table shape truncated square 380x380mm, clamping device via 4 pieces make Röhm truncated cone clamping devices and 1 central centering flange, 360 ° rotatable, workpiece Ø approx. 730mm

Actuation / drive is hydraulic
