Details

table load:

2,2 t

table diameter:

2500 mm

Total power requirement:

9,6 kW

max. table load:

22.000 daN / 2200kg

table rotating:

links/rechts Grad

table - inclinable:

0 - 120 Grad

table height:

1700 mm

machine weight approx.:

12000 kg

connected load:

ca. 5,0 kVA

dimensions LxWxH:

ca. 4,5 x 2,5 x 2,3 m

Description

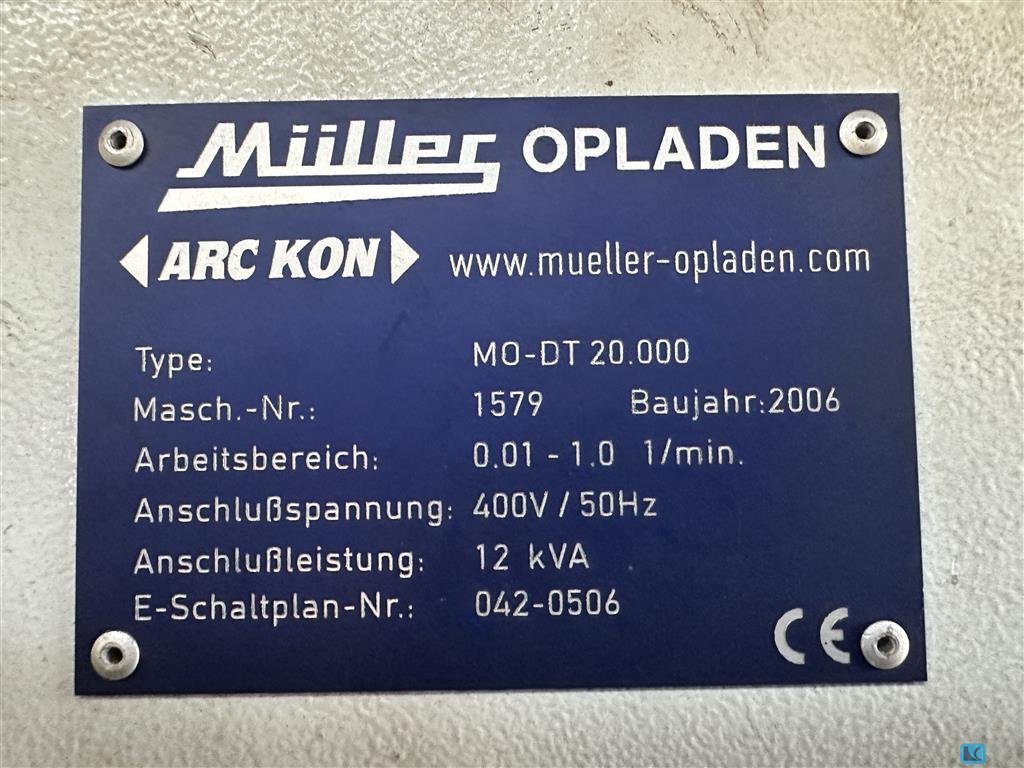

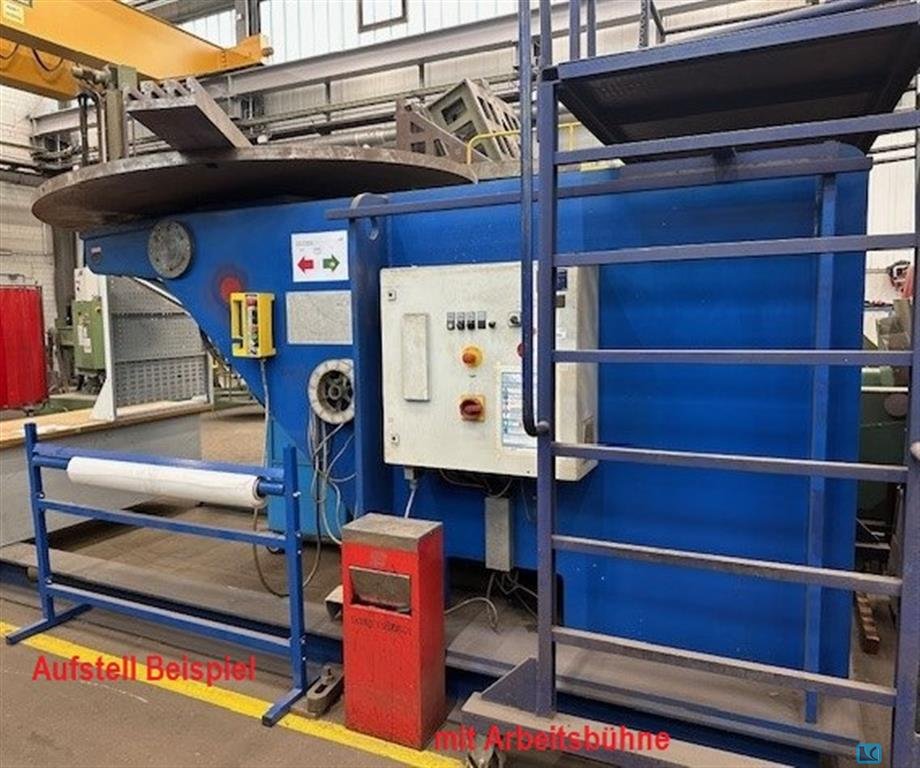

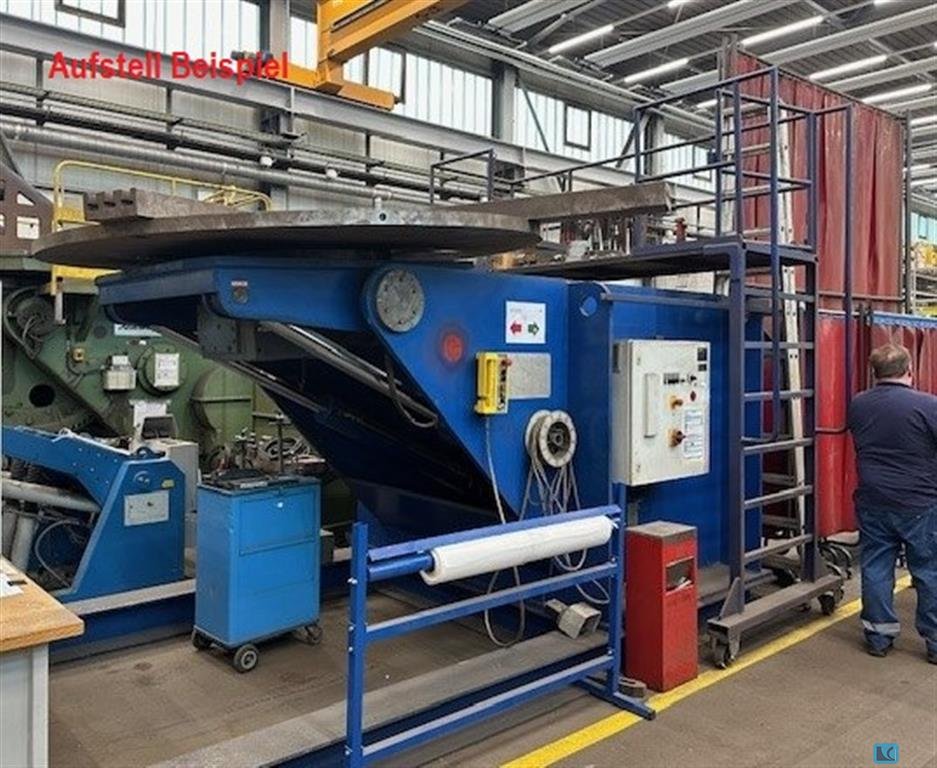

Welding positioning turn-tilt table developed and manufactured by Müller Opladen ARC KON EWeding GmbH.

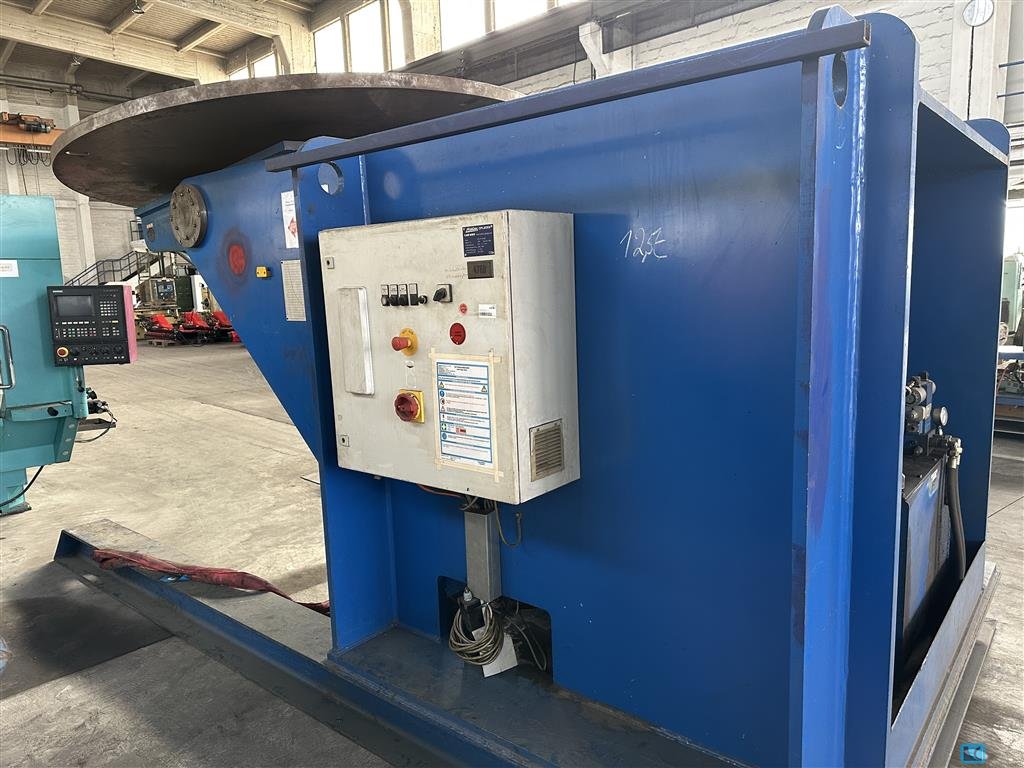

Machine frame solid, welded steel construction with ball-bearing tilting device

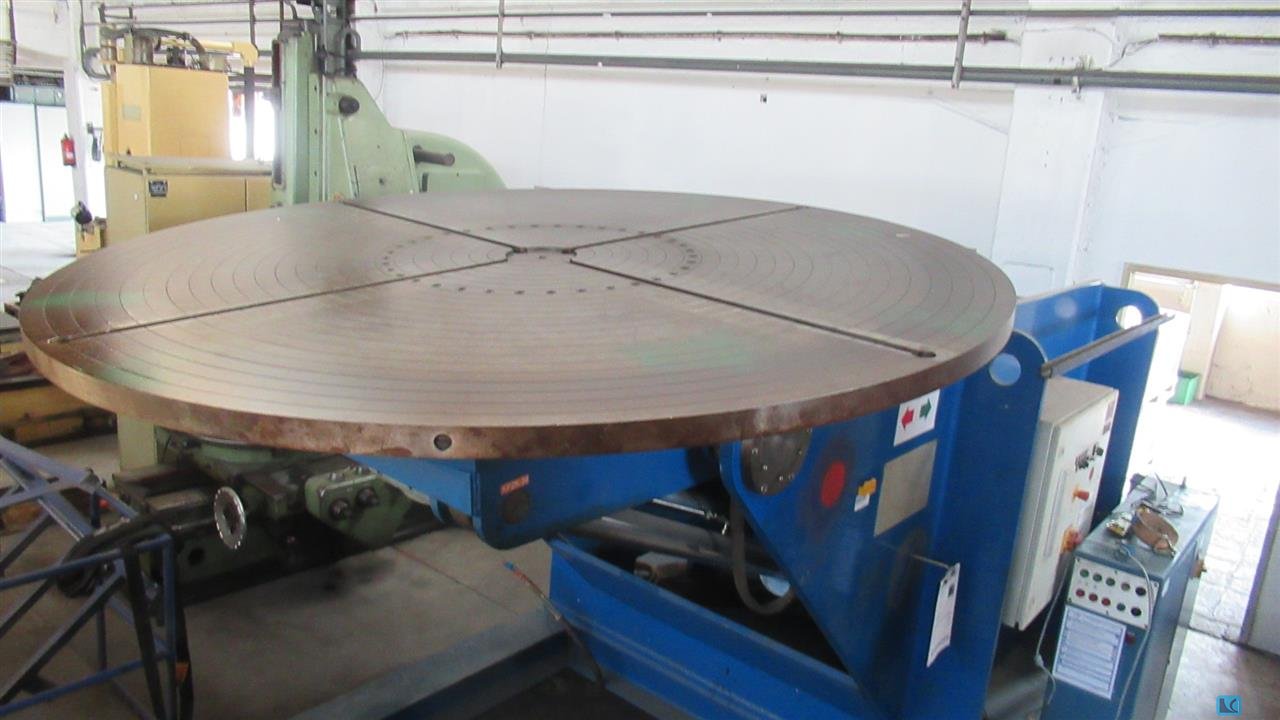

Table with centering grooves and T-slots for M24 according to DIN 650.
Infinitely variable rotary drive from 0.05 - 1.0 rpm.
Height to center of swivel axis 1700 mm
hydr. tilt adjustment, infinitely variable from 0 - 120°

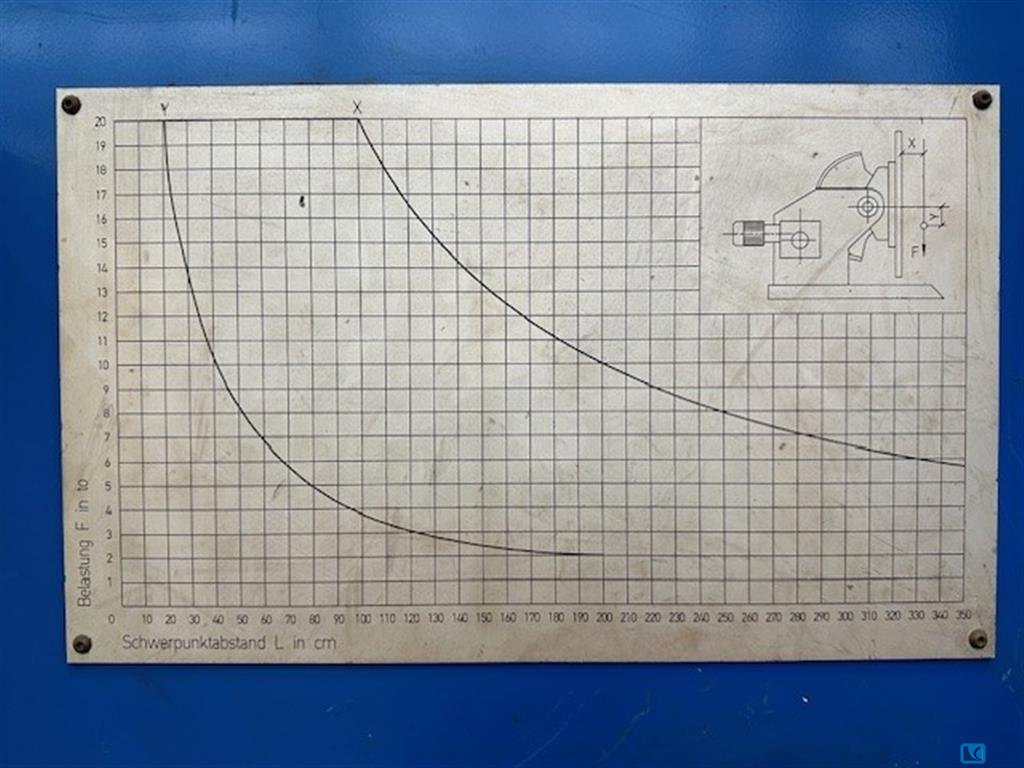

Drive is designed for a torque of approx. 40,000 Nm at the turntable

Accessories:
1x 2-row foot switch
1x remote control

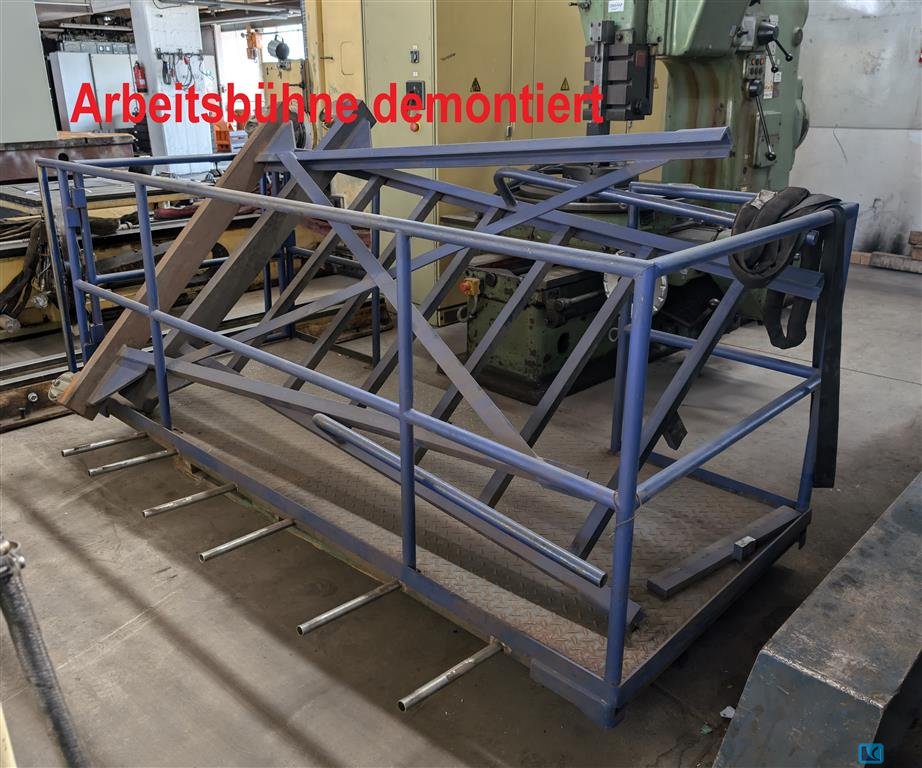

1x working platform
