Drawbenches - Slotting Machine - Vertical - WMW MEUSELWITZ STSR400

Slotting Machine - Vertical

WMW MEUSELWITZ STSR400

Stock number:
1087-0900015
Year:
1948
Control unit:
conventional
Country of origin:
Germany
Freight basis:
EXW, free on truck unpacked
Item location:
Leipzig 2
Delivery time:
on request

Picture / documents / videos

Technical specs

Details

max. ram stroke:
450 mm
table diameter:
800 mm
min. ram stroke:
65 mm
workpiece height max.:
600 mm
ram adjustment:
600 mm
no. of ram strokes:

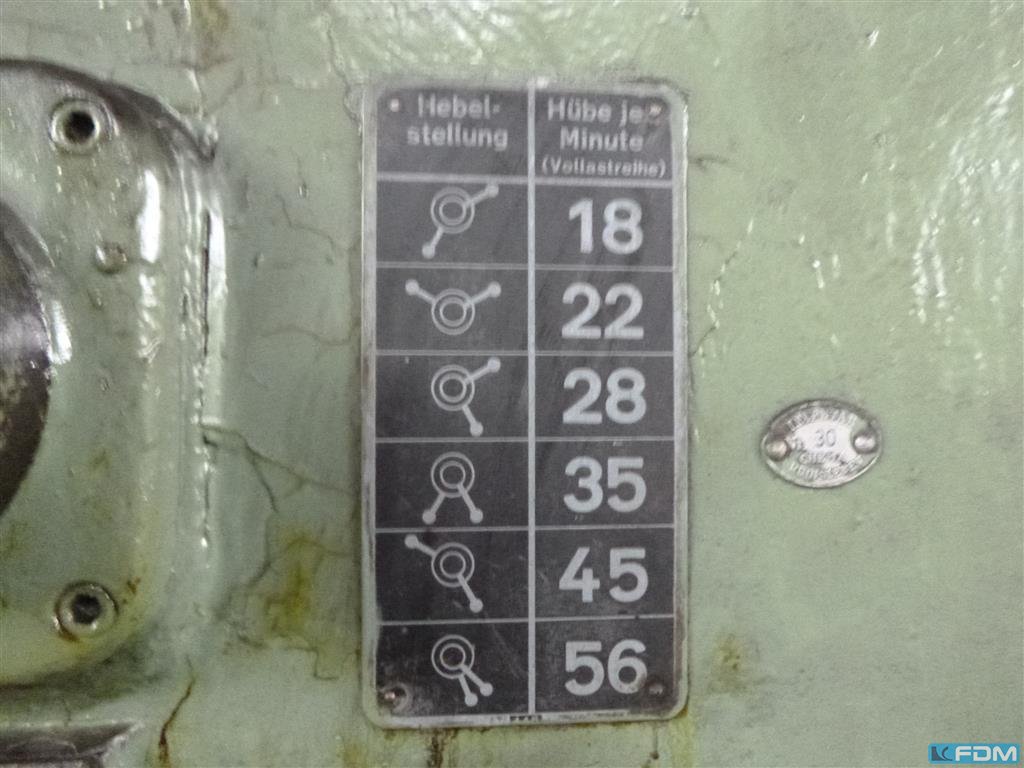

18; 22; 28; 35; 45; 56 Hub/min.
cross feed of the table:
800 mm
longitudinal feed of the table:
1000 mm
table rotation:
360 °
feed:
Tisch: pro Hub: 0,14 - 0,22 - 0,35 - 0,56 - 0,9 -1,4 mm/Hub
total power requirement:
7,8 kW
weight of the machine ca.:
6,25 t
dimension machine approx.LxWxH:
2,8 x 1,9 x 3,0 m

Description

other features:
Ram:
-the ram is adjustable in the projection of 900mm
-throat of bed = 700mm

Tool clamp by means of bracket clamp (dimensions 350 x 250mm)

Accessories:
1piece 3-jaw chuck Ø 250mm
