Details

grinding diameter:

1,5 - 75 mm

grinding wheel diameter:

400 mm

grinding wheel width:

160 mm

work stroke:

0 - 1 mm

working feed:

stufenlos/ continous mm/min

grinding wheel speeds:

1300 U/min

control for program:

Num 1020 GC

total power requirement:

14 kW

weight of the machine ca.:

3,8 t

dimensions of machine:

3,0x2,2x2,2 m

dimensions electric cabinet LxWxH:

1,5x0,4x2,0 m

Description

CIRCULAR GRINDING MACHINE
- alloyed round steels as well as (grooving process) throughfeed process.
- In the plunge process, the plunge-cut length is max. 160mm.
- Workpiece removal automatically via rail (its function or operation is not known to WMW AG)
- grinding wheel with reshaping device, speed = 1300 rpm.
- regulating grinding wheel with reshaping device, infeed angle right 0-6° and left 0-2°; wheel size 280x160mm
- automatic grinding wheel balancing system

accessories: various grinding and regulating wheels on request

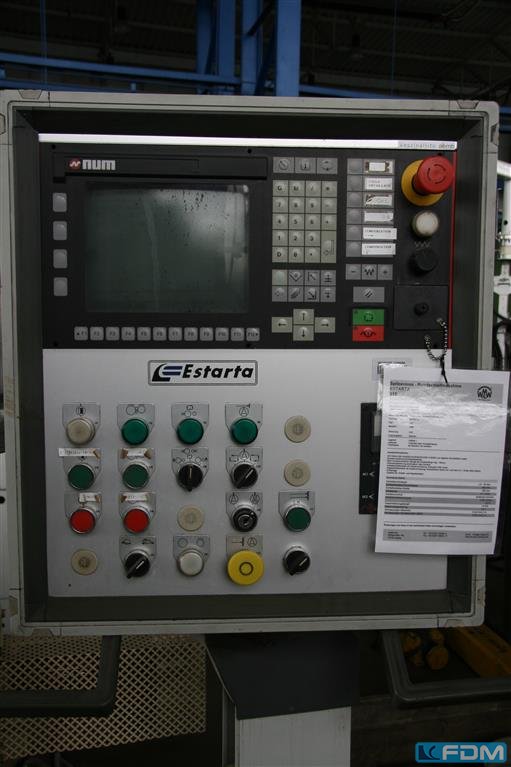

The machine is operating in manual mode! The control is in the Catalan language and none of our employees can control the machine or understand the language.
