Details

x-travel:

485 mm

y-travel:

385 mm

z-travel:

380 mm

control:

Contour 1 Bahnsteuerung

spindle taper ISO:

SK 40

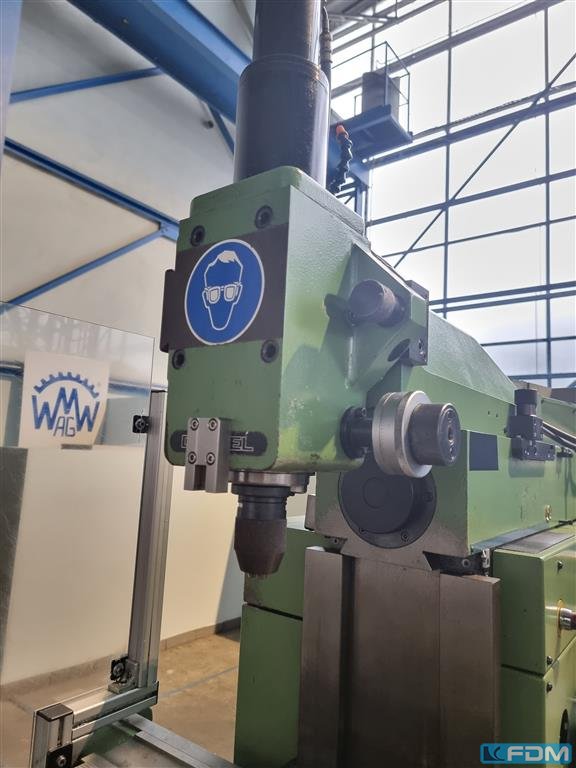

spindle head swivable left - right:

90° °

quill travel:

80 mm

milling head vertical adjustable:

150 ( y-Achse) mm

range of revolution per miute:

Spindel vertical: 50 - 2.500 / 18 step U/min

feed::

X/Y/Z: 2 - 1000 steples mm/min

rapid traverse :

X/Y/Z: 2000 mm/min

revolution per minute:

horizontal: bis 1.000 U/min

Table dimensions:

460 x 800 mm

table load:

0,4 t

total power requirement:

9,5 kVA

machine weight approx.:

1900 kg

dimension machine approx.LxWxH:

2,35 x 2,2 x 2,0 m

Description

-Equipment:

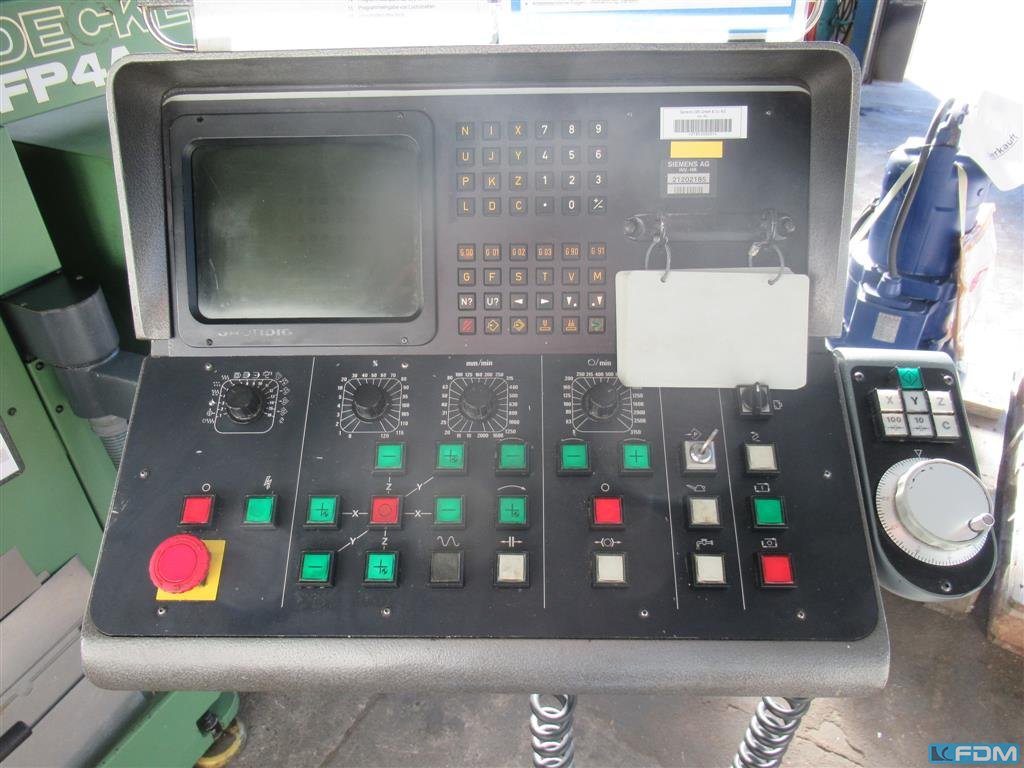

- Operation via control panel Grundig elektronic with boom
- Cooling with pump
- machine lighting
- Linear interpolation, circular polarization in XY and XZ planes
- quick chuck
- manual control unit
