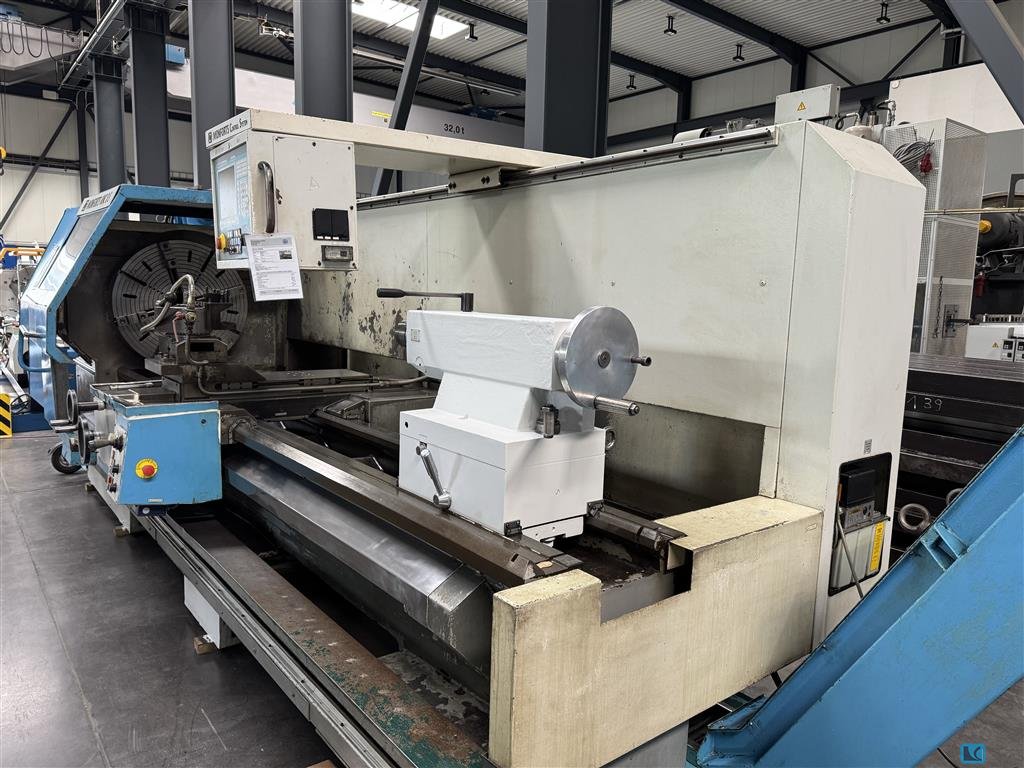

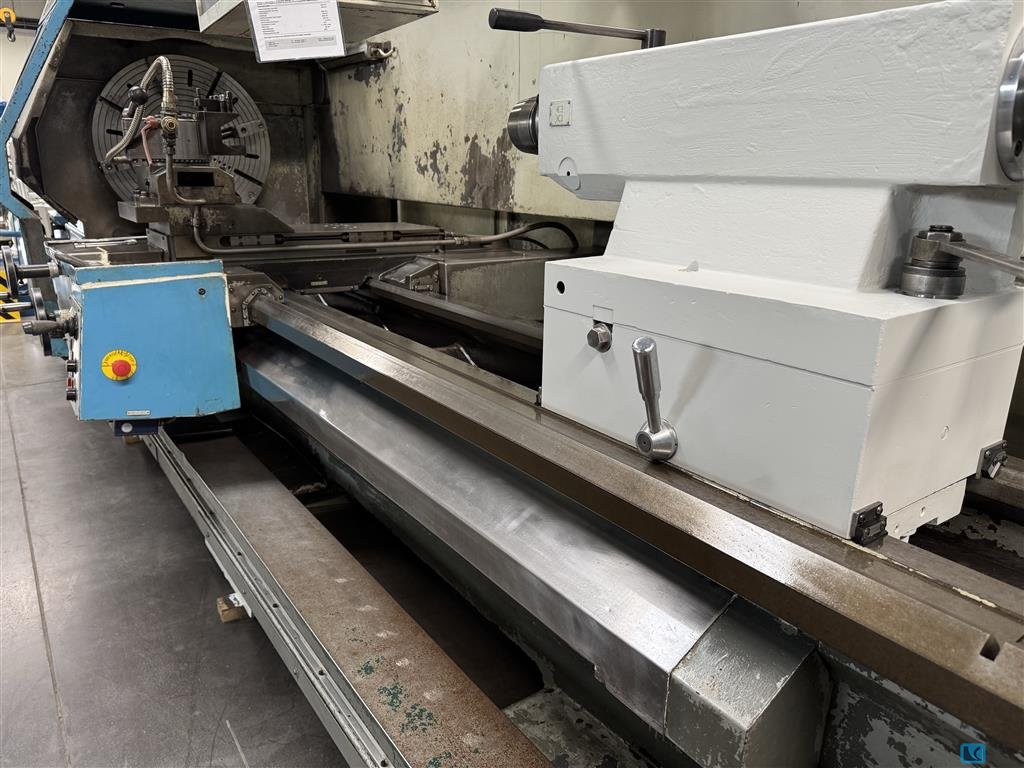

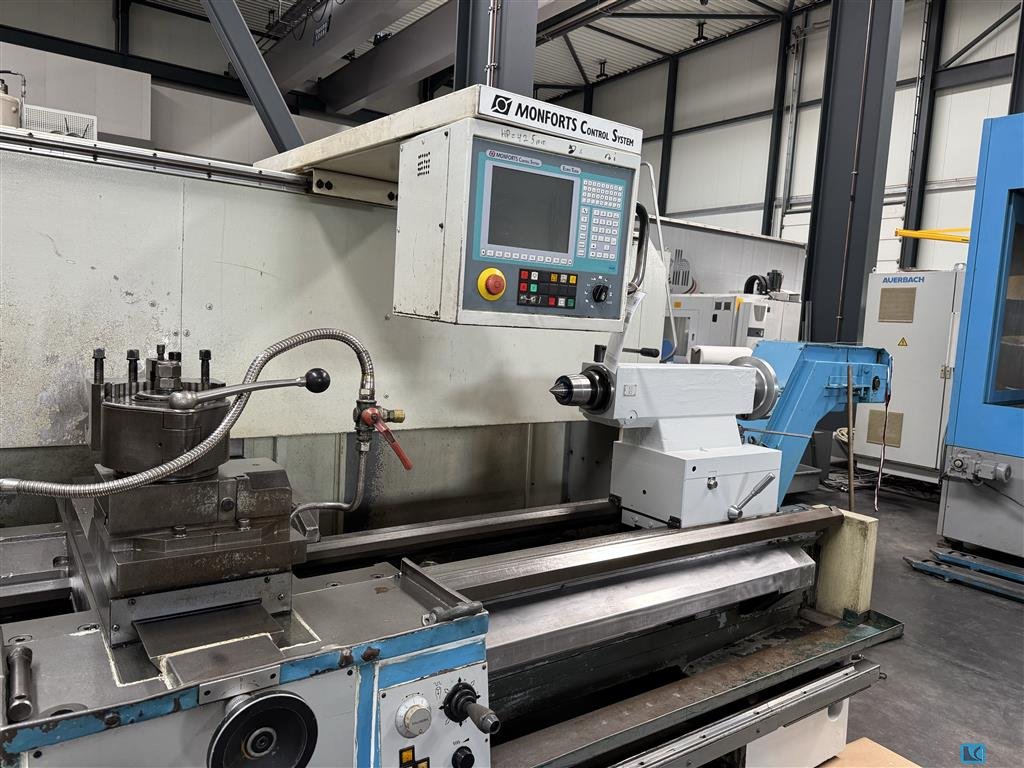

CNC Lathe
MONFORTS KNC 8S
- Stock number:
- 1087-0305012
- Year:
- 2002/2010
- Control unit:
- CNC (Zyklengesteuert)
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- expected
- Delivery time:
- by arrangement
Picture / documents / videos
Technical specs
Details
- turning diameter over bed:
- 830 mm
- turning dia. over face-slide:
- 540 mm
- turning length:
- 3000 mm
- turning diameter over support:
- 540 mm
- centre distance:
- 3000 mm
- faceplate diameter:
- 800 mm
- Rapid feed X axis:
- 4 m/min.
- control:
- MTC K (Monforts)
- range of revolution per miute:
- 2 -1.600 U/min
- spindle passage:
- 88 mm
- tailstock taper ISO:
- MK6
- tailstock quill stroke:
- 200 mm
- max. workpiece weight between centers:
- 1250 kg
- max. workpiece weight -without tailstock:
- 3000 kg
- turning dia. in gap:
- 1.200 mm
- length of gap:
- 310 mm
- Weight approx.:
- ca. 6.85 (ohne Späneförderer und Kühlmittelbehälter) t
- dimension machine approx.LxWxH:
- 2,55 x 1,1 x 1,29 m
Description
Cycle lathe
Machine overhauled in 2010
Operation via control panel
Thread cutting by calculation Interpolator of NC control
Chip conveyor manufacturer Cable drag
Three-jaw chuck D=500mm without clamping jaws
Various accessories
