Details

turning length:

310 mm

swing diameter over bed:

500 mm

swing diameter over bed slide:

290 mm

centre distance:

500 mm

x-axis:

190 mm

z-axis:

z1: 335 / z3: 370 mm

y-axis:

80 mm

revolution per minute:

6000 U/min

Control:

Heidenhain CNC Pilot 4290

spindle bore:

73 mm

bar material dia.:

50 mm

tool turret - number of stations:

12

tool taper:

VDI 30 mm

rapid traverse x + z axis:

30 m/min

operating hours - idle run:

36443 h

spindle hours:

8545 h

interface:

ja

total power requirement:

20 kVA kW

dimension swarf conveyor LxWxH:

3,2 x 0,45 x 1,5

Description

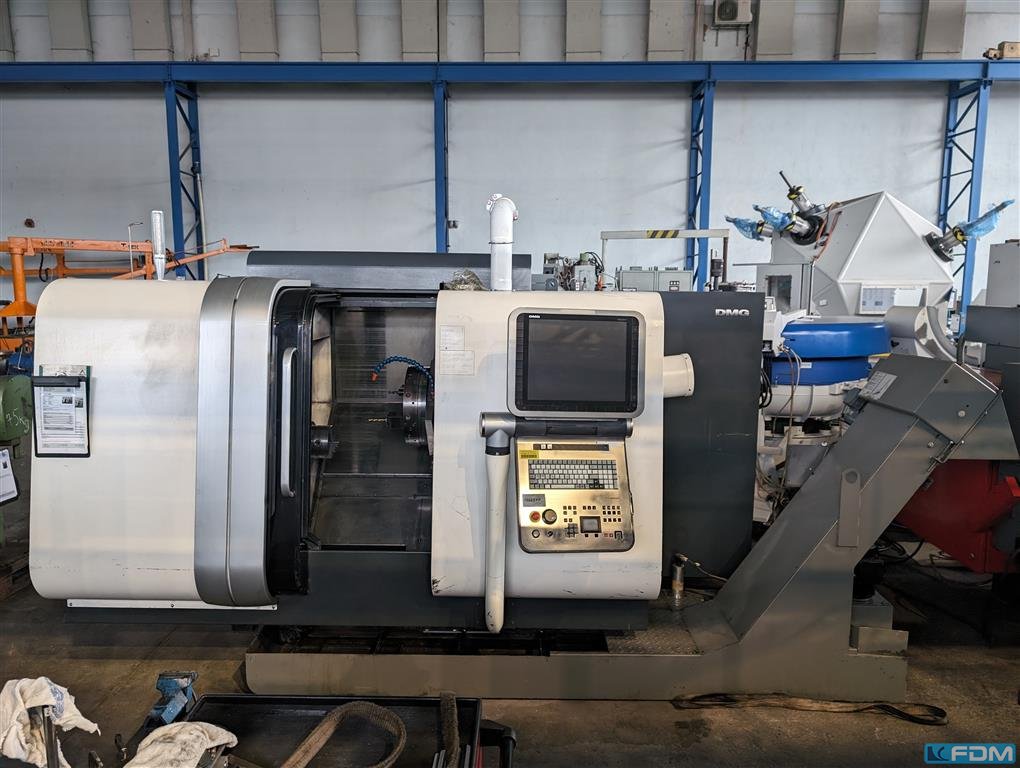

CNC inclined bed lathe
With a 3-jaw chuck Ø 160mm with matching flange (max. speed 4500 rpm) and 2 additional sets of spare jaws.

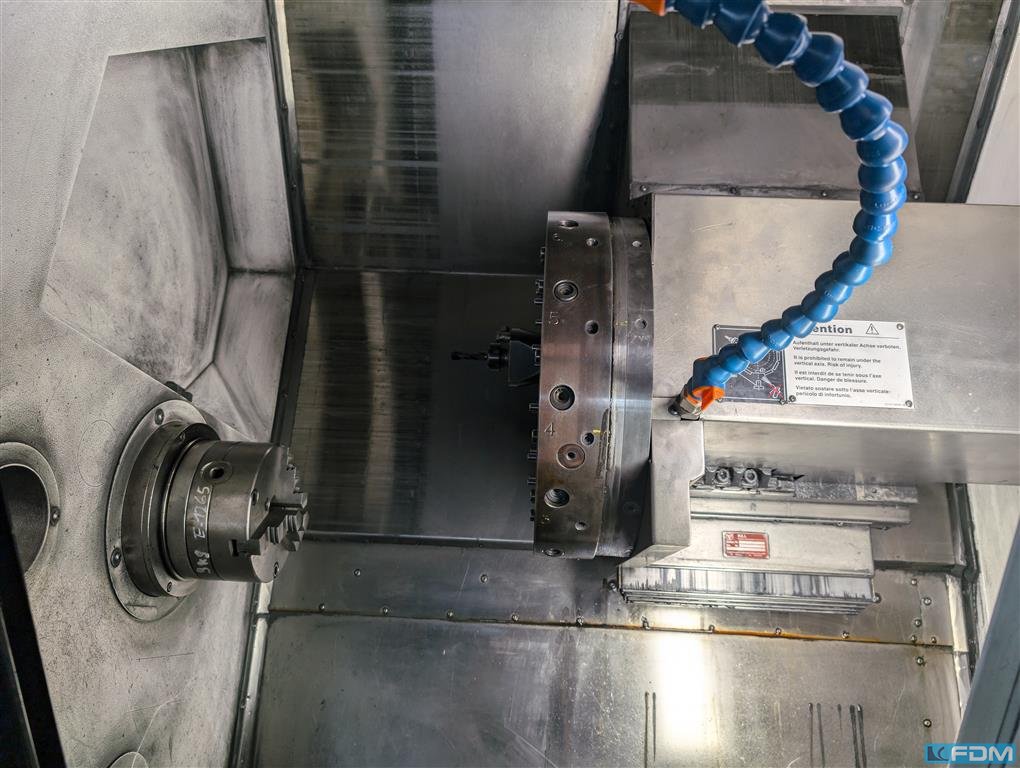

Turret head for 12 tools all with tool drive; Sauter disk turret (C-axis = 300 rpm)
Torque main spindle: 95 Nm at 100% and 127 Nm at 40%

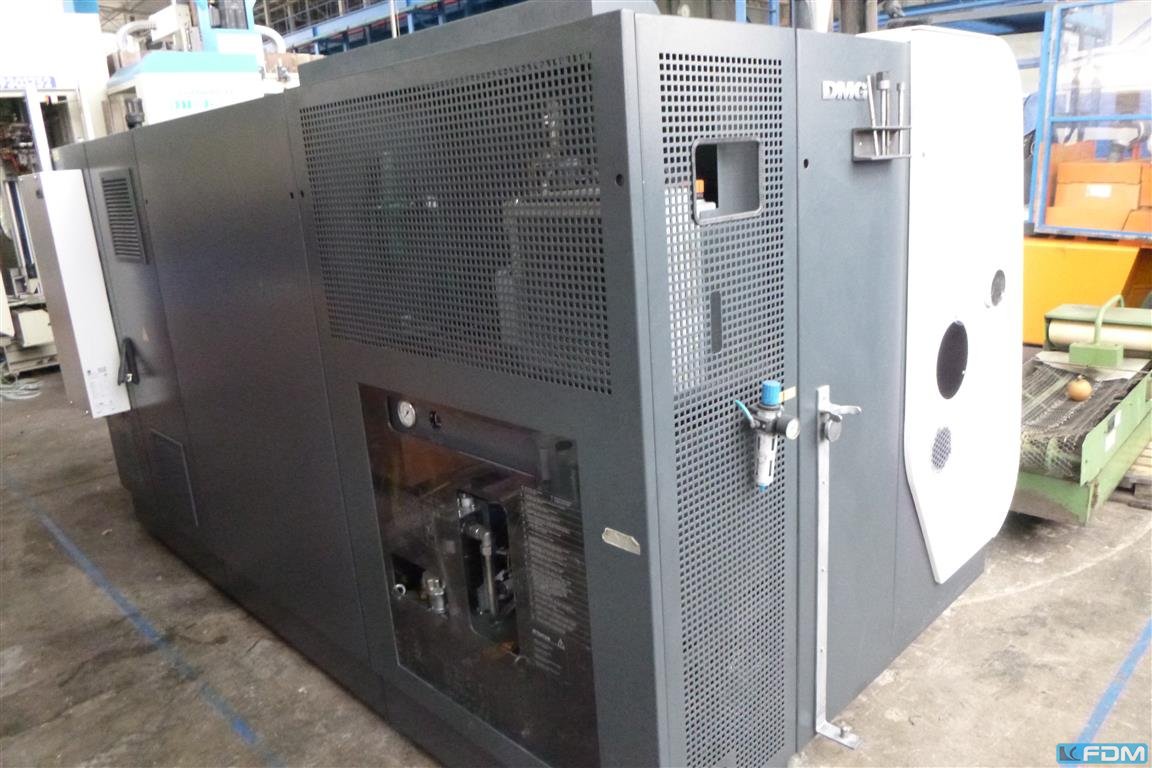

Chip conveyor 450 K-1/250; year of manufacture 2000

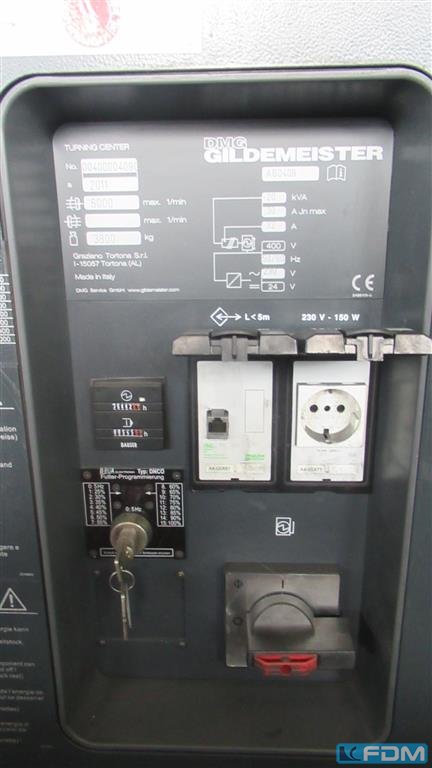

Electric cabinet with Rittal cooling
The machine does not have a hydraulic lathe chuck. This can be offered optionally at the customer's request (hydraulics and incl. chuck Ø=250mm).
Installation should then be carried out by the customer.
