Details

workpiece diameter - max.:

8 - 50 mm

workpiece length:

5 - 500 mm

spindle speed::

100 - 1000 U/min

workpiece diameter - max.:

Ø 50 / Vollmaterial mm

workpiece diameter - min.:

Ø 8 / Vollmaterial mm

workpiece diameter - max.:

Ø 70 / Rohr mm

workpiece diameter - min.:

Ø 8 / Rohr mm

wall strength:

1 - 10 mm

centre height:

300 mm

spindle hollow:

Ø 90 mm

cut-off length with swivable stop min/max.:

5 - 500 mm

total power requirement:

ca. 25 kW

weight of the machine ca.:

Anfrage t

dimension machine approx.LxWxH:

5.,8 x 1,5 x 1,7 m

dimensions electric cabinet:

1300x450x1950 mm

dimensions L x W x H:

panel de control: 0,36 x 0,30 x 0,68 m

dimensions L x W x H:

alimentación de material: 5,5 x 0,95 x 1,15 m

Description

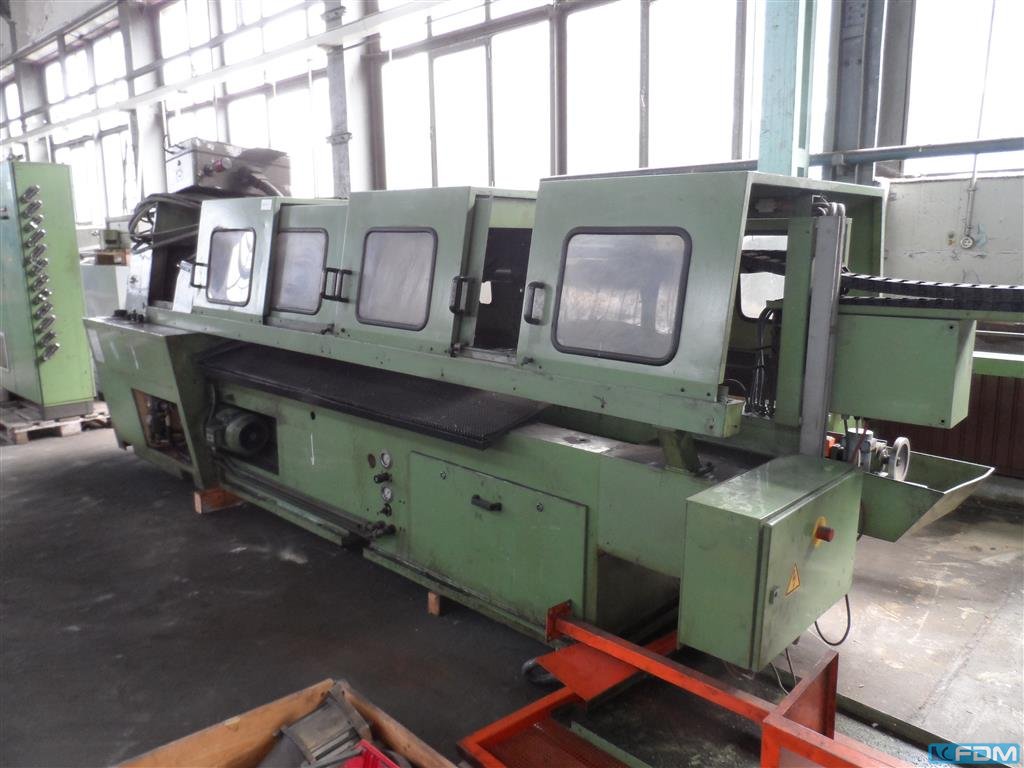

Facing and Centering Machine
(Manufacturing process cut to length and deburring possible)

Other features:
- turning speed of the parting head infinitely 100 - 1000 U / min.
- speed end machining 4 wheelsets with speed from 52 - 1320 rpm.
- feed push-off head continous, 0 - 0.3 mm / rev, hydraulic
- feed deburring device feed infinitely 0 - 175 mm / sec.
- feed head 0 - 0.03 mm / rev, continous

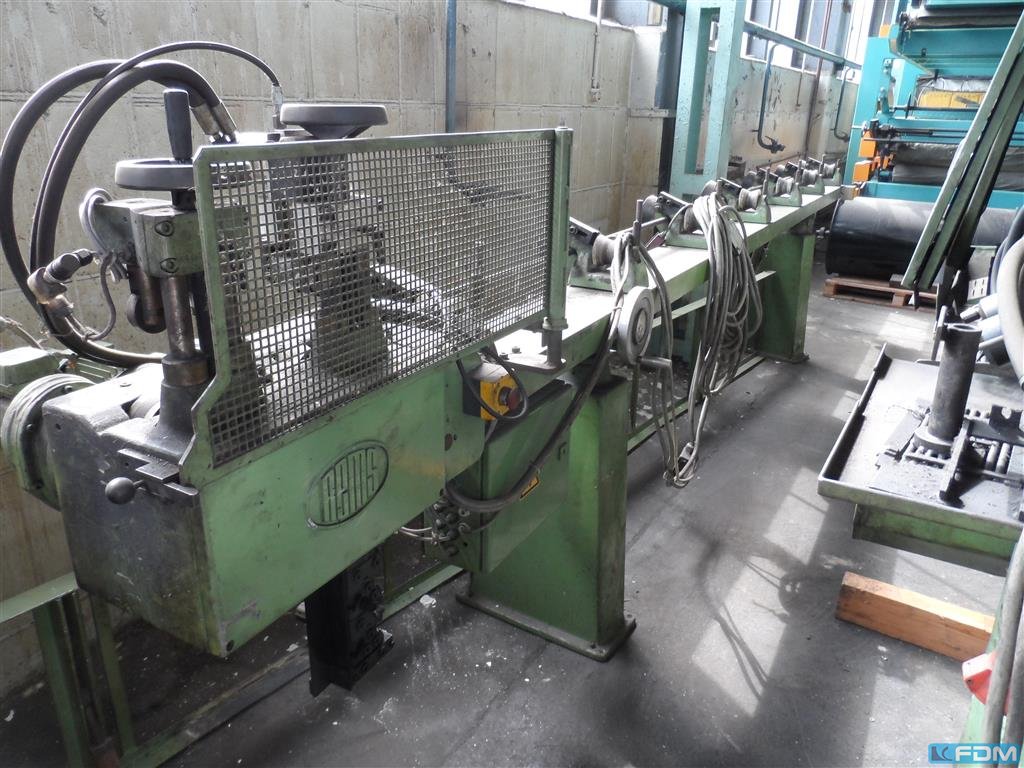

- material supply speed 170 mm / sec.

Operation is via operator panel / control panel
i.D.
