Details

vertical rapid adjustment:

z-Achse: 1125 mm

horizontal adjustment:

x-Achse: 600 (+1000 elektrisch-manuell) mm

cross adjustment:

Frässupport y-Achse: 325 (340) mm

control:

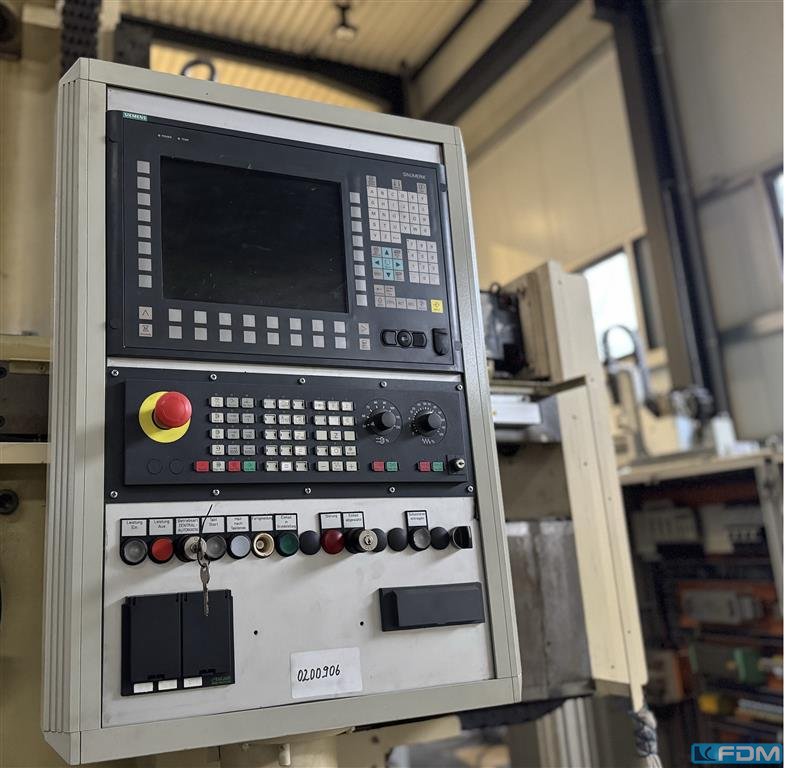

Siemens 840D

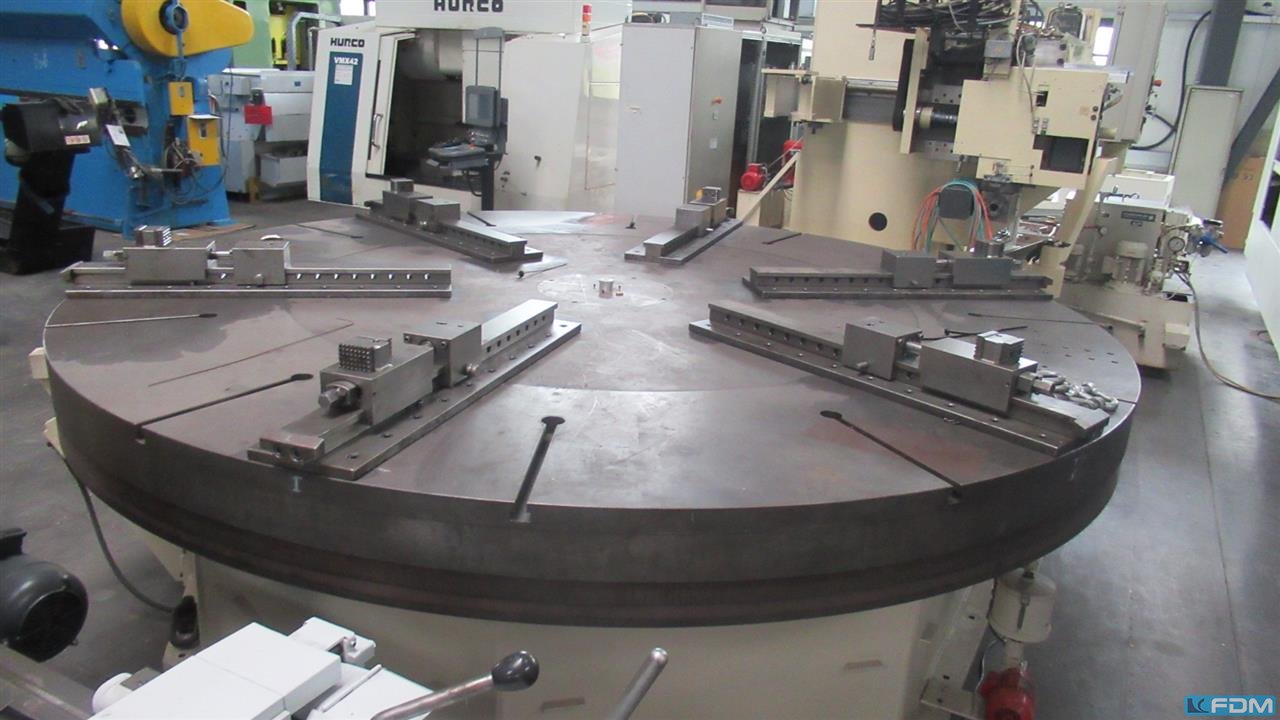

diameter of clamping surface:

3500/5800 mm

turning diameter:

max.6000 mm

range of revolution per miute:

Planscheibe: 1 - 12 U/min

revolution per minute:

Frässpindel: 1000-6000 U/min

max. workpiece diameter on pallets:

6000 mm

workpiece weight:

10 - 2000 kN

tool taper:

HSK-A-100

total power requirement:

120 kVA

weight of the machine ca.:

35,0 t

Description

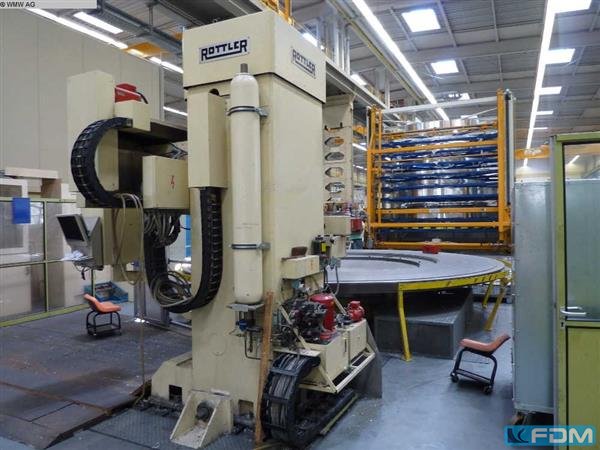

Annular Ring and Cylinder Machining Center Vertical
special CNC machining center

application:
for turning-drilling and milling, grinding of annular parts (large gears, roller slewing rings, gear rims, special flanges, etc.)

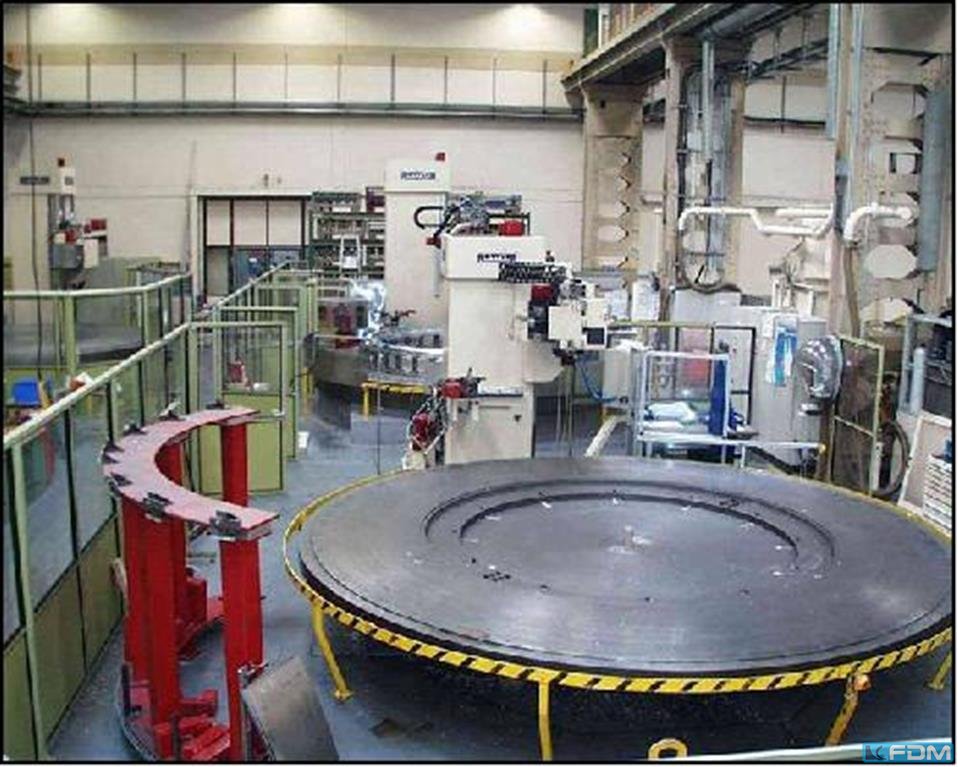

machine consists of two separate main groups: column unit and face plate/table unit
- Feed drives via AC servomotors

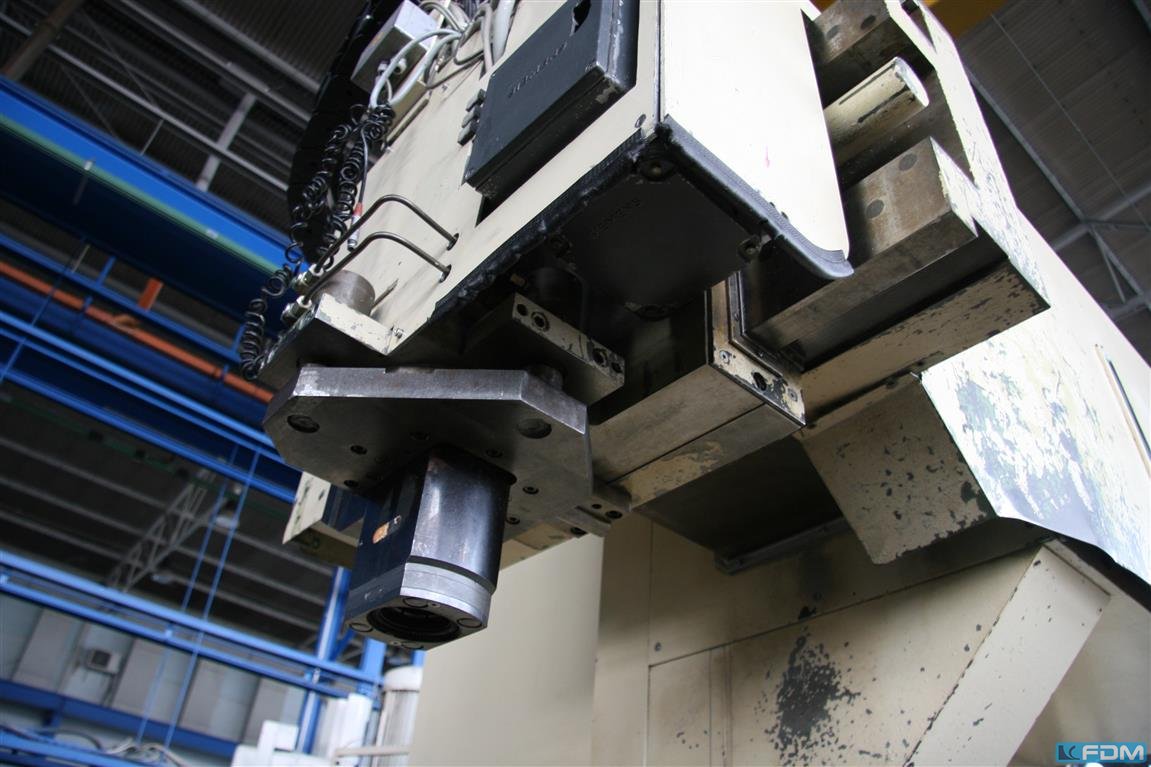

- cross adjustment milling support z-axis 325 (max.340) mm
- Drive power of the faceplate drive 76 kW
- Positioning of the table = 0,02mm

What was renewed:
- Axle motors were renewed (Siemens)
- Central lubrication for large-diameter antifriction bearings of the turntable/spindle has been extended
- partly the machine cabling
- bladder accumulator and the safety valve
