Details

z-travel:

400 mm

range of revolution per miute:

max. 3.000 / steples U/min

feed continuous:

keine Angaben

quill stroke vertical:

100 mm

spindle taper:

MK2

table surface area:

445 x 315 mm

distance table - lower edge spindle:

max. 520 mm

table travel:

längs: 250 mm

table travel:

quer: 330 mm

table height over floor:

920 mm

total power requirement:

1,6 kW

weight of the machine ca.:

1500 kg

machine dimensions LxWxH:

1,3 x 1,1 x 2,0 m

Description

Application: Milling and drilling slotted holes

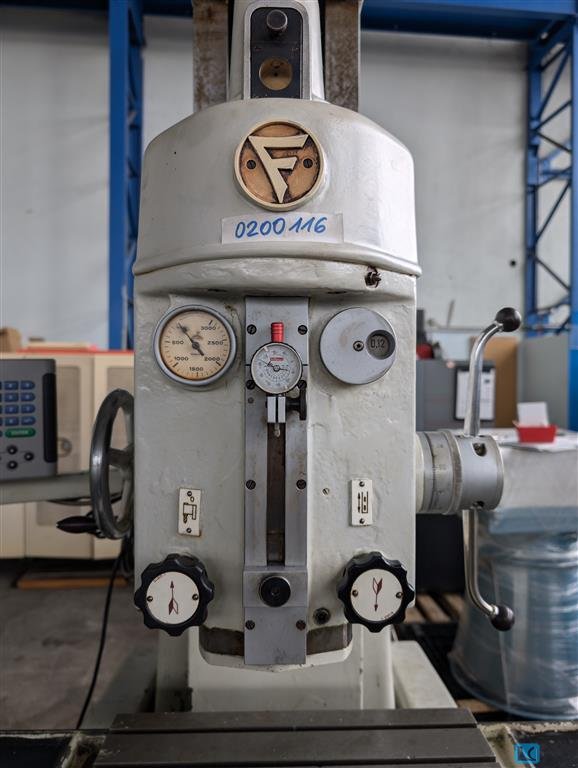

There is a precision dial gauge for depth display on the drill spindle head.

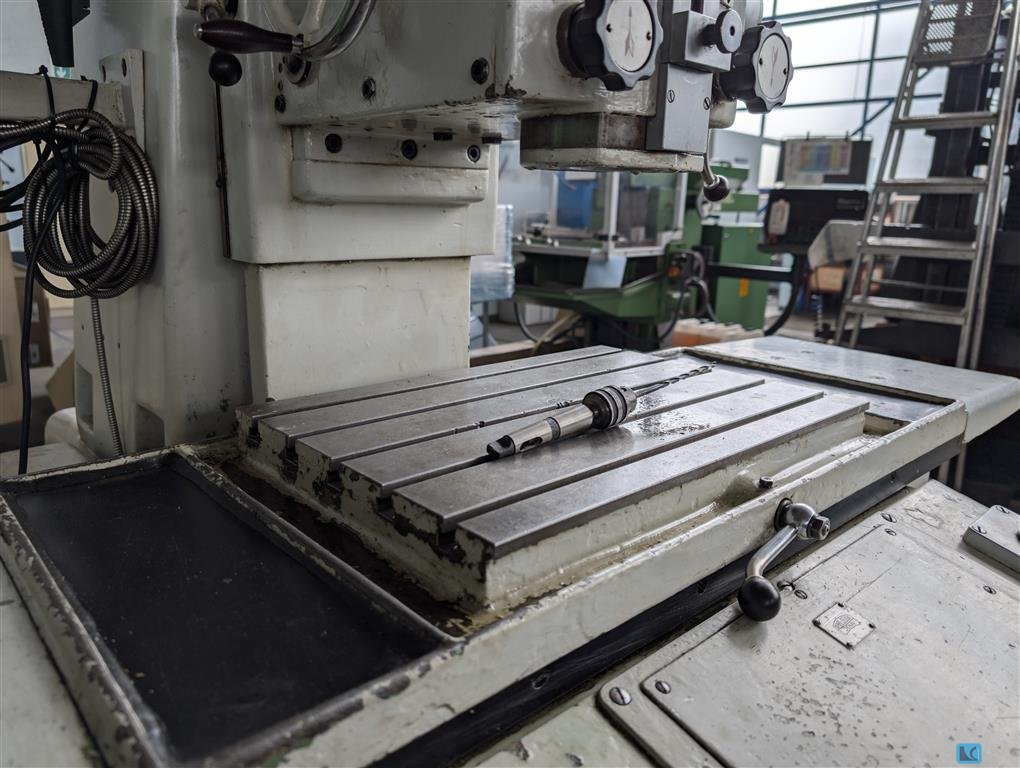

5x T-slots to DIN 650:
a=10; h=18; b=18; c=8mm
Features:

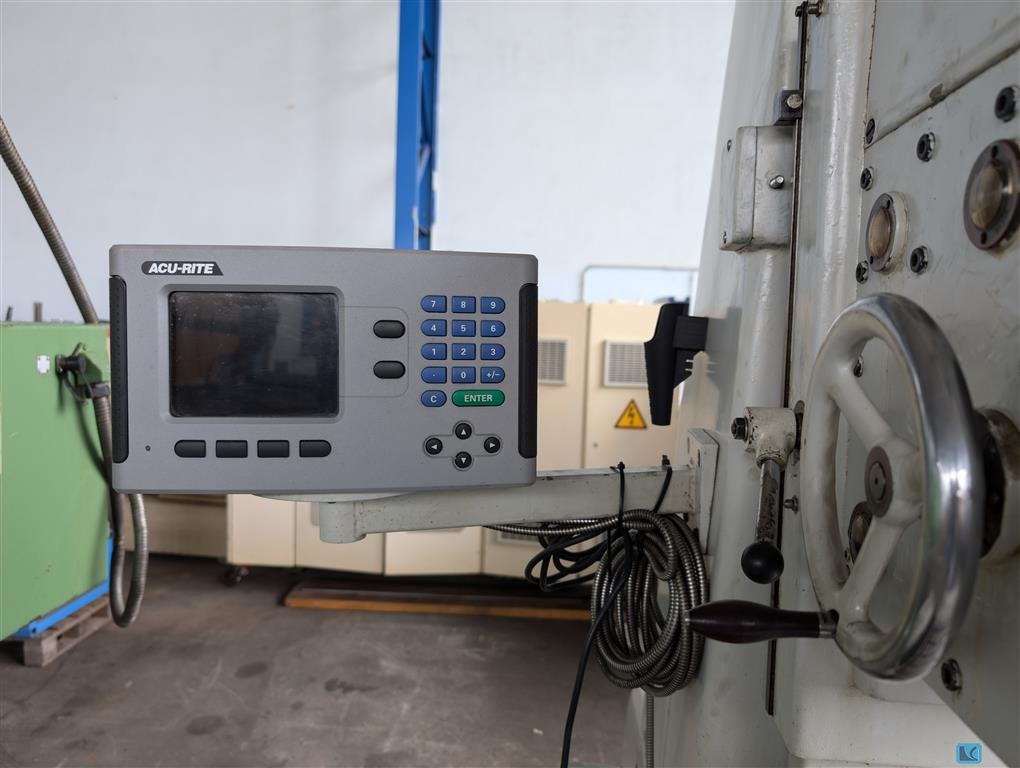

Two-way digital ACU-RIDE display
