Details

throat:

625 mm

number of strokes:

34 Hub/min

Punching capacity:

40 t

stroke:

80 mm

flat steel:

480 x 15 / 380 x 20 mm

U-H profile:

160 x 90

knife length:

483 mm

total power requirement:

7,5 kW

weight of the machine ca.:

2,7 t

dimension machine approx.LxWxH:

1,4 x 0,8 x 1,8 m

Description

hydraulische section steel shear

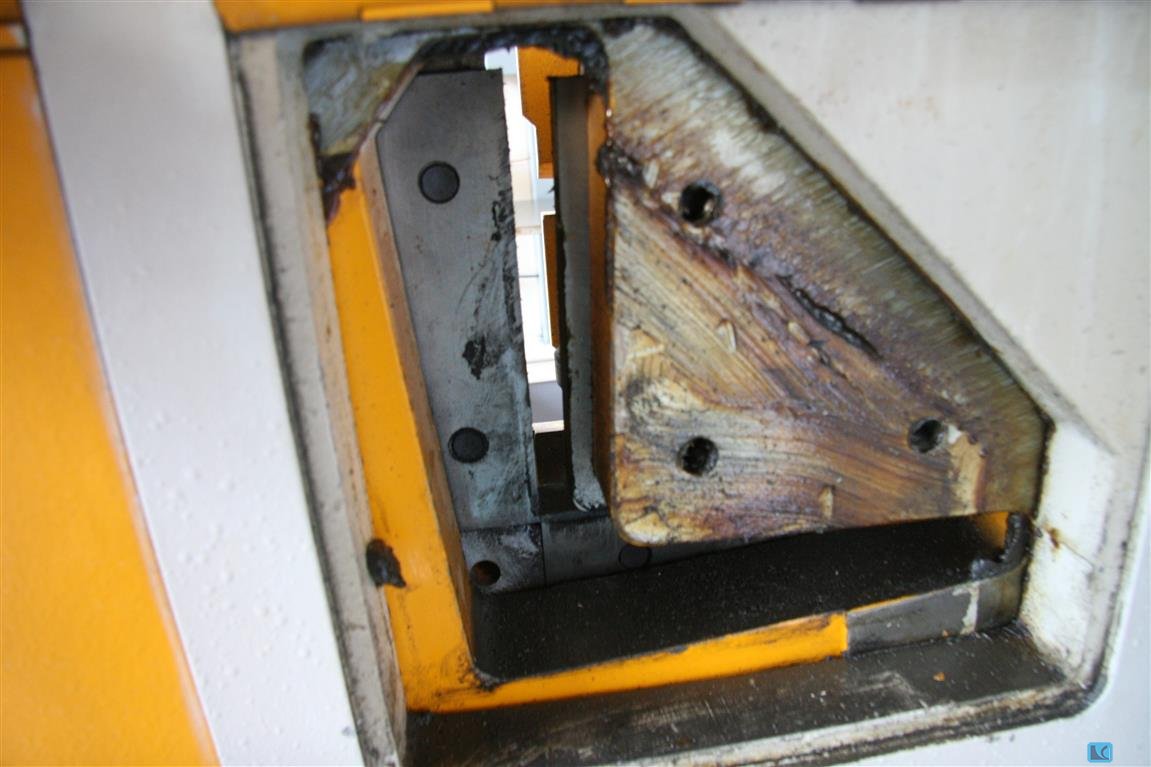

shearing station:
-shearing max. 380 x 20mm / 480 x 15mm
-shear cutting max. 120 x 15mm
-holder adjustable in length to 750mm
-knife cutting edges = upper knife 2-fold and lower knife 4-fold

profile station: processing of round and square profiles; U-profiles; double T-beams and unequal angles
-angle shearing max. 90° shearing = 150 x 15mm and 45° shearing = 80 x 10mm
-Profile cutting max. round steel = Ø 50mm; U-H profile = 160 x 90mm; T-profile = 120 x 12mm.

Punching:
-Table 600 x 600mm
-throat 625mm
-bore max: Ø 57 x 12mm
-working stroke 80mm; stroke rate 34 strokes/min; punching pressure 40to
-stop angle 200 x 100mm L=600mm

Notching station:
-Table size 450 x 450mm
-notching material thickness 13mm; width 52mm; depth V 90° 70 - 100mm; angle flange 100 x 13mm

Operation by foot switch
Some accessories available.
