Details

throat:

640 mm

round bar steel:

stanzen: Ø 26 x 20 mm

Punching capacity:

60 t

total power requirement:

5,5 kW

weight of the machine ca.:

2,0 t

dimension machine approx.LxWxH:

2,0 x 1,0 x 1,8 m

Description

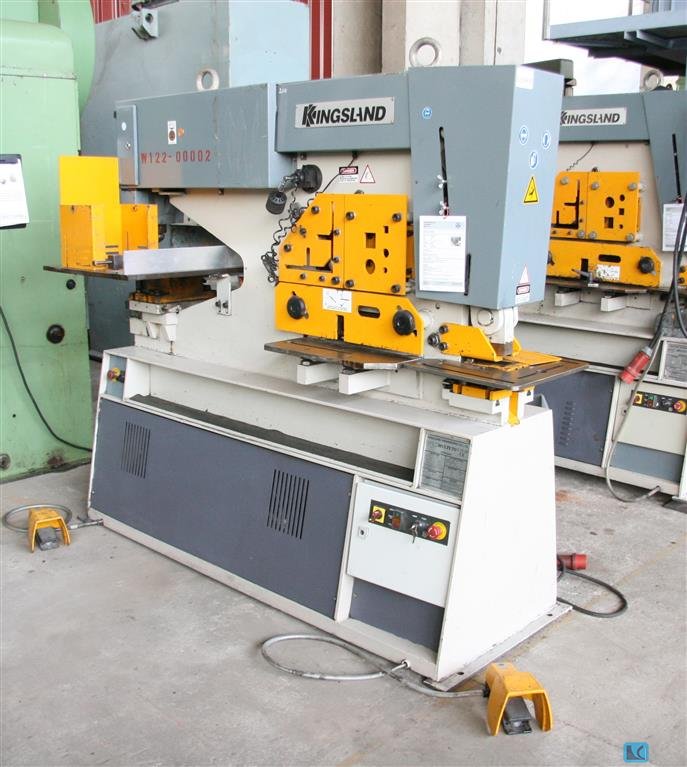

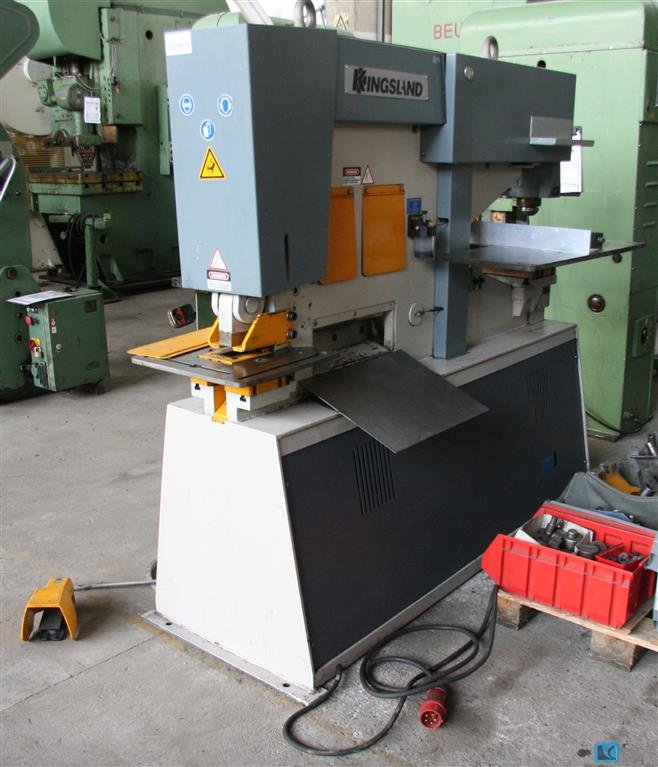

hydraulic section steel shearing machine

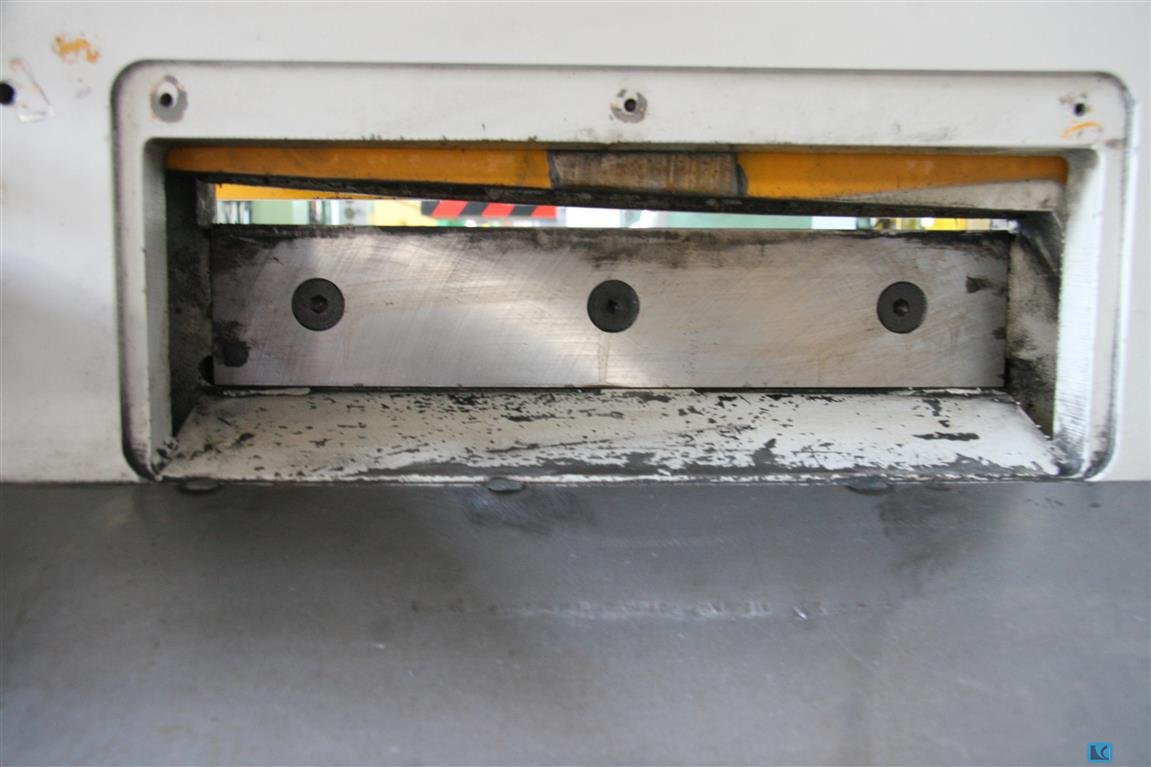

shearing station:
-shear max. 300 x 20mm / 375 x 15mm
-shear cutting max. 150 x 13mm
-holding-down device adjustable in length to 630mm

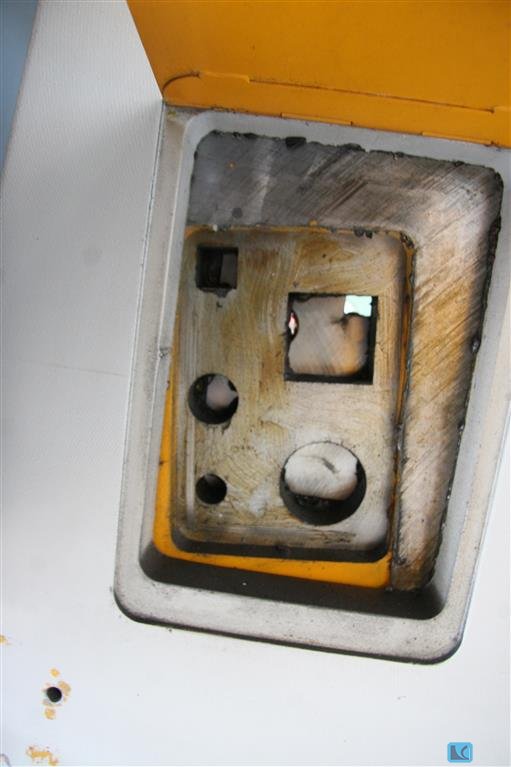

profile station: processing of round and square profiles; U-profiles; double T-beams and non-symmetrical angles

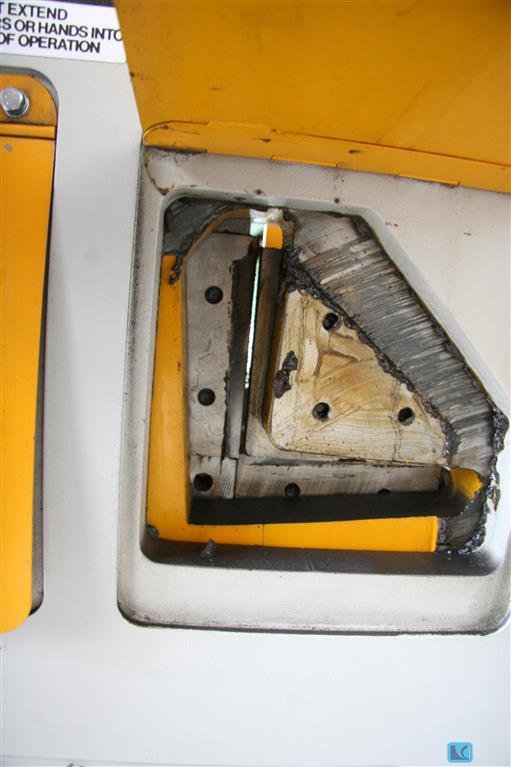

Angle/profile cutting
-angle steel max. 90° shearing = 150 x 15mm and 45° shearing = 80 x 10mm
-U-I profile = 130 x 65mm; T profile = 90 x 12mm
-profile cutting max: round steel Ø 45mm and square steel 45mm
-knife cutting edges fourfold

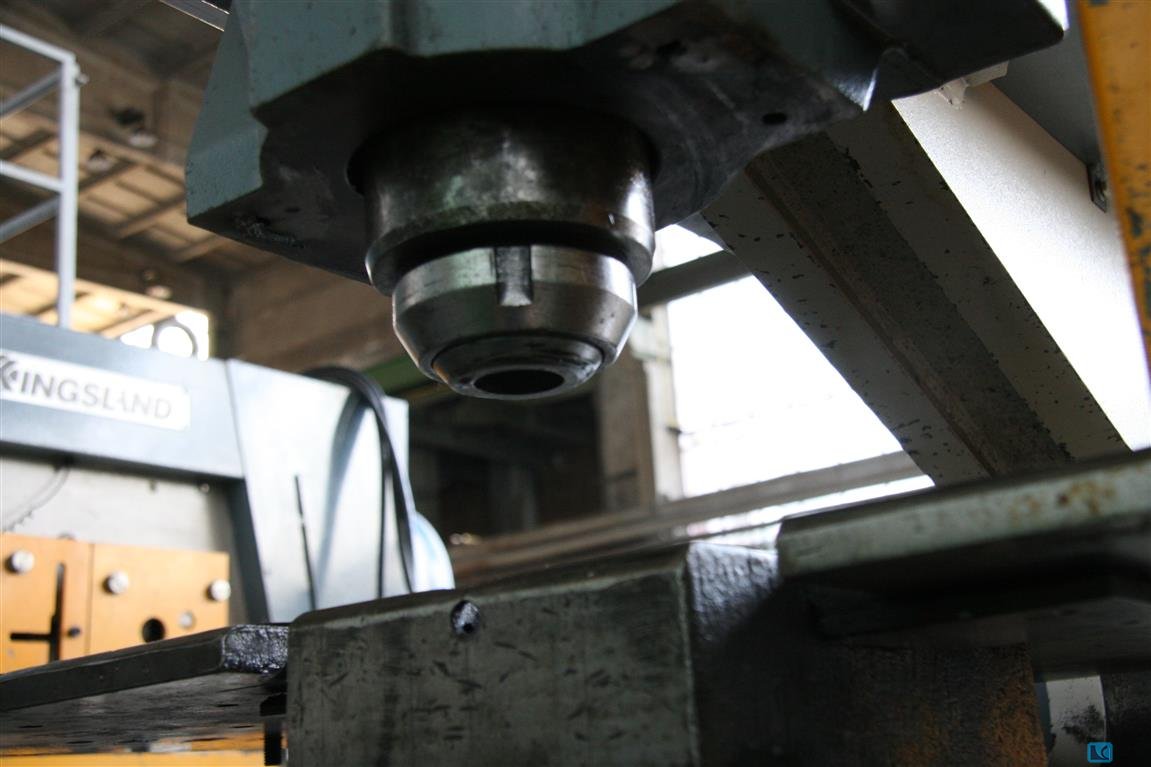

Punching station:
-Punching force 60to
-throat 640mm
-table WxD = 1000 x 600mm
-punching max. Ø x thickness: Ø 26 x 20mm and Ø 57 x 9mm
-slot punching D x W x D: 10 x 45 x 90mm
-through hole in table Ø 40mm
-Equipment: stop bar Al angle 100 x 80 x 1000mm

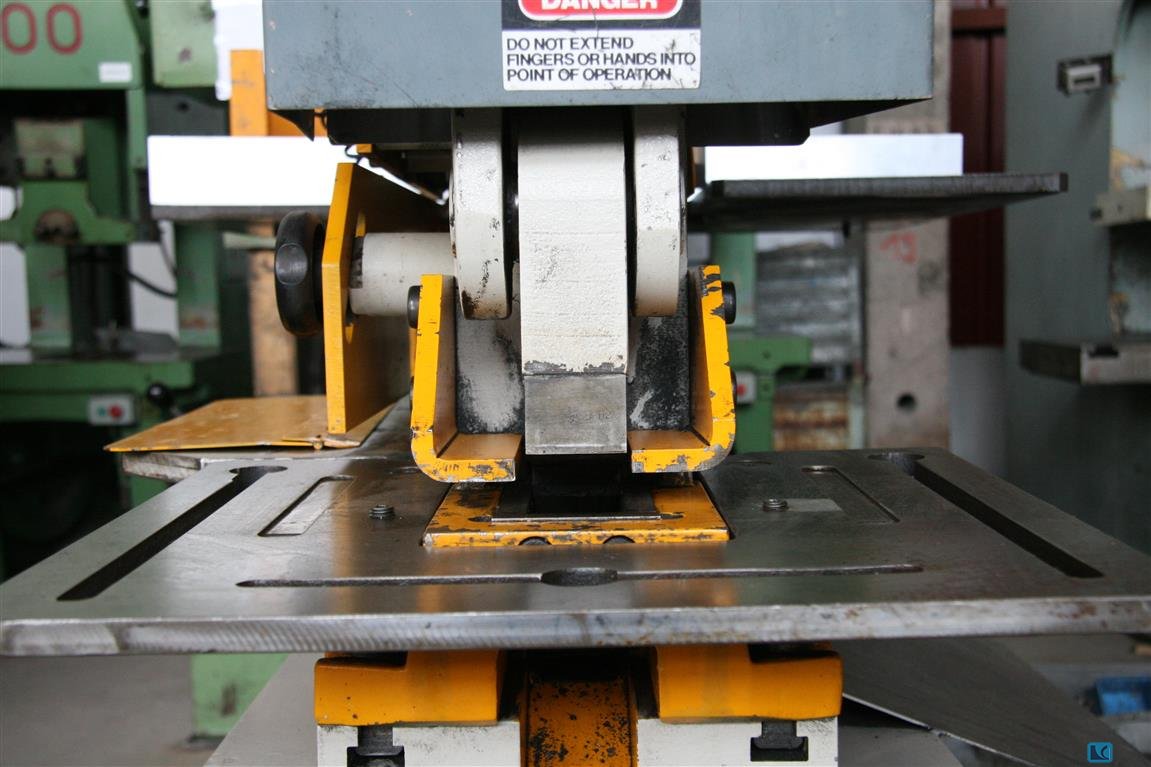

Notching station:
-Table W x D 430 x 380mm
-notches: material thickness 10mm; width 45mm; depth 60 - 90mm; angle flange 100 x 10mm

Punching:
-Table 600 x 600mm
-throat 625mm
-bore max: Ø 57 x 12mm
-working stroke 80mm; stroke rate 34 strokes/min; punching pressure 40to
-stop angle 200 x 100mm L=600mm

Notching station:
-Table size 450 x 450mm
-notching material thickness 13mm; width 52mm; depth V 90° 70 - 100mm; angle flange 100 x 13mm

Please ask for accessories.

Operation by foot switch
Some accessories available. Please ask.
