Details

punching pressure:

25 (250kN) t

pass through width:

1800 (1660 nutzbar) mm

daylight between the columns:

max./min.: 155 / 25 mm

stroke:

Stanzhub: 130 mm

total power requirement:

5,0 kW

weight of the machine ca.:

2,0 t

Dimensions (LxWxH):

2,3 x 1,0 x 2,2 m

Description

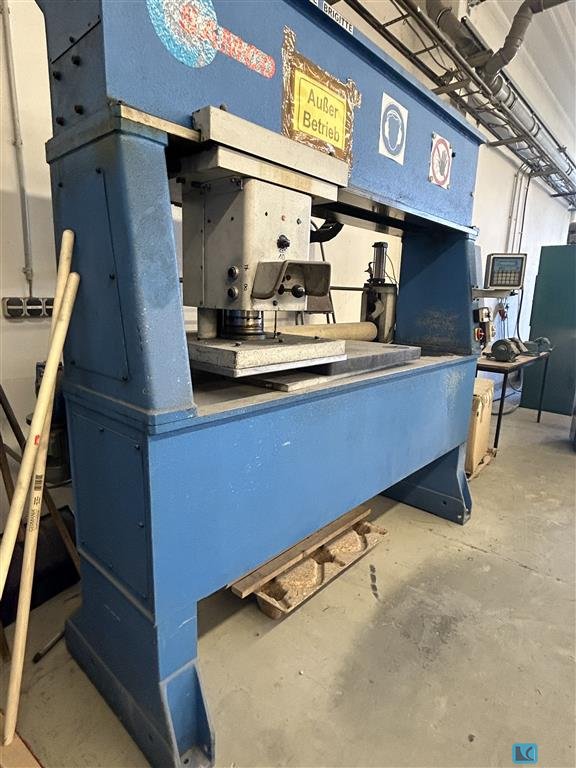

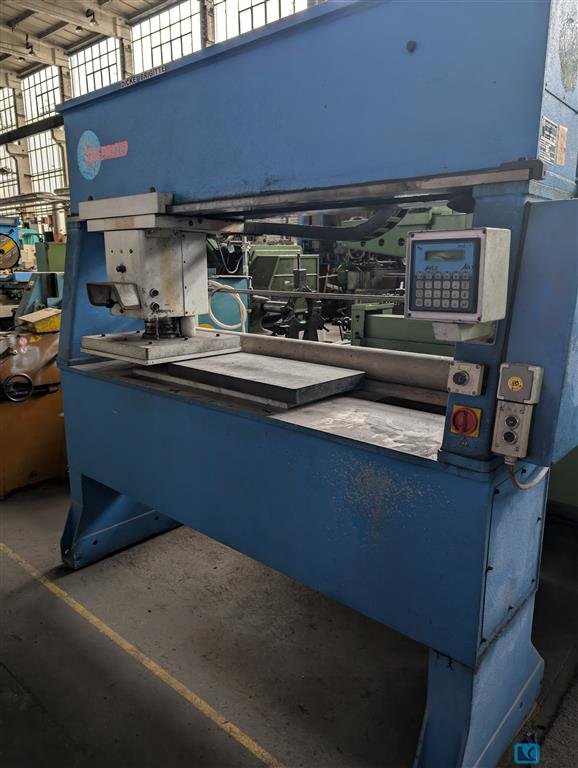

Hydraulic trolley beam punch
hydrl. pressure 250 bar
Punching table area = 1830 x 500 mm
Punching trolley/plate = 500 x 500 mm; travel speed = 800 mm/sec.; punching stroke = 63 mm/s, forward/return 125/125 mm/sec.
Operation via control panel and pressure switch/control lever
Equipment:
2x feed rollersØ 120 x 1630mm pneumatic close/open
