Details

Punching capacity:

40 kN

air pressure - required:

8 bar

ram stroke - adjustable min/max:

6 - 50 mm

ram adjustment:

50 mm

no. of strokes:

70 - 400 Hub/min

Table dimensions:

LxB: 480 x 445 mm

hole in table:

LxB: 250 x 112 mm

slowing-down time:

80 ms bei 450 U/min.

clamping surface ram:

LxB: 420 x 345 mm

ram hole:

Ø 40 x 230 mm

voltage:

380 V

control voltage:

220 V

frequency:

50 Hz

total power requirement:

ca. 19 kVA (ca. 7,5 KW)

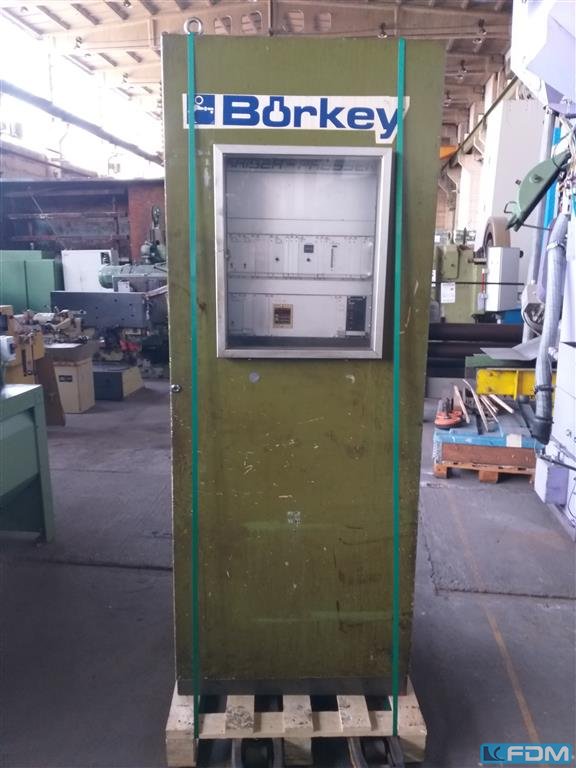

weight of switch cabinet:

0,3 t

machine weight ab.:

4000 kg

Description

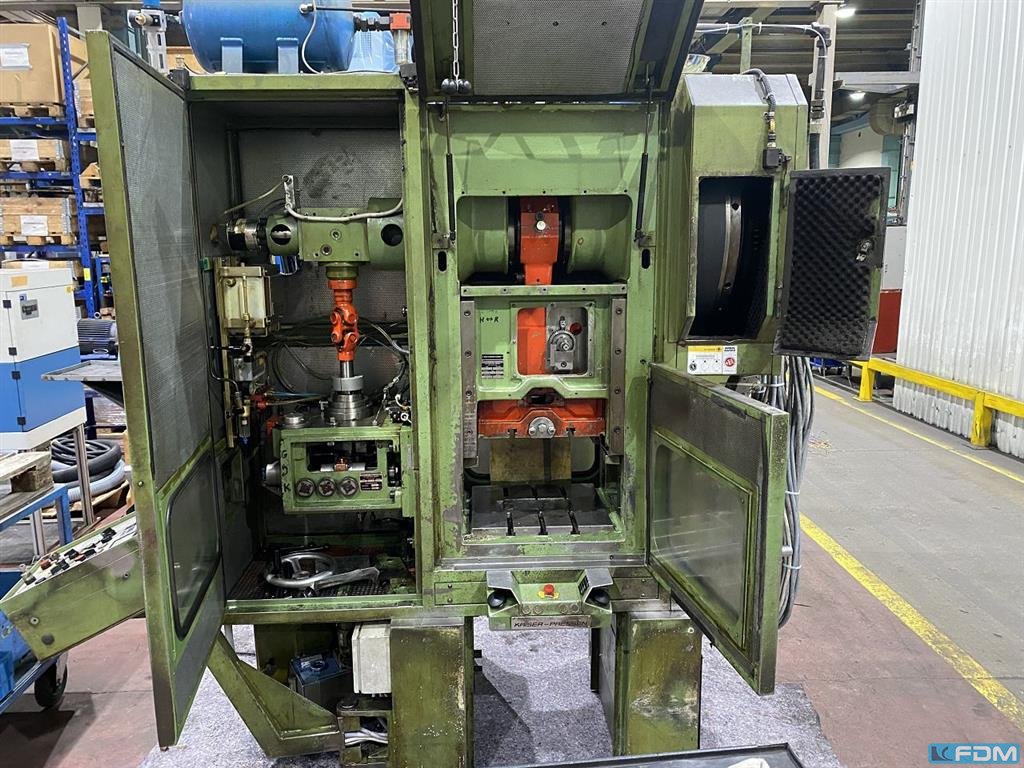

40t punching press without roll feed/conveyor belt system
Operation via control panel / two-hand operation
Operation: manual / automatic
