Details

sheet width:

2000 mm

plate thickness:

4 mm

distance between columns:

2070 mm

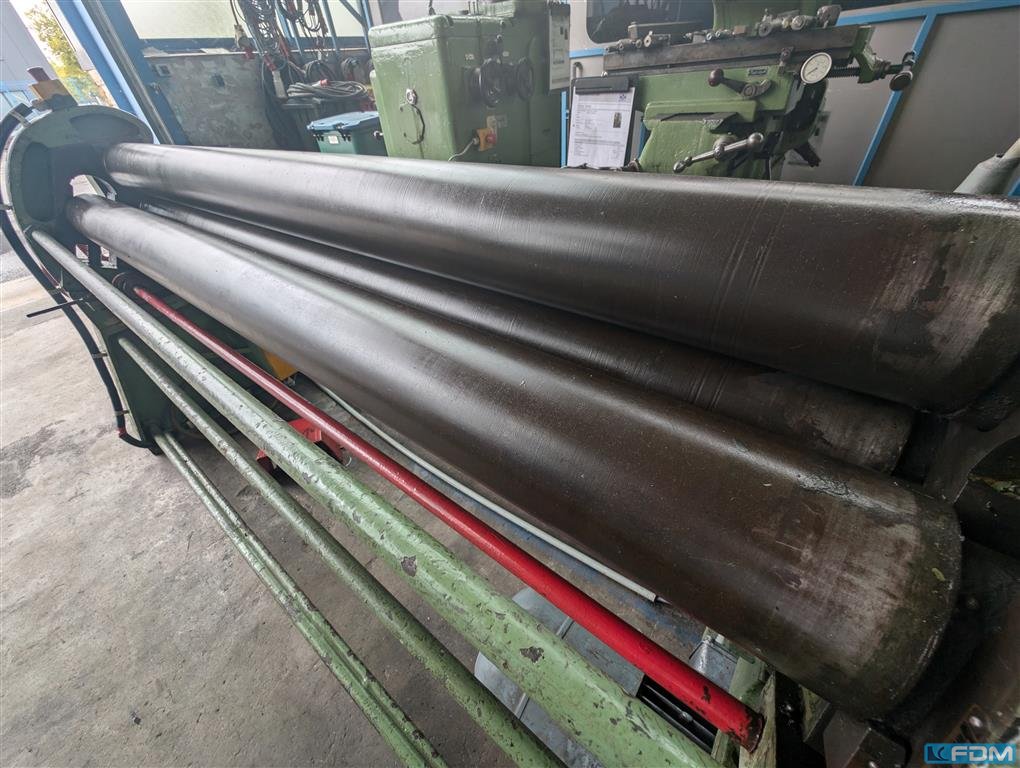

roll dia. top roll:

Ø142 (getrieben) mm

diameter of lower rolls:

1. Walze Ø 145 (getrieben) mm

diameter of lower rolls:

2. Walze Ø 145 (mitlaufend) mm

adjustment of lower rolls: manual/mech./hydr.:

1. Walze ca. 20 mm von Hand

adjustment of lower rolls: manual/mech./hydr.:

2. Walze ca. 180 mm von Hand

height over floor:

950 mm

total power requirement:

ca. 4,0 kW

dimension machine approx.LxWxH:

3,0 x 1,0 x 1,2 m

weight of the machine ca.:

ca. 2,5 t

Description

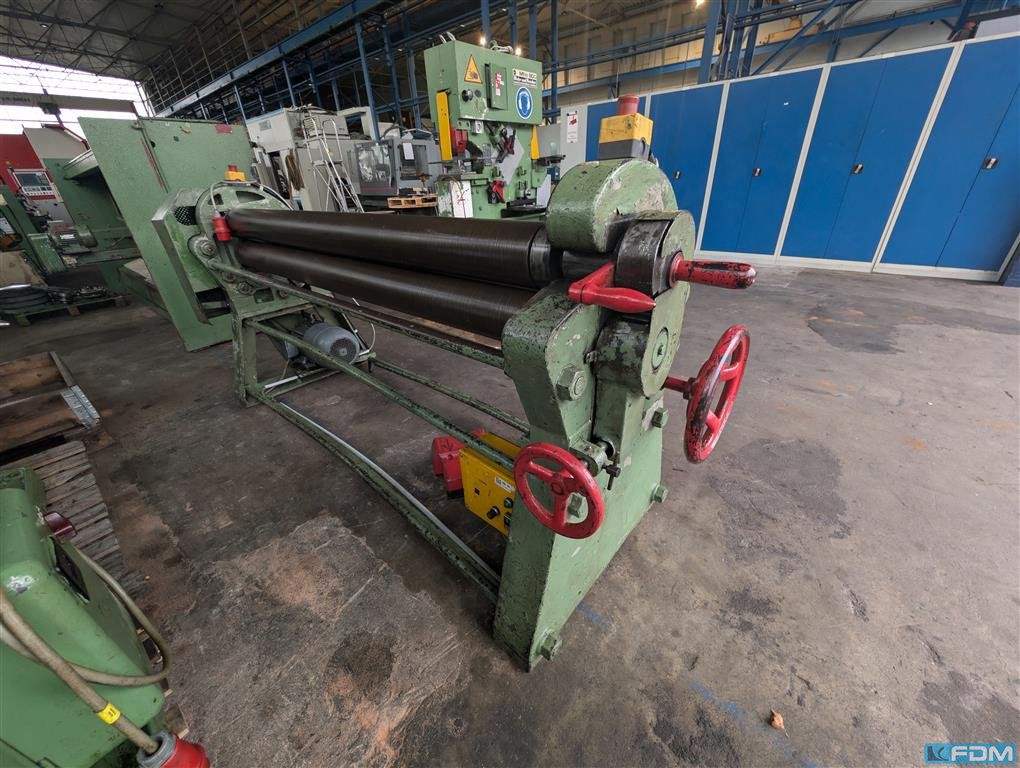

Mechanical 3-roll plate bending machine

Operation:
Hand switch / foot switch forward/backward
2x EMERGENCY button
