Details

tube diameter:

20 mm

bending radius max.:

100 mm

control for program:

S7-300

tube pipe draw up length:

2270 mm

air pressure - required:

7 bar

total power requirement:

15 kW

Bending speed:

540 °/sec

control voltage:

24 V / DC V

connection voltage:

400V / 50Hz / 3 Ph V

dimensions L x W x H:

Biegeaggregat: 1,8 x 1,4 x 1,6 m

dimensions L x W x H:

Zuführung: 1,2 x 1,5 x 1,55 m

dimension machine approx.LxWxH:

3,0 x 1,0 x 1,2 m

Description

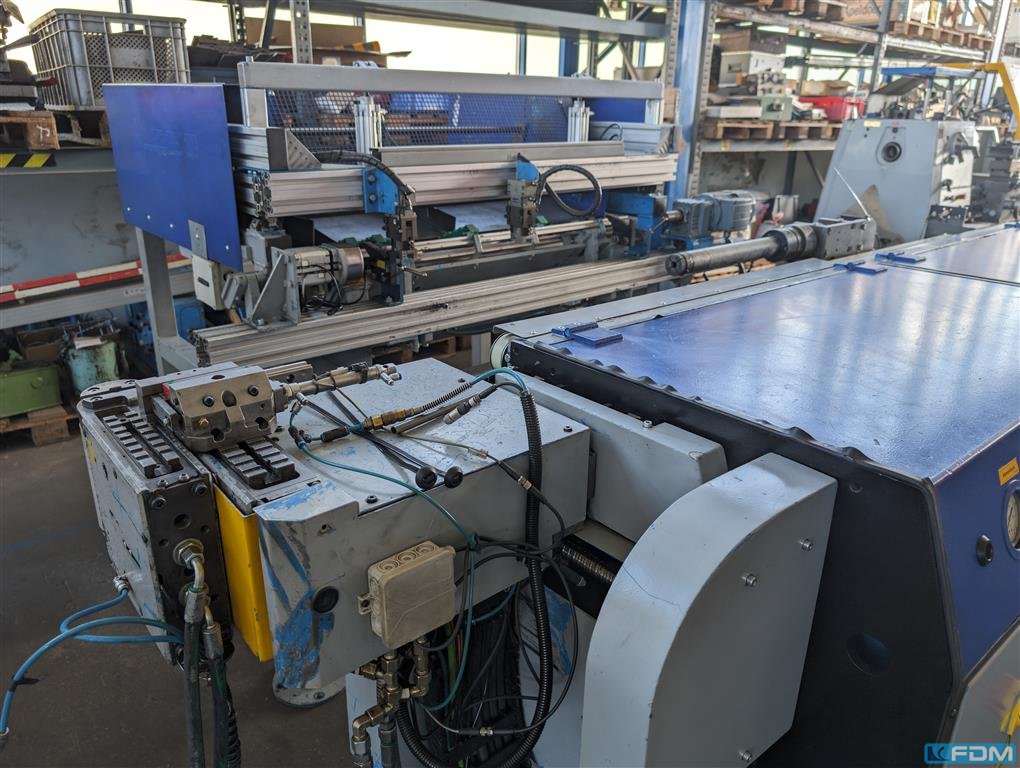

Mandrel tube bending machine

Bending direction RIGHT

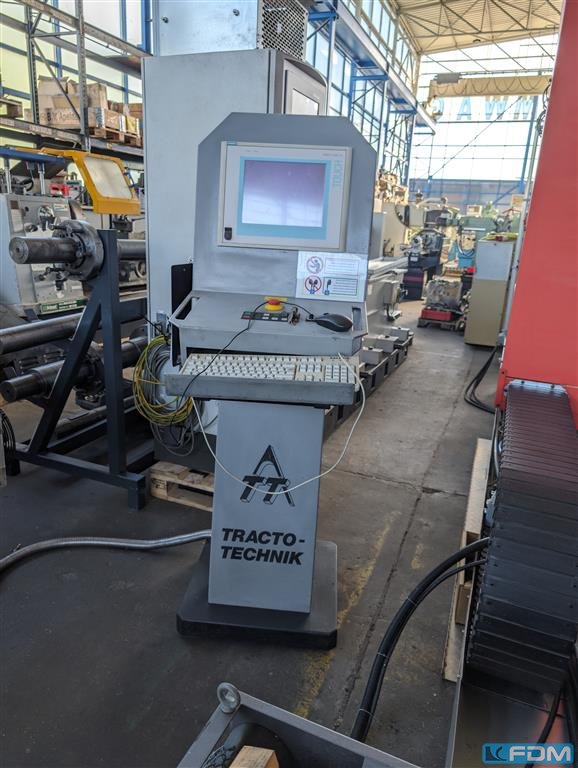

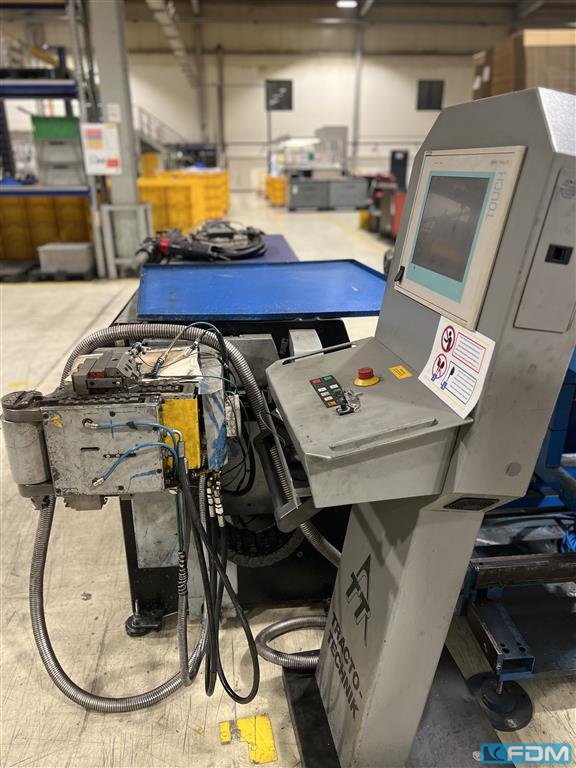

Operation via SIMANTIC Panel PC control unit
Pneumatics: Pressure 7 bar; flow rate 200 l/min.
Hydraulics: Pressure 150 bar; flow rate 6.8 l/min.
Equipment/Accessories:
-oil drip tray 3.1 x 0.96 x 0.02m

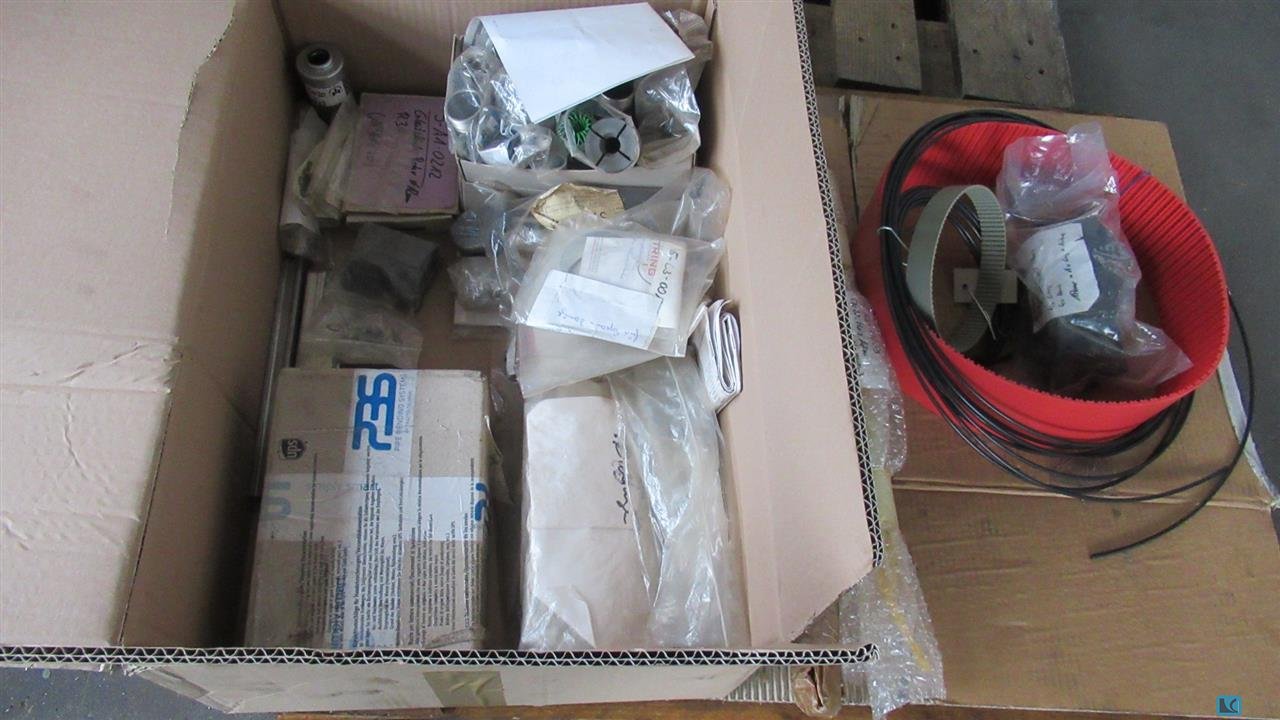

-Spare parts and accessories
