Lathes - Vertical Turret Lathe - Single Column - IMTI KDM-K 16| KDM-K 20 | KDM-K 23 | KDM-K 26

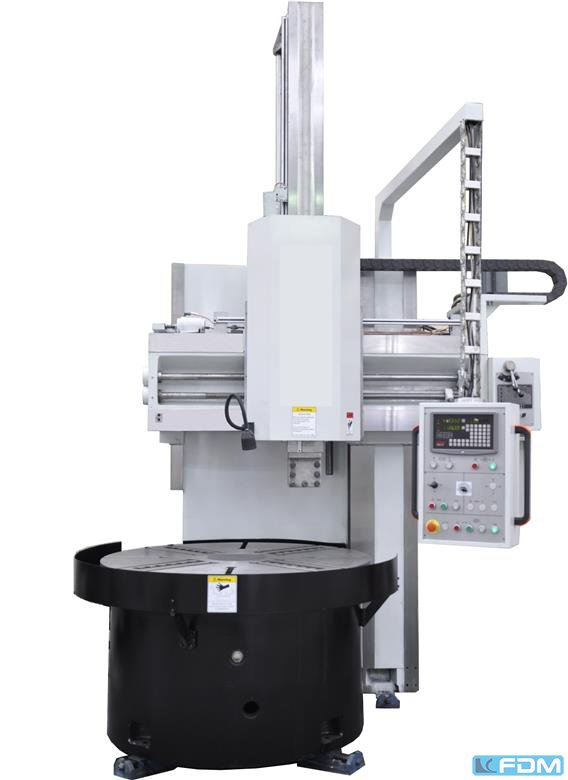

Vertical Turret Lathe - Single Column

IMTI KDM-K 16| KDM-K 20 | KDM-K 23 | KDM-K 26

Stock number:
1124-914520
Year / Condition:
Fabrikneu / New
Control unit:
conventional (oder CNC)
Country of origin:
China
Freight basis:
FOB China
Item location:

Delivery time:
ca. 4-5 month after sales conf

Picture / documents / videos

Technical specs

Details

:
KDM-K 16 KDM-K 20 KDM-K 23 KDM-K 26
faceplate diameter:
1400 mm1800 mm2000 mm2250 mm
swing diameter:
1600 mm2000 mm2300 mm2600 mm
turning height:
1250 mm1400 mm1600 mm2000 mm
table speeds:
5-160 m/min3.2-100 m/min5-160 m/min2-63 m/min
transmission ratio:
16
max. workpiece weight:
5 t8 t8 t10 t
rapid feed of tool post:
1800 mm/min
feed speeds:
0,8-86  mm/min in X-Achse
Travel of Ram (vertical):
800/1000 mm800/1000 mm800/1000/1300 mm1000 mm
Travel of ram (horiz.):
915 mm1115 mm1250 mm1500 mm
max. vertical adjustment of side-support:
900 mm900 mm980 mm980 mm
max. horizontal adjustment of side-support:
630 mm630 mm500 mm500 mm
Cross rail travel :
850/1100 mm
power maindrive:
12 kW18 kW37 kW37 kW
weight of the machine ca.:
14 t18 t23 t26 t
Machine size (LxWxH):
2660x26603698 mm3135x3070x3910 mm3380x3360x4300 mm3675x3355x5100 mm

Accerories


tool holder

central lubrication


foundation bolts

tools

technical documentation in German language


CE-design

4 jaw chuck

European electric

heat exchanger



side tool carriage
motors and inverter from Siemens
servo motors
higher column
ATC
CNC controls from
