Details

grinding diameter:

1000 mm

grinding length:

6000 mm

centre height:

510 mm

max. workpiece weight:

1800 (zw. Spitzen) kg

max. workpiece weight:

7000 (m. Lünetten) kg

grinding spindle speed:

400-1200 1/min

grinding wheel diameter:

915 mm

grinding wheel width:

100 mm

grinding wheel peripheral speeds::

35 m/sec

cross adjustment:

autom. 0,001 mm

cross adjustment:

mit Handrad: 0,001/0,01/0,1 mm

table travel:

6200 mm

table speed -stepless-:

10~4500 mm/min

Rotation speed of workhead :

3~30 1/min

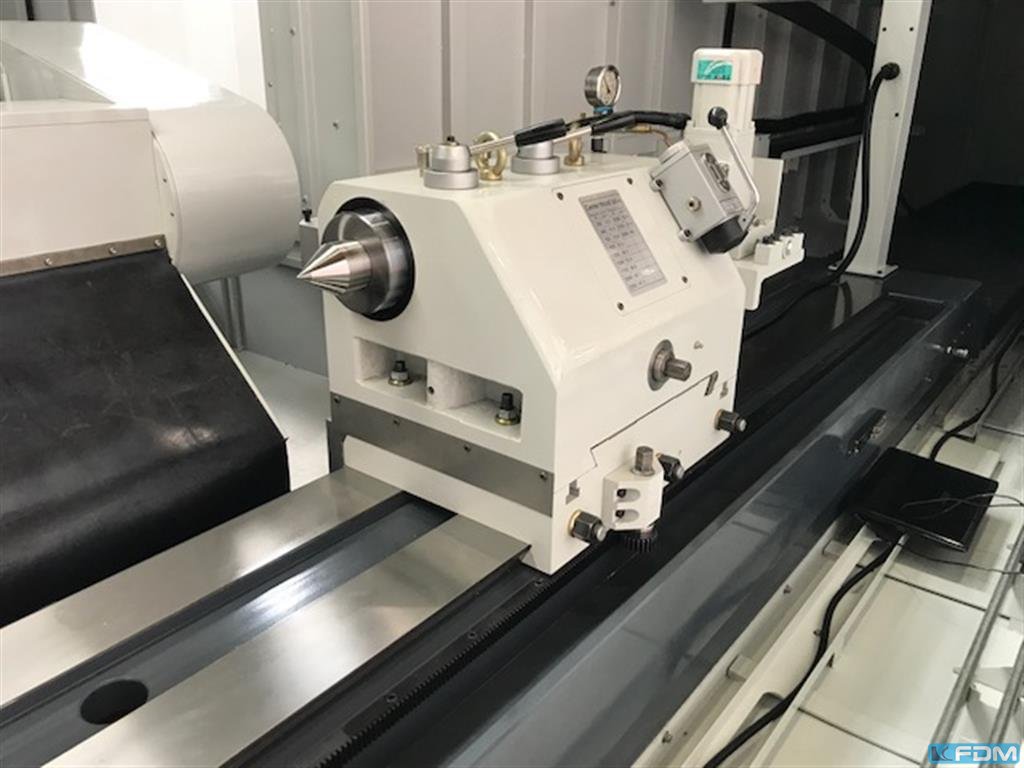

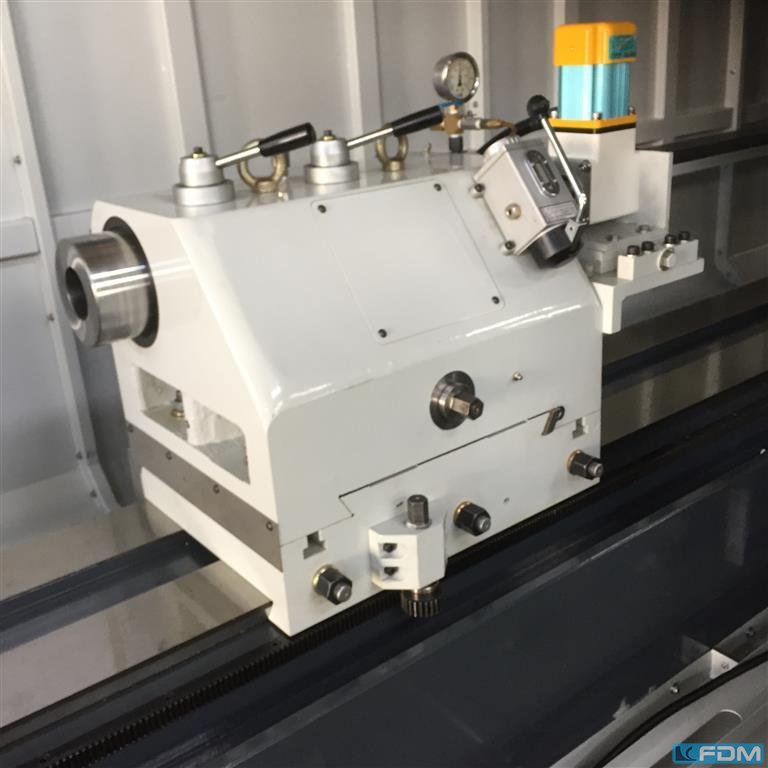

tailstock quill stroke:

150 mm

taper in tailstock-quill:

6 MK

tailstock adjustment:

über Pneumatik

tailstock quill adjustment:

manuell

spindle drive:

30 kW

Weight approx.:

26 t

dimensions:

17500x3700x1900 mm

surface roughness:

max. 0.3µm Ra

cylindricity:

0.002~0.005 mm/m

roundness:

0.002~0.005 mm

Accerories

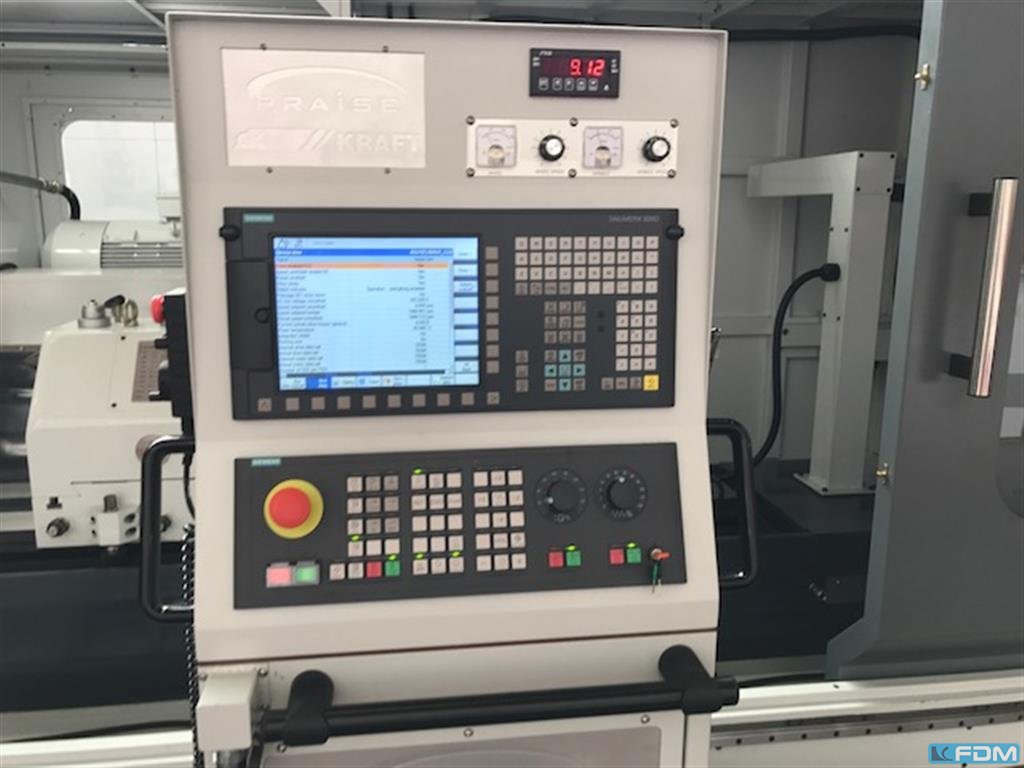

CNC controller:

Siemens 828D mit Schleifzyklen



CE-design



fully enclosed:

Optional

automatic cooling and lubrication system



grinding wheel dresser manual



grinding wheel flange



open steady:

Optional

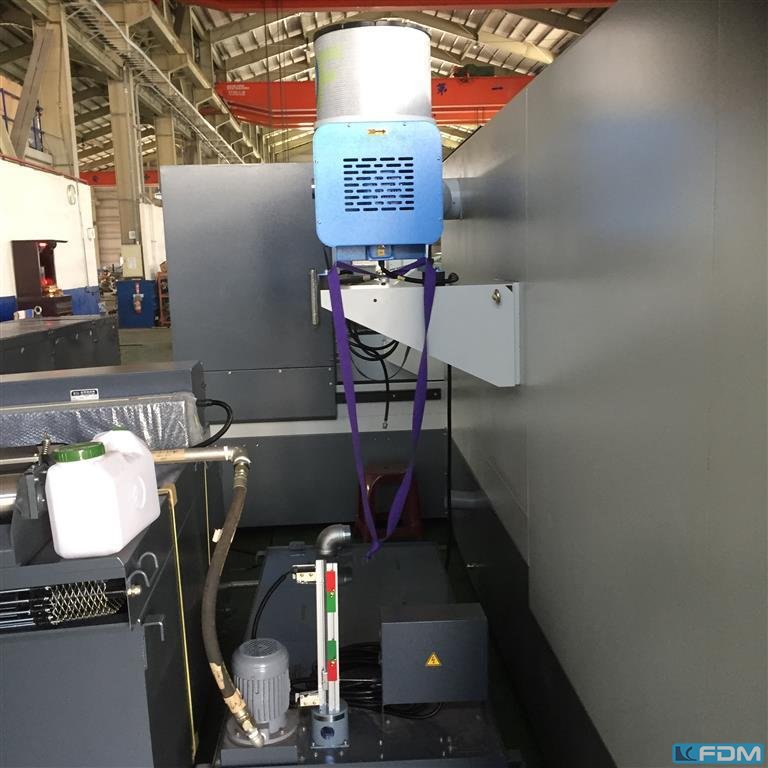

Magnetic & paper filter



Telescope cover for guideways



live center:

2 Stk./pc

set of machine operating tools

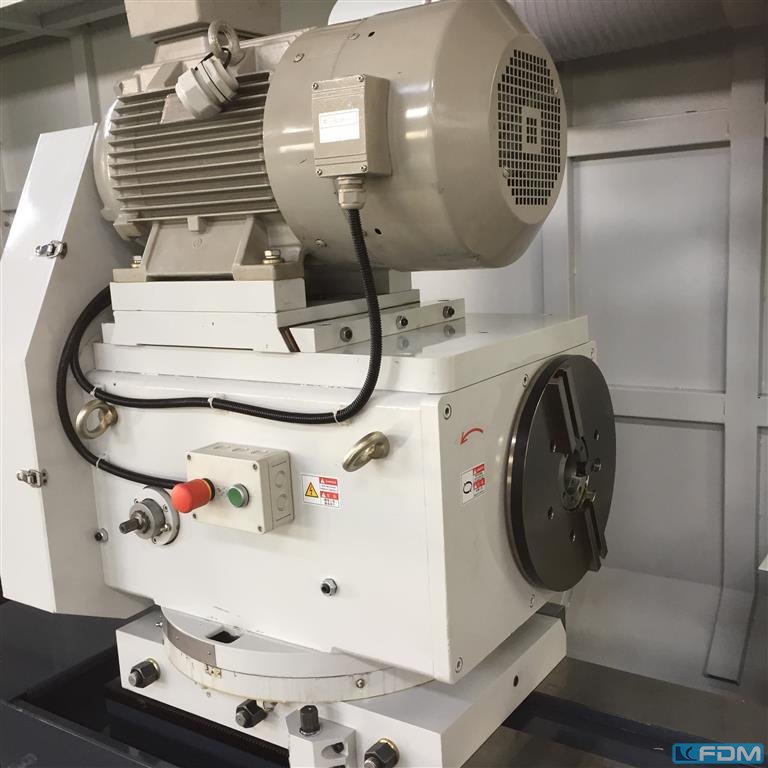

Swivelling headstock



4 jaw chuck



Metric, 400V 50Hz 3 Phase





splash guard



grinding wheel extractor



Description

warranty: None
payment: 100% before loading

steady rests
more options upon request
