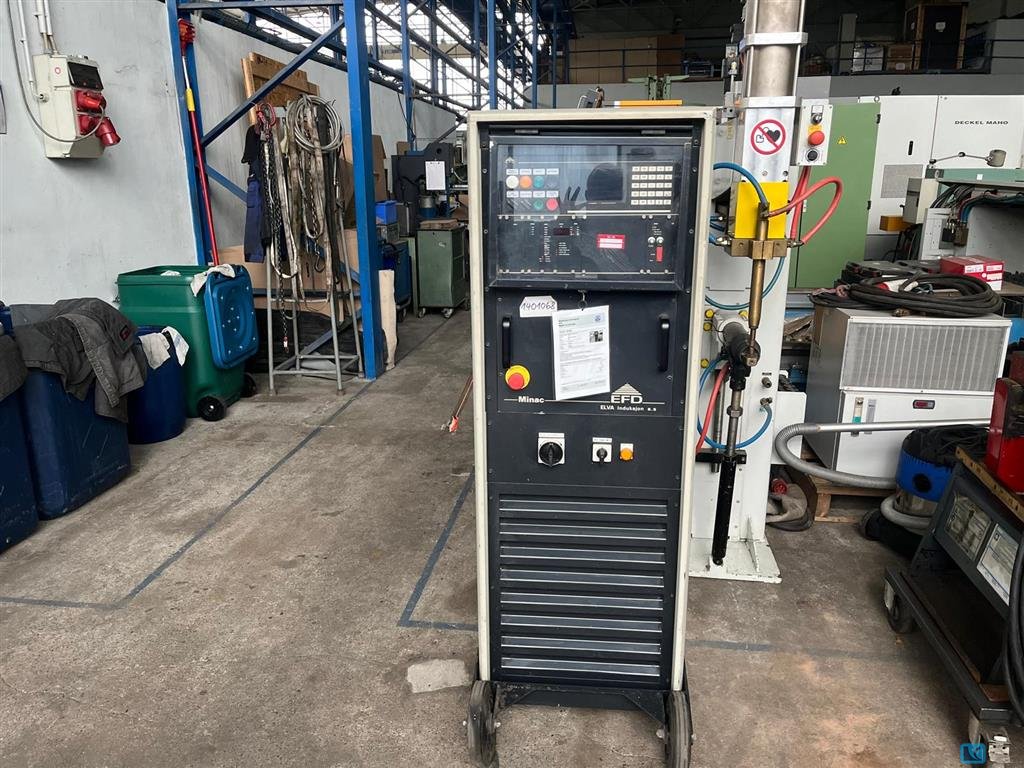

Tool preheating equipment
EFD MINAC 15 m/Cooler
- Stock number:
- 1087-1401068
- Year / Condition:
- ca. 1996
- Control unit:
- conventional
- Country of origin:
- Norway
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 3
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- Heating:
- 15 kW
- rated current:
- 28 A
- Heating capacity:
- 15 kW
- current:
- max.71 A
- cooling water consumption:
- 11 l/min
- frequency range:
- 10-25 kHz
- frequency range:
- 50/60
- voltage:
- 400-480 +-10% V
- current- max.:
- 3020 A
- weight:
- 406 kg
- dimensions L x W x H:
- 1,25 x 0,8 x 1,6 m
Description
The device is a mobile induction heater with medium power (15 kW), suitable for:
Local heating of metals (e.g., bearings, bolts, screws, pipes, sheet metal edges).
Preheating for welding processes
Soldering and shrinking applications
Heat treatments (e.g., tempering or hardening of smaller components).
Due to its frequency range of 10–25 kHz, the device is more suitable for medium to large workpieces, as the penetration depth at these frequencies is higher than with high-frequency systems.
