Details

number of spindles:

15 Stück

number of stations:

8 Stück

control:

PS 2000

total power requirement:

72 kW

weight of the machine ca.:

18,0 t

dimensions of machine:

LxBxH: 2100x3400x2600 mm

dimensions electric cabinet:

Nr.1: LxBxH: 1000x850x2300 mm

dimensions electric cabinet:

Nr.2: LxBxH: 1250x850x2500 mm

dimensions electric cabinet:

Nr.3: LxBxH: 1000x850x2100 mm

dimensions electric cabinet:

Nr.4: LxBxH: 1000x500x2350 mm

space requirements approx. LxWxH:

5,0 x 6,2 x 3,8 m

Description

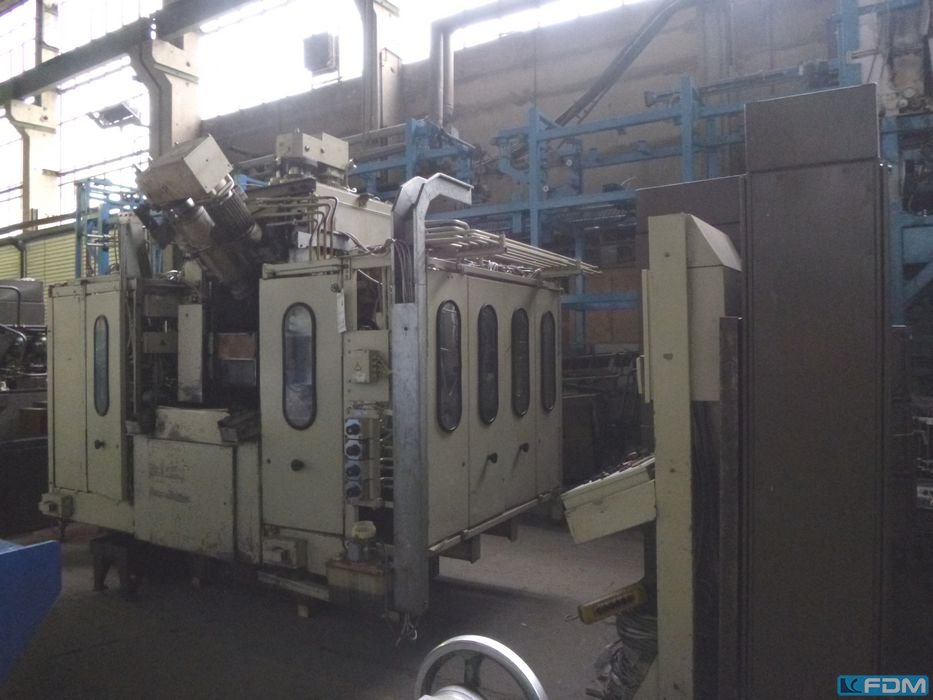

TRANSFER MACHINE with 3 work station and 15 drill & mill spindles
for example the production of a high quantity of armatures

Other technical information about the machine:

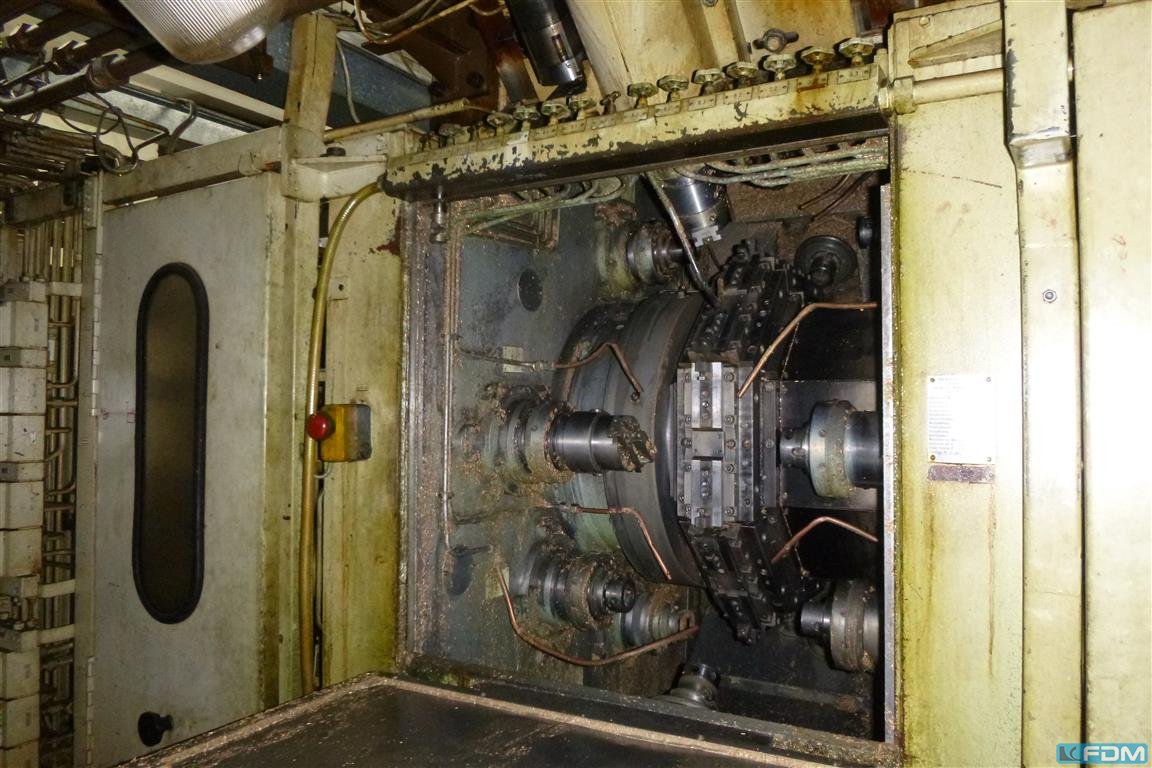

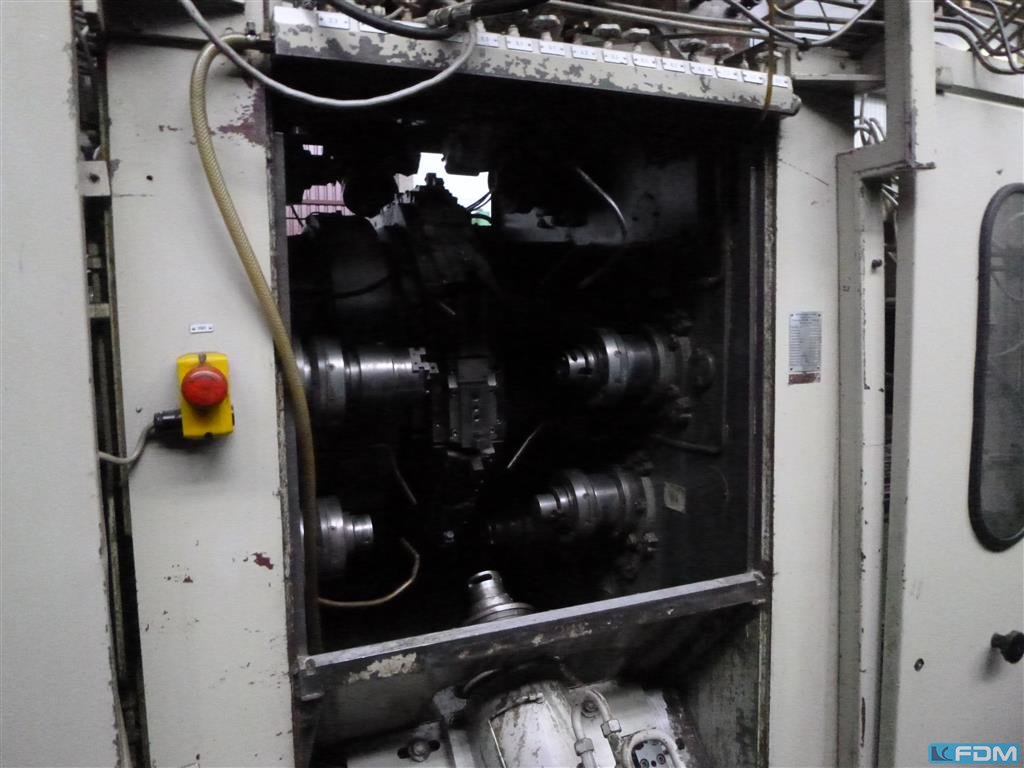

- workpiece carrier: workpiece holding barrel Ø 800mm for 8 work piece - clamping station, cycle time of 10 sec.
- drilling and milling unit: SK 40 intake; spindle stroke 125 mm; standard feed rate 1m/min; rapid traverse feed rate 4m/min; RPM max. 2240 rpm

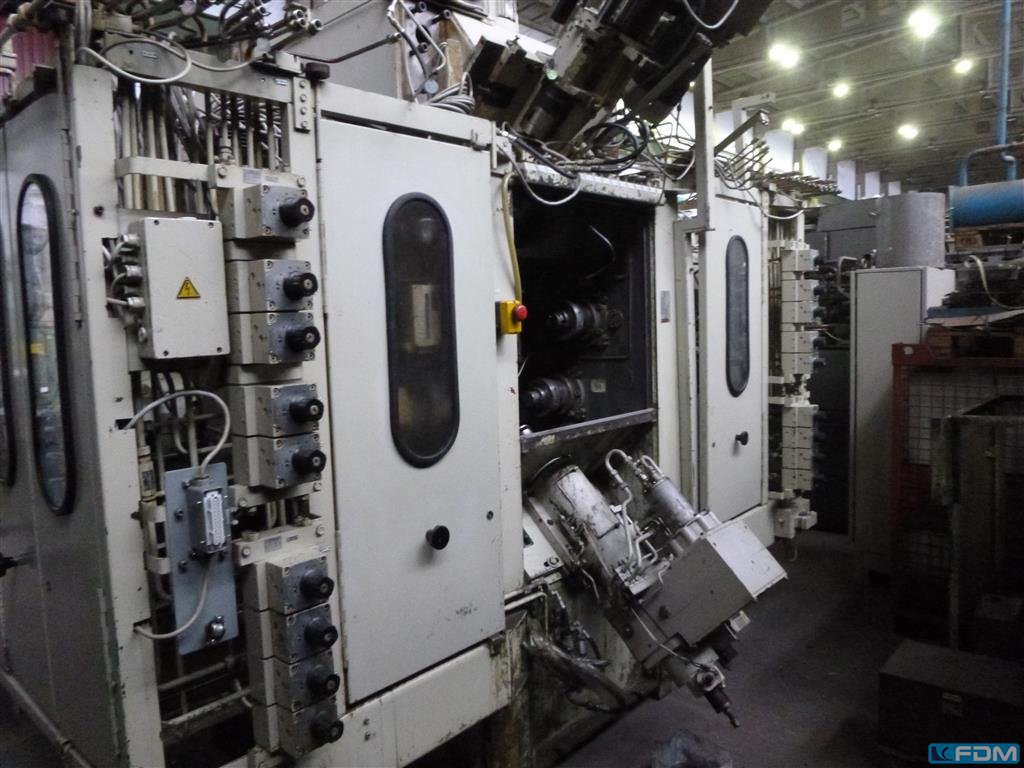

- left 3x drill & mill spindle and 2x thread cutting spindle

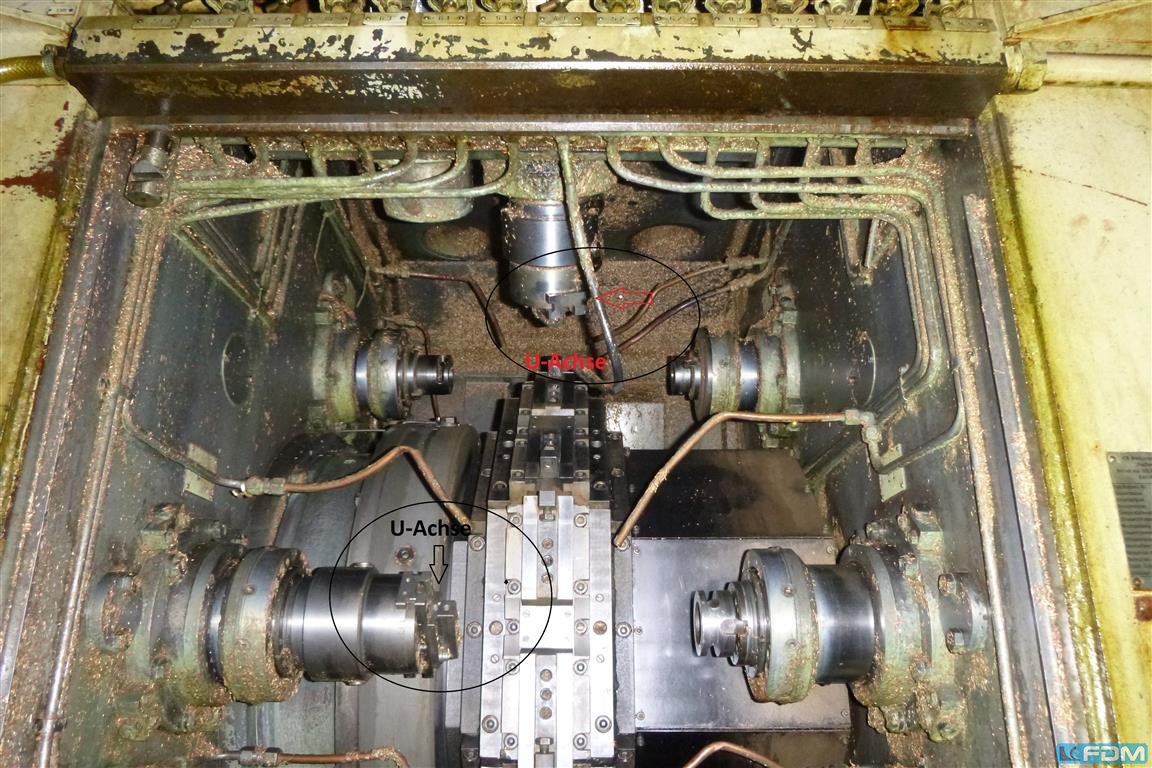

- right 2x drill & mill spindle and 2x thread cutting spindle and 1x U-Axis such as 2x thread cutting spindle slidable, 2x drill and milling spindle from that one slideable and 1x U-axis slideable
- 1. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 125mm; RPM 35.5 - 900 rpm; right/left
- 2. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 80mm; RPM 45 - 560 rpm; right/left

Equipment:
- 2 hydraulic aggregate
- chip conveyor
- belt filter produced by Filtertechnik Gera (fleece band 430mm)

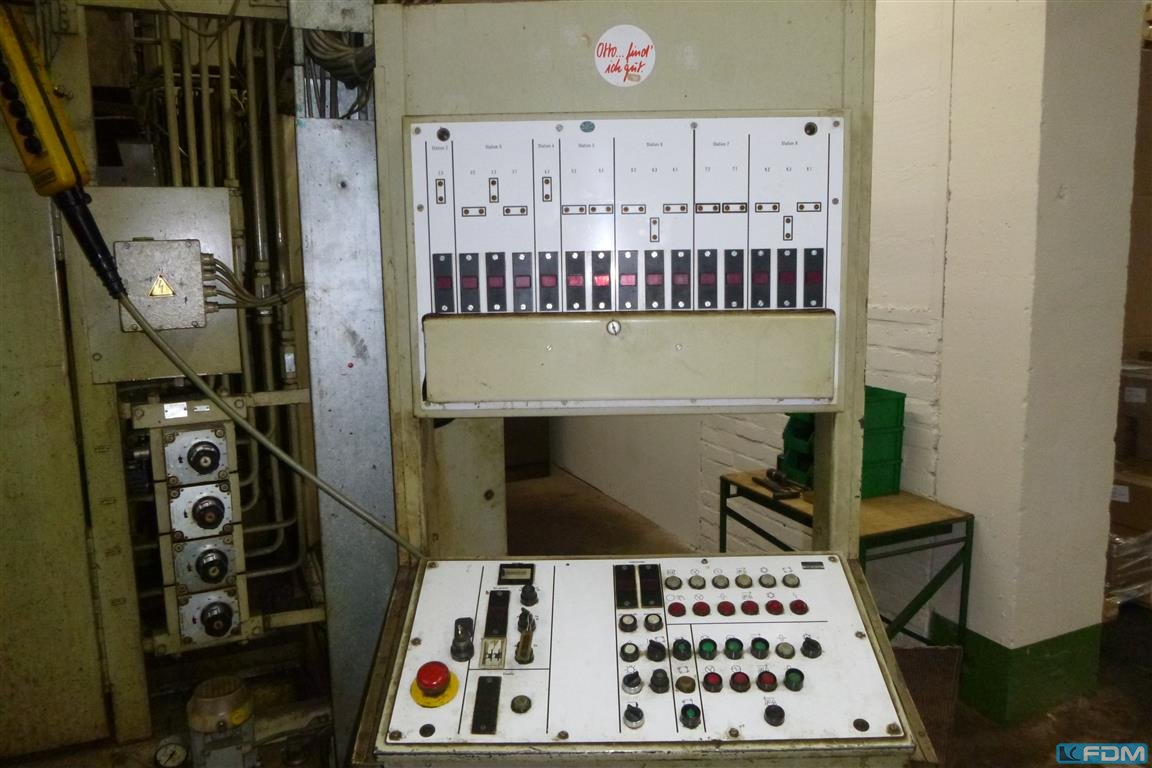

- control panel
- manual switch

i.D.
