Machining Center - Vertical

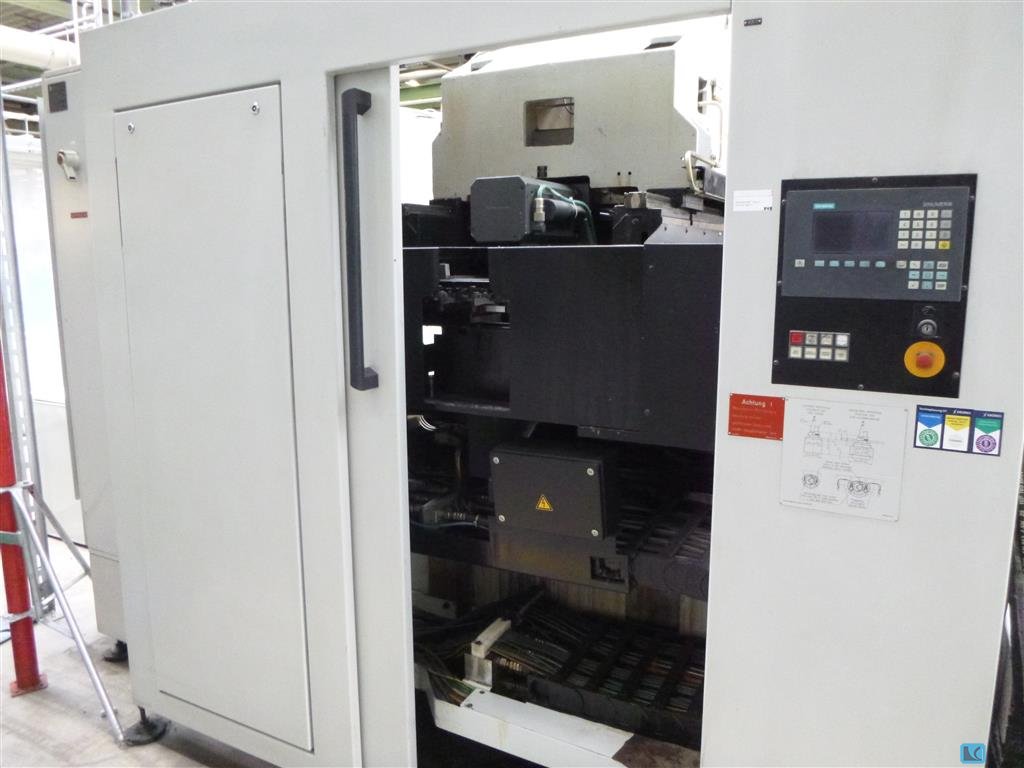

Stama MC 535/TWIN
- Stock number:
- 1087-0200013
- Year / Condition:
- 1999
- Control unit:
- CNC (Siemens 840D)
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 5
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- x-axis:
- 800 mm
- y-axis:
- 500 mm
- z-axis:
- 510 mm
- control:
- Siemens 840D
- number of spindle speeds:
- 36 - 10000 U/min.
- tool changer with:
- 42 tools
- tool clamping:
- 12000 N
- tool taper:
- SK40
- max. torque on the spindle:
- 102 Nm
- feed continuous:
- X/Y/Z: min./max.: 1/10000 / 1/10000 / 1-10000 mm
- rapid traverse:
- X/Y/Z: 40/40/40 m/min
- voltage:
- 400 / 50 V / Hz
- total power requirement:
- 70 kW
Description
HIGH PERFORMANCE DRIVING COLUMN - MACHINING CENTER
Coolant system with paper band conveyor
chip conveyor make Flender MC535/x=800
hydraulic aggregate make HAWE
Loading system Promo
cutting values:
max. milling capacity=400mm
max. drilling Ø 50mm
max. thread Ø M30
1 motor each for main spindle 1 + 2:
make Kessler; 21 kW; speed 15.000 rpm.
1 motor each for X / Y / and Z-axis:
Make Siemens; for X/Y axis 14.0 Nm and Z axis 17.6 Nm torque; speed 3000 rpm.
