Details

plate width:

2050 mm

plate thickness:

2 mm

distance between columns:

2400 mm

knife length:

2050 mm

stroke adjustment:

oben 250 mm

adjustment of stroke:

unten 100 mm

bending angle max.:

180 °

back gauge - adjustable:

mit Aufnahmeschienen mm

working pressure:

5,0 MPa

total power requirement:

2,2 kVA

weight of the machine ca.:

2,3 t

dimension machine approx.LxWxH:

3,5 x 1,0 x 2,2 m

dimensions of hydaulic:

0,75 x 0,55 x 0,80 mm

Description

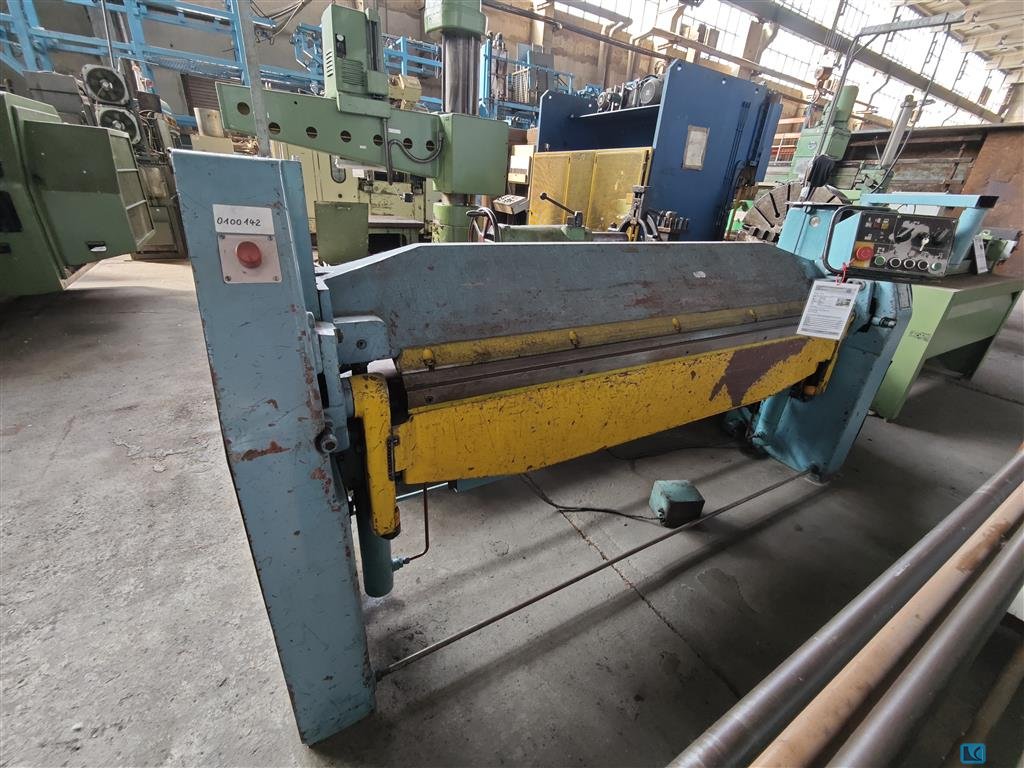

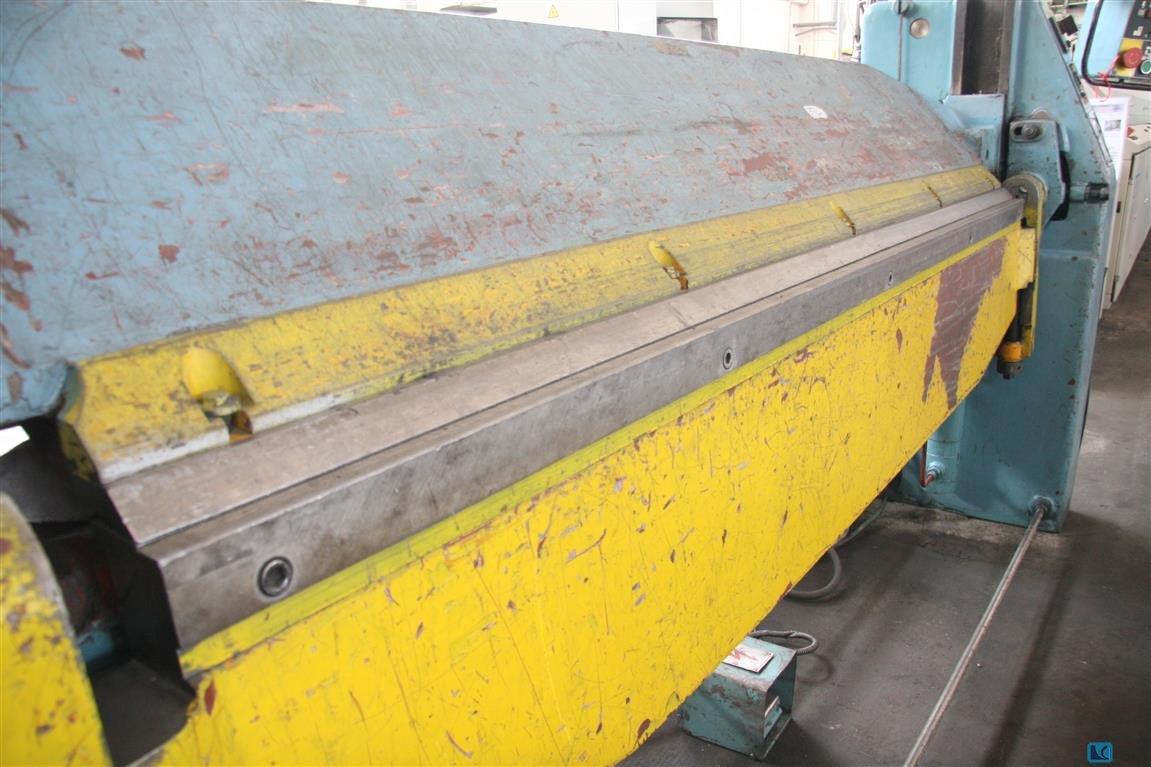

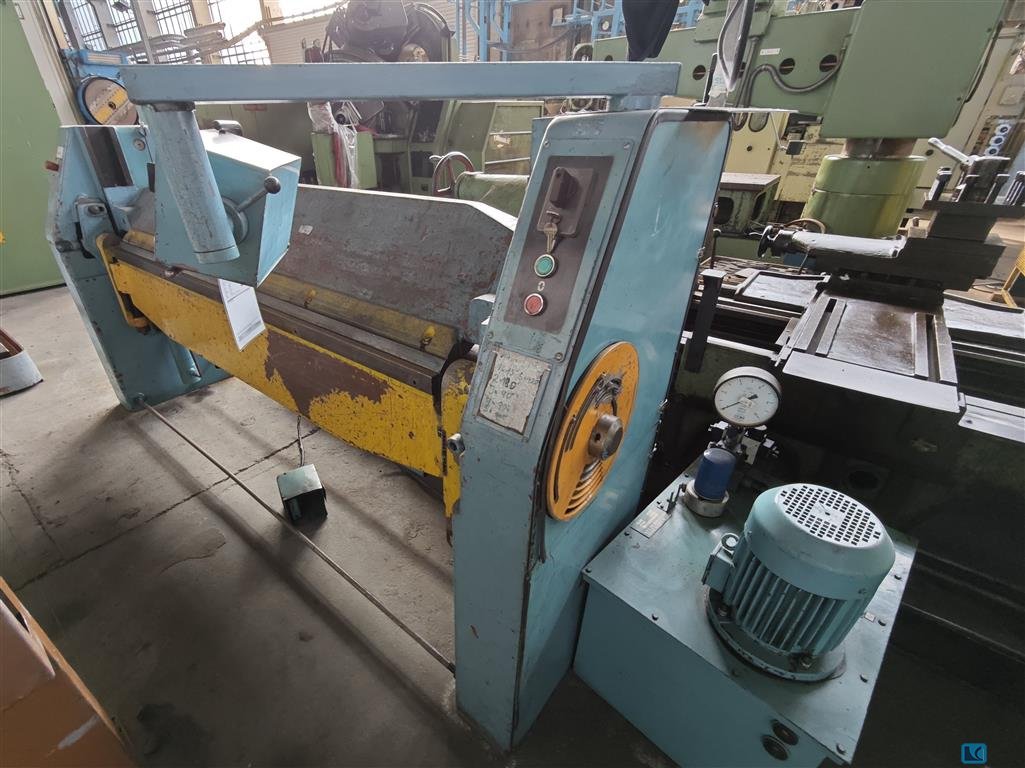

HYDRAULIC FOLDING MACHINE

operation via control panel with boom as well as via foot switch
bending angle: sharp bending = up to 135° with 2mm sheet metal
stroke of the upper beam = 250mm
stroke of the lower beam = 100mm
bending jaw stroke = 100mm
bending gap = 7mm with scale display
