Details

x-travel:

630 mm

y-travel:

600 mm

z-travel:

650 mm

control:

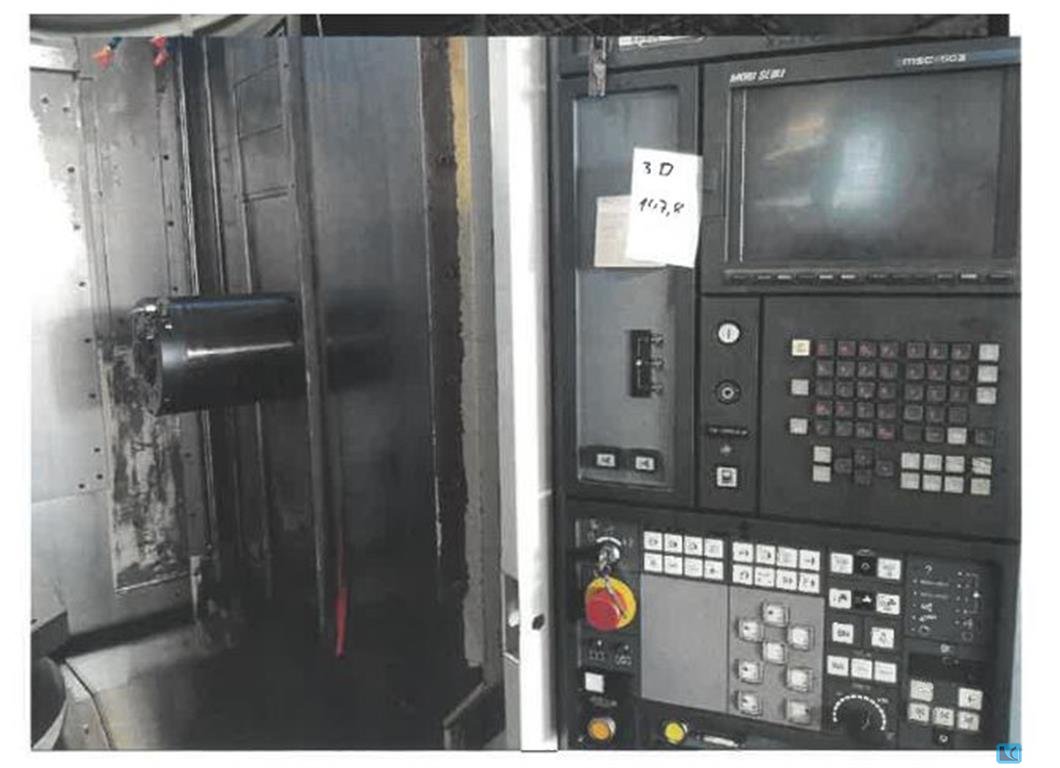

MSC 502 (Fanuc 16)

Spindle RPM:

12000 1/min

spindle drive:

22 / 18,5 kW

rapid travel x/y/z:

32 m/min

Pallet dimension:

500x500 mm

numbers of pallets:

2

table load:

0,5 t

working diameter:

max. 610 mm

Number of tool station:

60 BT40

max. tool length:

360 mm

max. tool weight:

12 kg

tool changing time:

1,3 sec

B-axis positioning (non continuous):

1

total power requirement:

50 kVA

weight of the machine ca.:

14 t

dimensions of the machine ca.:

3,3 x 5,8 x 3,2 m

Accerories

Chip conveyor



spindle load monitor:

Typ C

Coolant gun



Chamfering and corner rounding



Tool life management

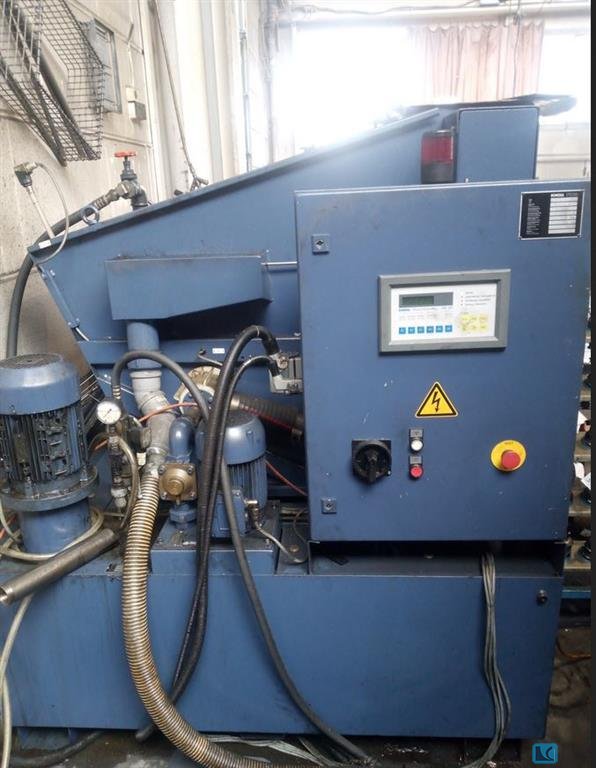

Interface for coolant through the spindle



Description

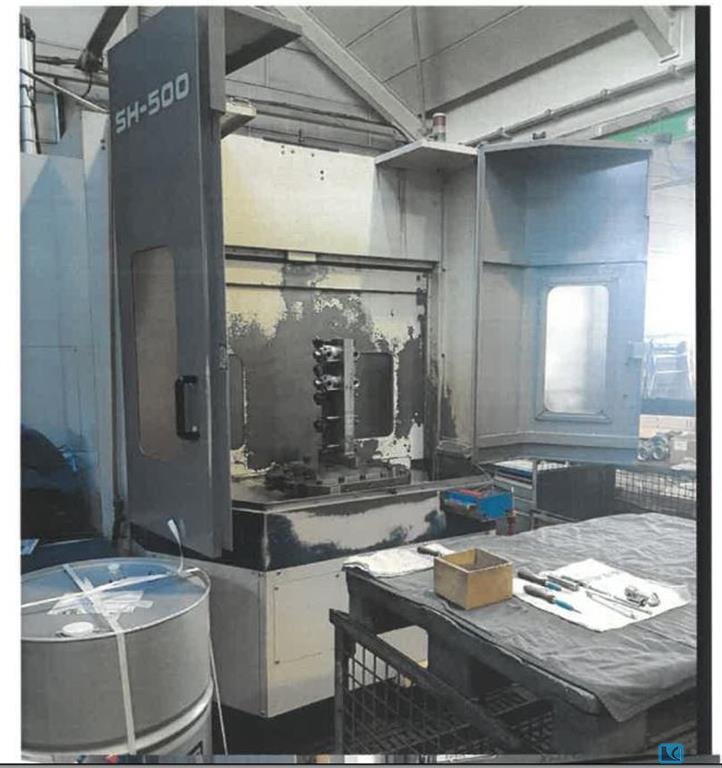

This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options:
ATC 60 tool stations, High pressure coolant trough spindle interface,
