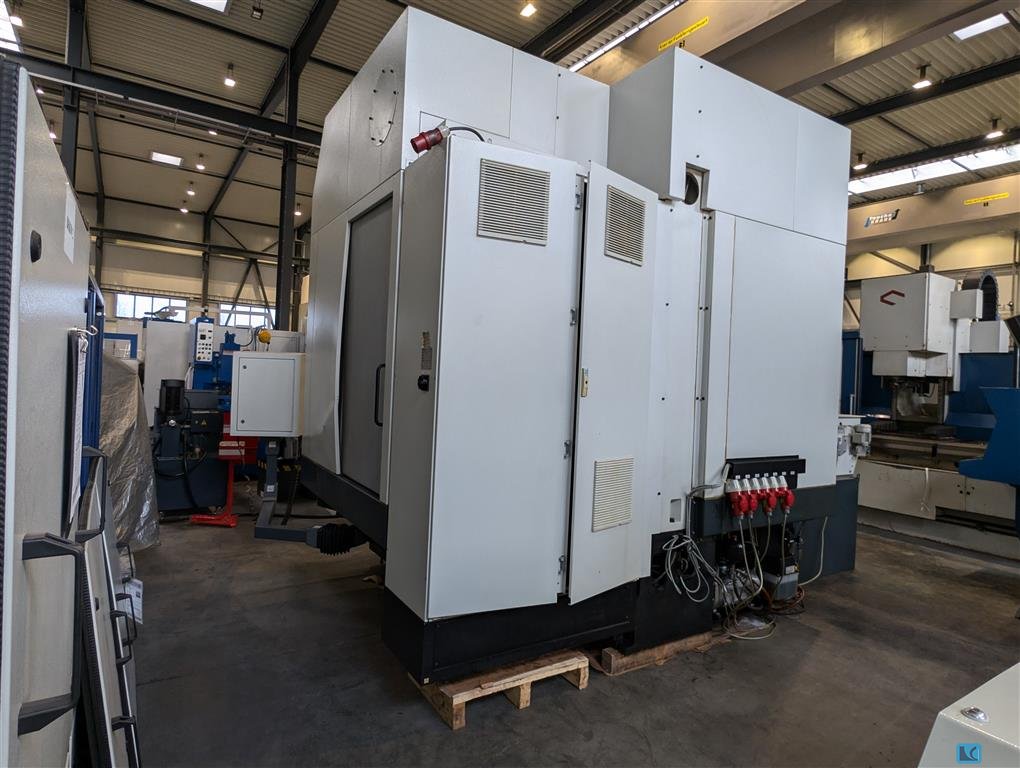

Details

x-travel:

1200 mm

y-travel:

600 mm

z-travel:

800 mm

distance spindle /table:

125 / 925 mm

control:

Heidenhain iTNC 530

number of spindle speeds:

9000 steples U/min.

max. torque on the spindle:

max.82 Nm

switched on hours:

43363 h

spindle hours:

16319 h

tool changer with:

24 Plätze

table-size:

1250 x 630 (Kreuzschiebetisch) mm

max. table load:

1000 kg

spindle taper MT:

SK40

spindle drive:

13 kW

feed range:

X/Y/Z: 40/40/30 m/min

rapid traverse::

X/Y/Z: 40/40/30 m/min

feed power:

X/Y/Z: 7/7/16 kN

interface:

ja

total power requirement:

13 kW

Weight approx.:

8,0 t

dimension coolant device:

ca. L:1,25 x B: 0,7 x H: 1,56 m

dimension machine approx.LxWxH:

2,4 x 3,0 x 3,3 m

Description

Main spindle: Spindle head DIN 69871, SK 40/DIN 69 871-A40 and pull stud DIN 69872
Drive technology via ball screw drive
Equipment:
Compact filter/coolant high-pressure system Knoll
Chip conveyor/scraper belt conveyor 300mm

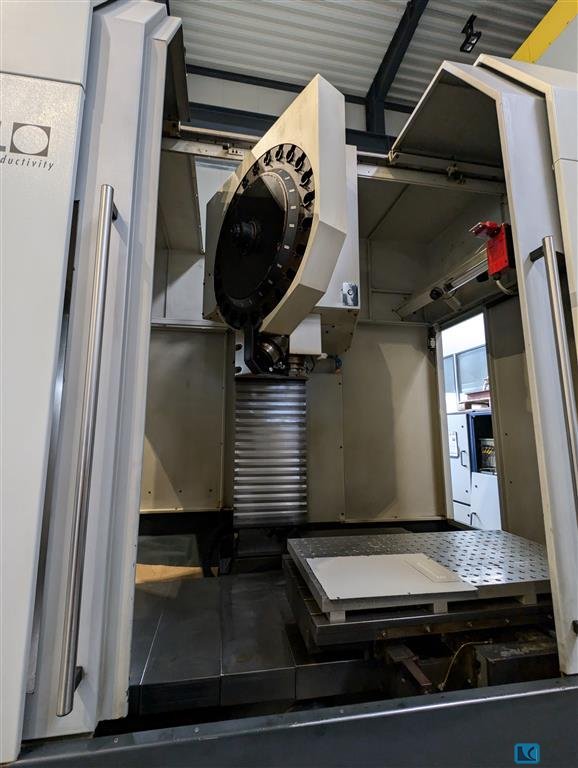

Tool changing unit with disk magazine for 24 tools
Electronic handwheel
Operation via Heidenhain control panel
Accessories:

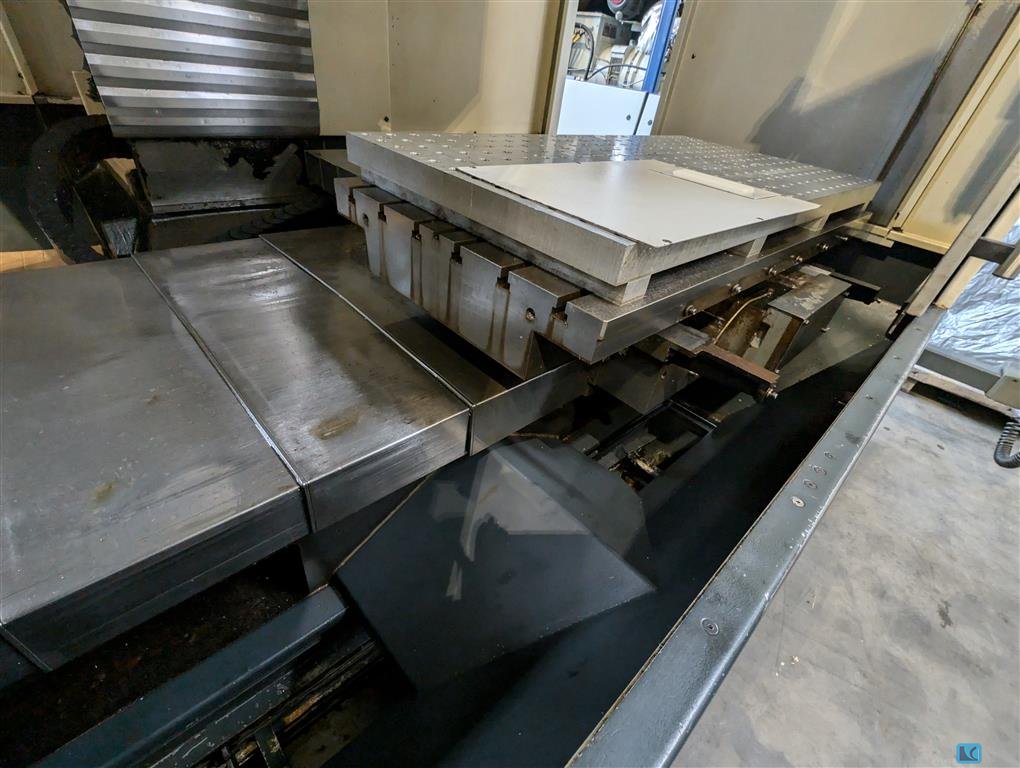

AL plate 1200x600x45mm with holes Ø 15mm
