Description

-New-

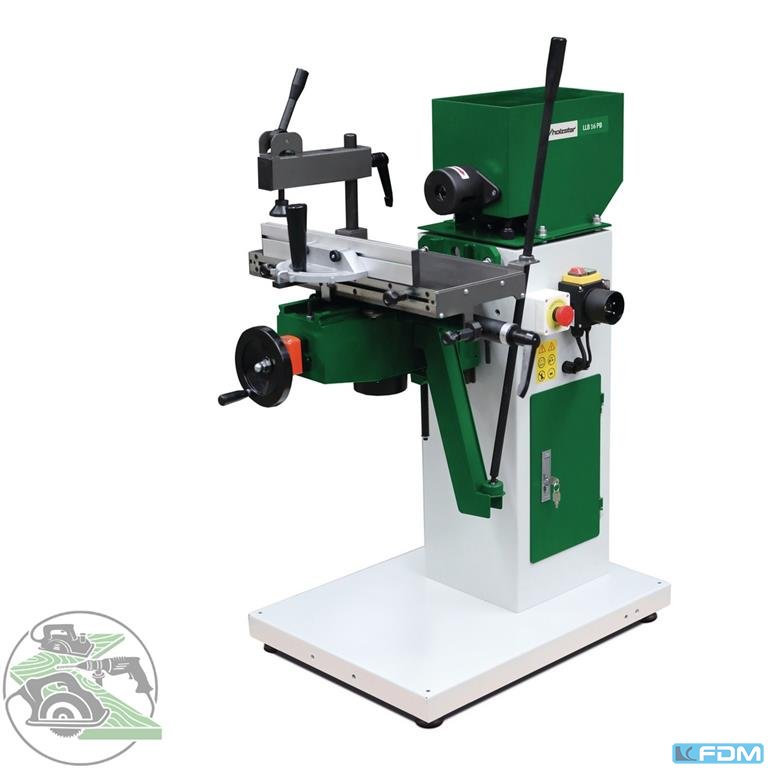

Row drilling by dowel drilling
device with grid division
16/20/22/32 mm possible
-Wescott Drill Chuck 0 - 16 mm as standard
- Powerful engine
-Easy one-hand lever operation of the
Work tables for fast and precise
Drill
Roller guide allows the precise
Procedure of the work table
-Come, exact table height adjustment over
a handwheel with numeric display
-Installed height of the work table
additionally readable via scale
- An eccentric tensioner for secure
Workpiece fixing included
Angle stop adjustable on both sides by 60 °
Substructure with large, lockable
Tool compartment equipped

Technical specifications:
Drilling width 300 mm
Drilling depth max. at 90 ° 140 mm
Working height adjustment 150 mm
Work table lengthx width 500x207 mm
Tool holder Wescott drill chuck
Spanndurchm. of the tool 0-16 mm
Spindle speed 2850 min
Recording power 2.2 kW
Supply voltage 230V / 50Hz
Exhaust nozzle 100 mm D.
Lengthxwidthxheight 905x710x1230 mm
Weight 108 kg
