Details

turning diameter:

1010 mm

turning length:

2000/3000/4000/5000 mm

control:

Siemens/Fanuc/Fagor

max. swing over slide:

718 mm

bed width:

500 mm

spindle taper:

A2-11 (opt. A2-11, A2-15, A2-20) ASA

spindle speeds:

0-1400 (opt. 0-1000, 0-750, 0-560) 1/min.

spindle bore:

130 (opt. 155,230,310) mm

transmission ratio:

2

feed range:

0-8500 (Z-Achse); 0-6000 (X-Achse) mm/min

rapid traverse x/z:

7,5/10 m/min

tailstock quill diameter:

120 mm

tailstock quill stroke:

300 mm

taper of tailstock quill:

6 MK

power requirement:

17 kW

weight of the machine ca.:

6400/7600/8800/10000 kg

dimensions of the machine ca.:

4600/5600/6600/7600 x 2270 x 2290 mm

gem. 8605 DIN

Accerories

automatic tool changer:

8-fach (Schaft: 32x32mm und Bohrstange:Ø50mm), Hersteller Duplomatic oder Barufaldi mit 4 Haltern

CNC controller:

Siemens 828D/Fanuc 0iTF/Fagor 8060T

CE-design



servo spindle motor



coolant system



European electric



automatic lubrication system



electric handwheel



Machine semi-cover





tools:

1 Satz

Iron casting for machine bed and foot



signal lamp



LED work light



gear box:

von Barufaldi, 2-stufig

spindle:

Hochpräzisionsspindel

electronic hand wheel



levellig elements



Description

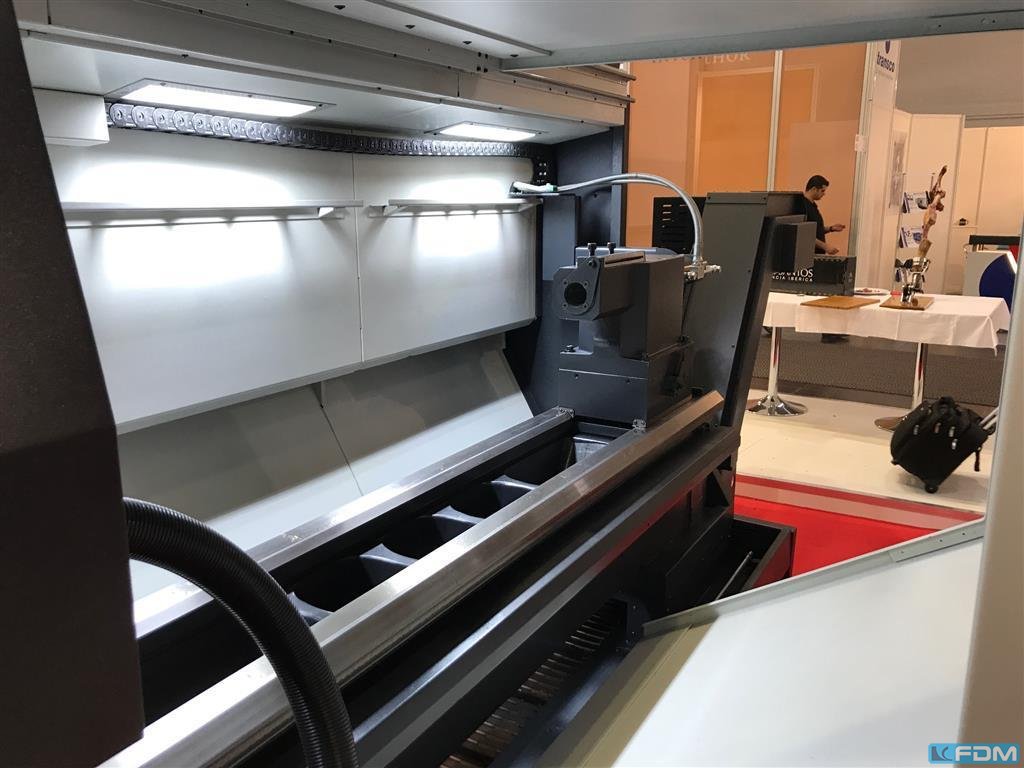

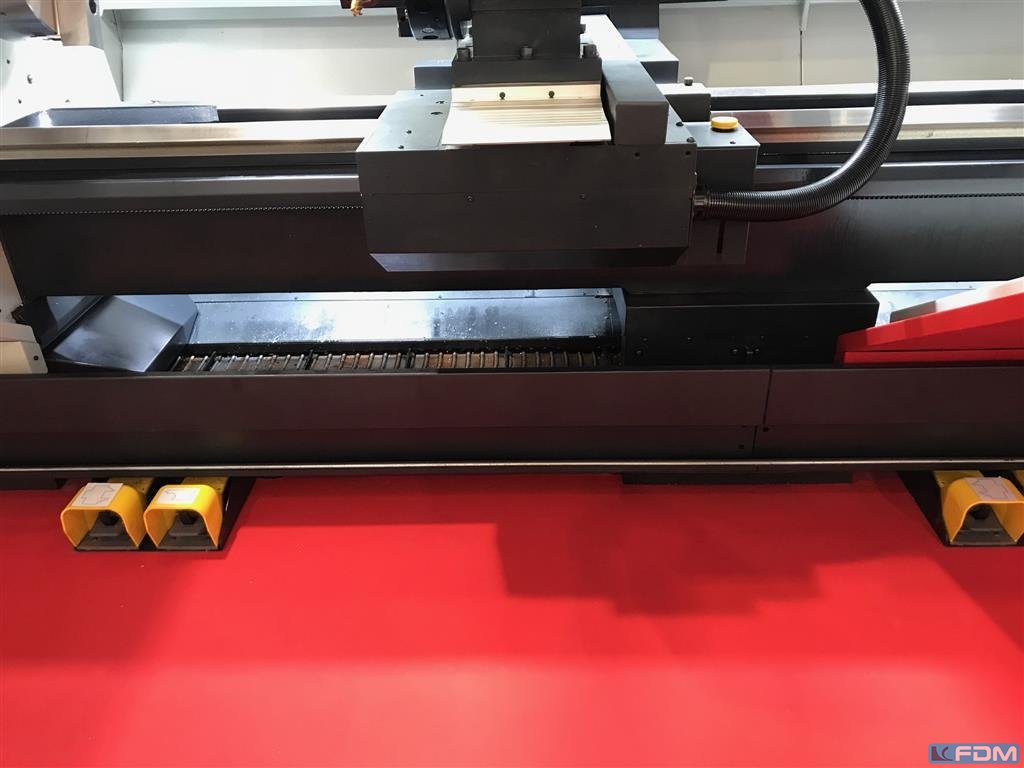

New CNC lathe KRAFT ST 500/3000 with Fanuc Oi TD

Made in Europe

For more information please see the attached documents

c-axis
y-axis
different chucks and faceplates
chip conveyor and trolley
hydr. tailstock quill

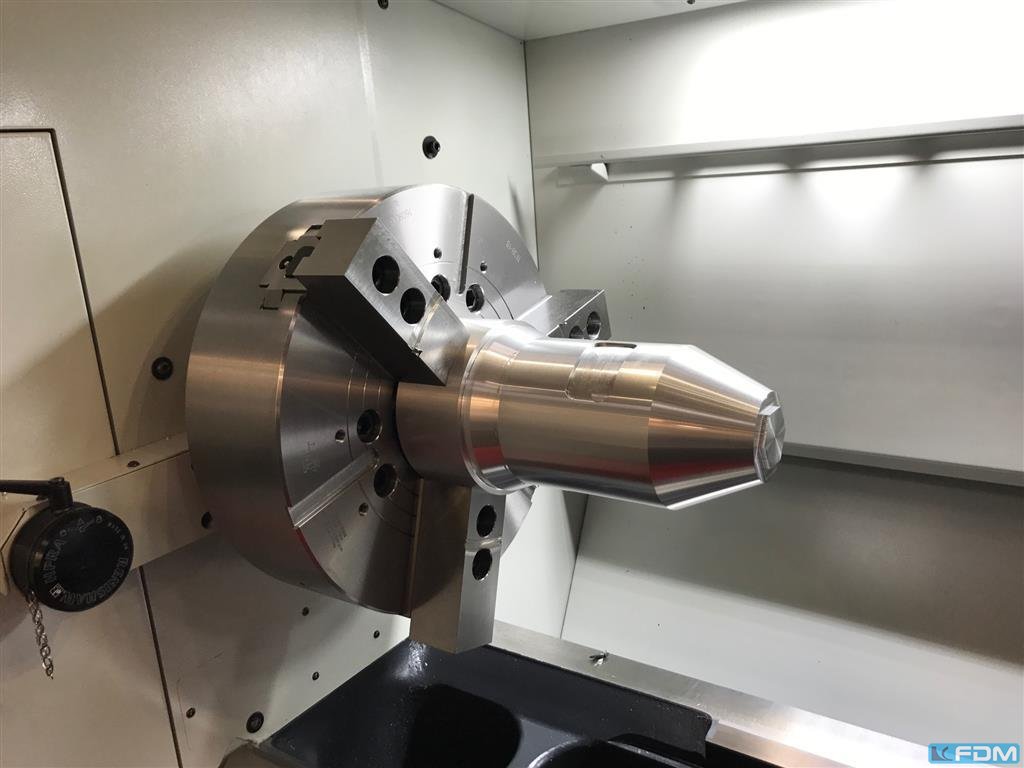

hydr. chuck
CNC controls from
steady rests
Spindle bore
tool measuring system
Futter auf der Spindelrückseite
boring bar and holder
