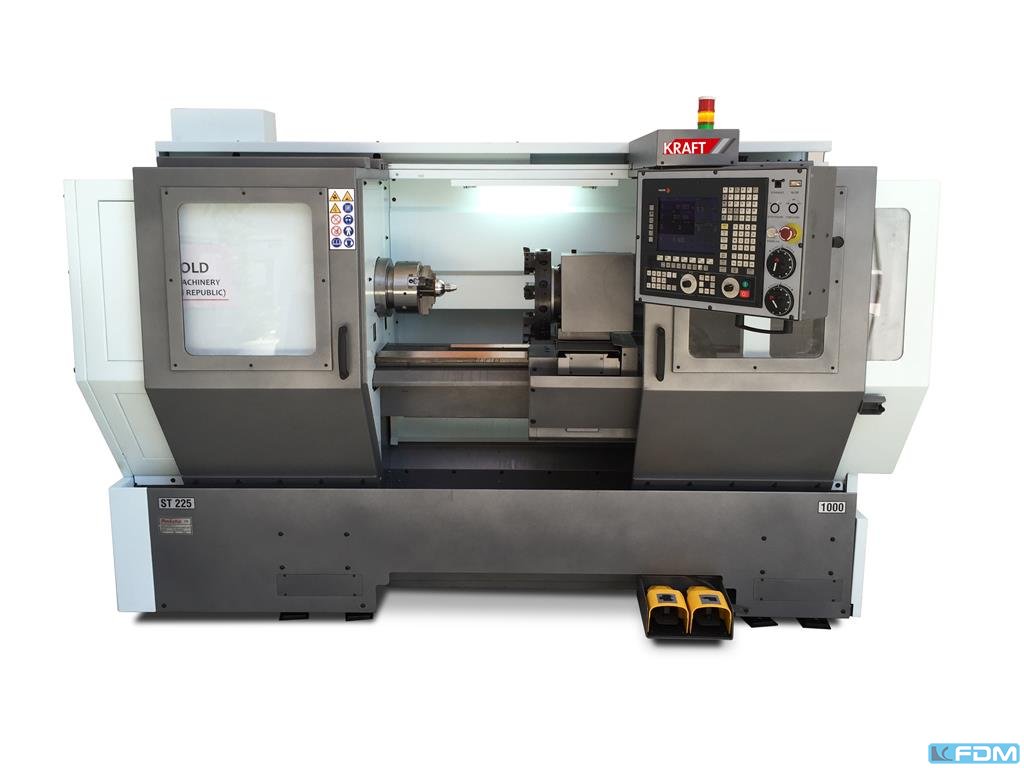

CNC Lathe KRAFT ST 180/750 - GK Werkzeugmaschinen GmbH , Stockstadt

Details

turning diameter:: 360 mm
turning length:: 1000 mm
control:: Fanuc Oi-TF
turning diameter over bed slide:: 300 mm
max. swing over slide:: 190 mm
bed width:: 250 mm
spindle taper:: A2-5
spindle speeds:: 0-4000 1/min.
spindle bore:: 42 mm
tailstock quill diameter:: 58 mm
tailstock quill stroke:: 180 mm
taper of tailstock quill:: 4 MK
max. length of work piece:: 1000 mm
rapid traverse x/z:: 15/12 m/min
power requirement:: 7,5 kW
weight of the machine ca.:: 1200 kg
dimensions of the machine ca.:: 2250x1115x1630 mm

Accerories

automatic tool changer:: 8-fach
CNC controller:: Fanuc Oi-TF
CE-design
tools:: 1 Satz
foundation bolts:: 1 Satz
Machine work light
coolant system
automatic lubrication system
European electric
electric handwheel
servo spindle motor
Machine semi-cover

chip pan
dead center

Description

New CNC lathe KRAFT ST 285/1000 with Fanuc Oi Mate TD

Made in Europe

For more information please see the attached documents
