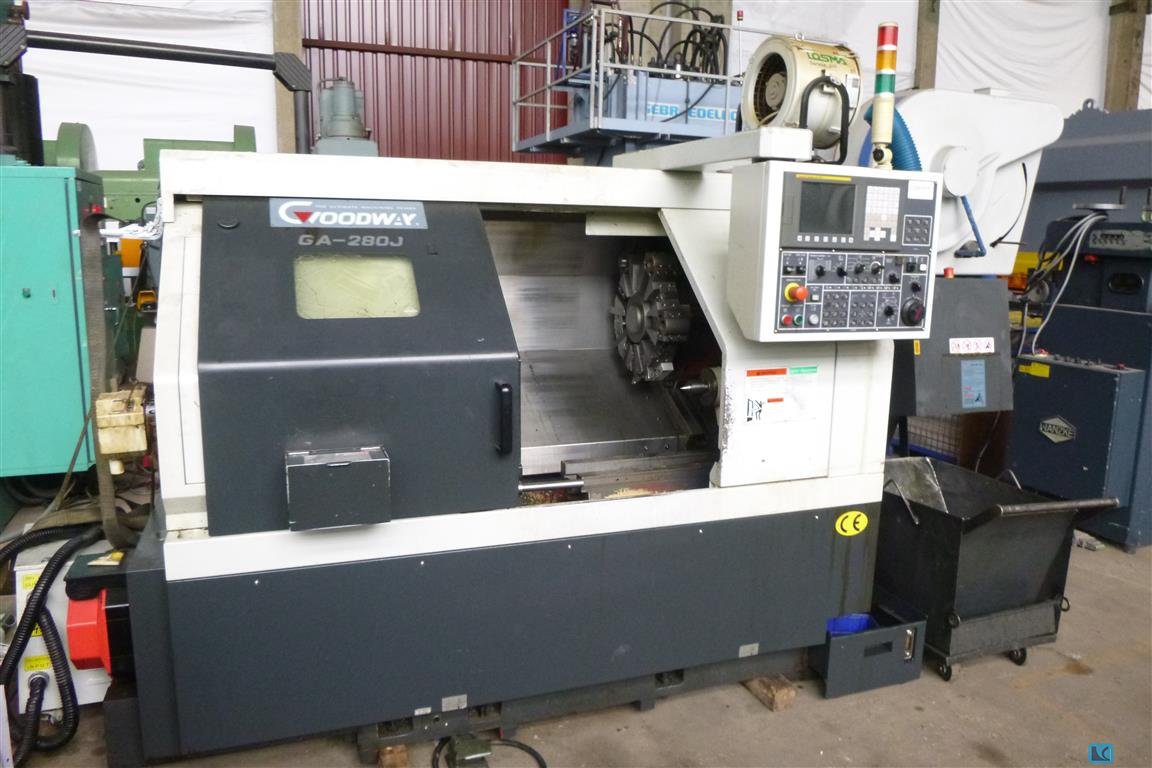

Details

turning diameter over bed:

400 mm

turning dia. over face-slide:

400 mm

turning length:

1155 mm

max. turning diameter:

Ø 350 mm

travel -x axis:

205 mm

travel -z axis:

620 mm

control:

Fanuc OI-TC

max. tool weight:

235 (with Tailstock) kg

spindle passage:

Ø 80 mm

revolution per minute:

0 - 3500 / steples U/min

rapid traverse X-axis:

20 m/min

rapid traverse Z-axis:

24 m/min

tool turret - number of stations:

12

tailstock taper ISO:

MK 4 mm

tailstock quill stroke:

150 mm

total power requirement:

45 kVA

Weight approx.:

4,0 t

dimension machine approx.LxWxH:

2,6 x 1,8 x 2,2 + Transformator m

Description

Equipment:
-3-jaw chuck Ø 260mm with interchangeable jaws inside/outside
-center point in tailstock
-disk turret Ø 480mm
-Hydraulic unit (40 liter capacity)
-Coolant tray (80kg)
-LOSMA exhaust air filter
-Chip tray (30kg)
-Chip conveyor (180kg)

Operation via control panel and foot switch

Accessories
various bar sleeves Ø 78mm (outside)
various clamping rods
1x 4-jaw lathe chuck Ø 200mm TOS
various clamping jaws
various clamping fixtures
